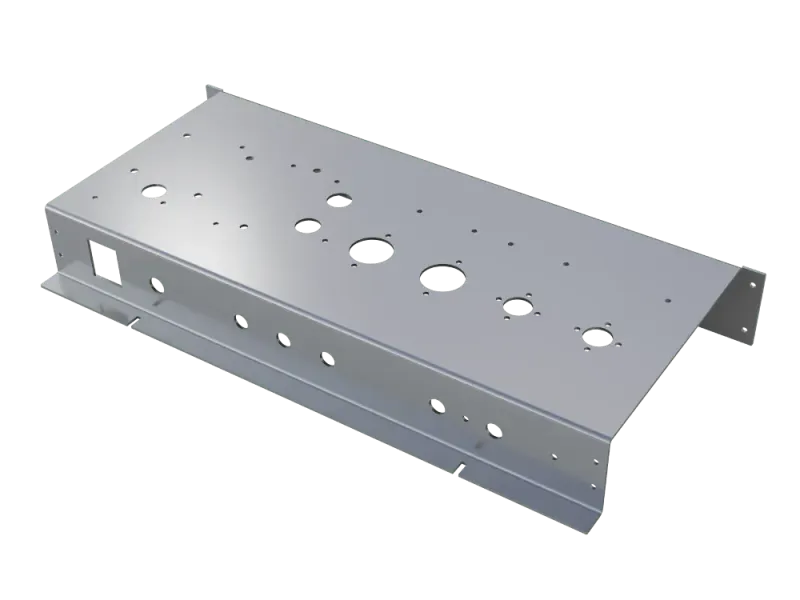

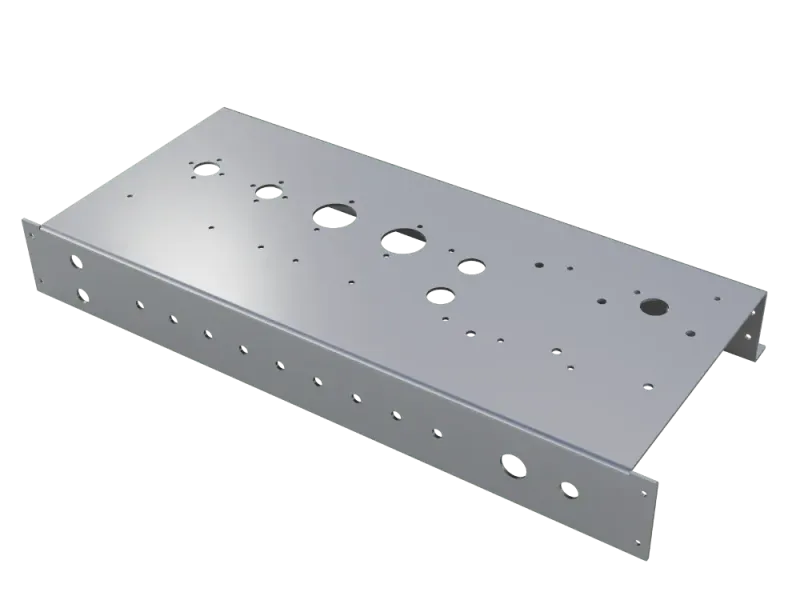

TT-Chassis 036 - B-Series

The way you want it

The headshells of the British Custom Shop Series are getting completly build to your requirements up to a maximum size of 800 x 300 x 300 mm and for the finish you can choose from our large product spectrum of many different sorts of tolex and hardware.

And here's how:
To calculate the headshell size, first determine the dimensions of the amplifier chassis using the data sheet (PDF file below). Based on this data, the headshell size is calculated according to the data sheet. The calculation can also be done using the Excel spreadsheet below.
To order the headshell, the calculated data must be entered into the appropriate data fields on this page, along with the other configuration parameters, and submitted.

Please note:
The customer is responsible for the correctness of the data.
The front panel can be ordered optionally with grillcloth. If no grillcloth is selected than the panel gets covered with the same tolex which is used for the rest of the case.

Specifications

• Size: customer preference
• Cut-Out: customer preference
• Tolex: customer preference
• Hardware: customer preference
• Piping: customer preference
• Weight: ca. 10 kg
• Wood: 15 mm Plywood (Fineply)

Files:

• 3D Drawing (PDF)
• Datasheet (PDF)
• Calculation (XLS)

Empty amplifier housing for TT-Chassis #030
The headshell is made of 18 mm Pine Plywood and can be painted or tolexed by the customers to their own ideas. The front and back panel and the holders are not assembled but included. They can get assembled if needed (woodglue is included).
Hardware, such as corners, handles or feet are NOT included.

Note: the side brackets inside are NOT needed when using chassis 036 - model 2020.

Specifications

• Size: 510 x 240 x 240 mm (Outside)
• Hardware: Screws are included.
• Weight: ca. 4 kg
• Wood: 18 mm Pine Plywood
• Dovetail joints
• Made in Germany

Empty amplifier housing for TT-Chassis #030
The headshell is made of 18 mm Pine Plywood and can be painted or tolexed by the customers to their own ideas. The front and back panel and the holders are not assembled but included. They can get assembled if needed (woodglue is included).
Hardware, such as corners, handles or feet are NOT included.

Note: the side brackets inside are NOT needed when using chassis 036 - model 2020.

Specifications

• Size: 510 x 240 x 240 mm (Outside)
• Hardware: Screws are included.
• Weight: ca. 4 kg
• Wood: 18 mm Pine Plywood
• Dovetail joints
• Made in Germany

BFlex - All-Tube Bass Amp Kit
Set of componentes for building the TT BFlex.
Please visit the >>Project page for more infos about the amp.

INCLUDED:

• Transformers (Power and Output)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

• Type: Toggle Switch
• Version: DPDT, Center OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

• Datasheet

• Studio grade frequency response: 20 Hz. - 20 Khz. (+/- 1 db, ref. @ 1 Khz.) minimum (see individual PDF data sheets below).
• Designed for maximum bandwidth, lowest distortion at +10 dbm power level or less (see individual PDF data sheets below).
• Excellent shielding - Mu metal case.
• Insulated leads 5" (127mm) long minimum .
• Case diameter of 1.25" (31.8mm) and height of 1" (25.4mm).
• Adjustable height case bracket - mounting hole centers are 1.875" (47.6mm).
• Net weight 3 oz.

• Typical Applications: Line to Line, Isolation
• Nominal Impedance Primary: 600 Ω CT
• Nominal Impedance Secondary: 600 Ω CT
• Overall Turns Ratio (Pri. to Sec.): 1:1

Files:

• Datasheet

Universal kit for a small extra power supply which can be used i.e. for switching tasks, relays, optocoupler, LEDs, etc.

• Input Voltage: 230 VAC
• Output Voltage: 12 VDC
• Maximum Output Current: 166 mA

Files:

• Datasheet

Tube-Town EZ-Board #080

• Drills: 6 x 30
• Size: 60 x 300 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

• Datasheet

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 10 mm
• Pack of 4
