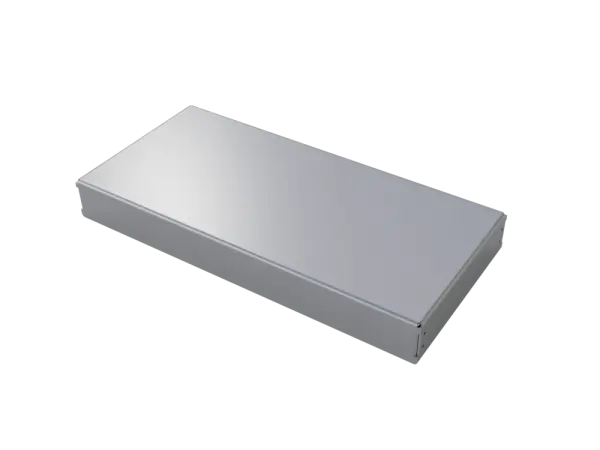

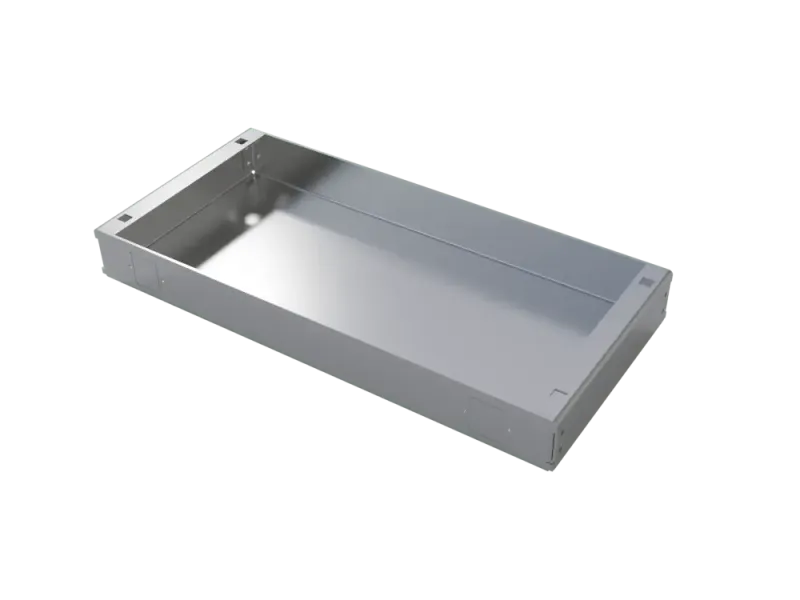

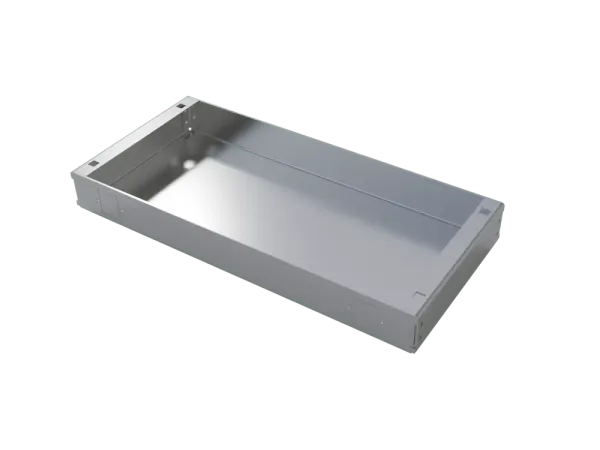

TT-Chassis 076 - 432 x 203 x 51 - Trainwreck Style

• Aluminium Chassis Mesa Width Style
• Size: 523 x 233 / 212 x 60 mm
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

• Datasheet

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

• Faceplate Template

TT-Chassis Aluminium - Typ 002 - Model Version 2019

• Size (Plexi Size):
  • Length: 645 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• Reinforced corners
• Cutouts for Power-Connector
• Made in Germany

• Datasheet

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• RCA Phono socket gold plated with Teflon insulation
• Fixing Hole: 8 mm
• 1 x black
• 1 x red

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• 6,3 mm jack
• stereo
• Installation diameter: 10 mm

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Footswitch
• Version: SPDT latching ON - ON
• max. Rating: 2A / 250 VAC
• Drill Ø: 12 mm
• Termination Style: solder-lugs

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw
