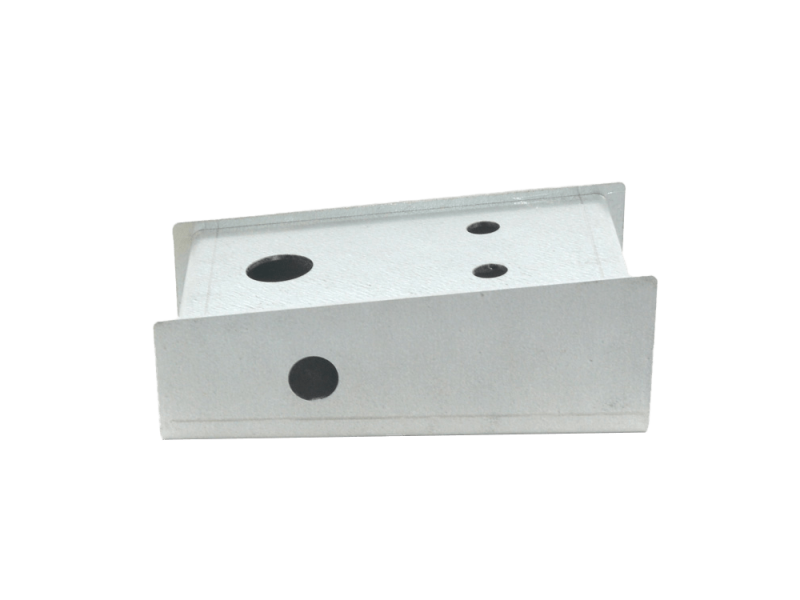

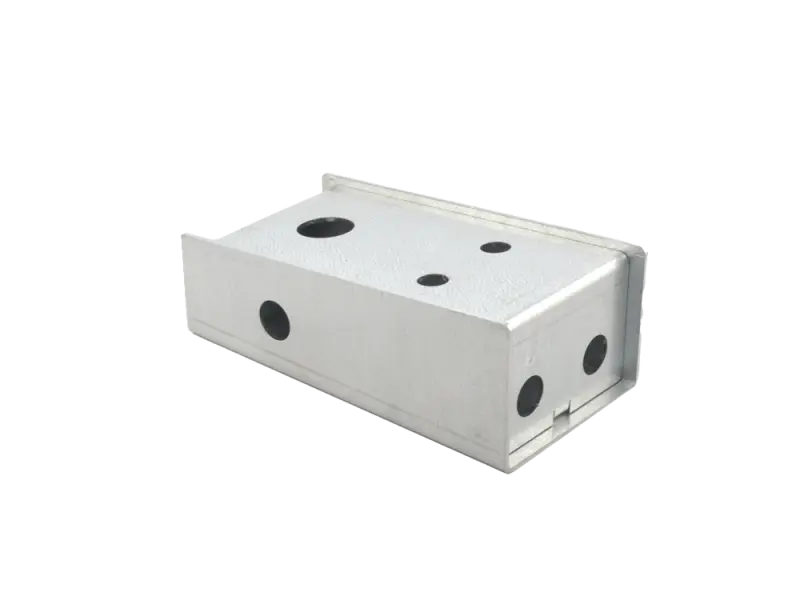

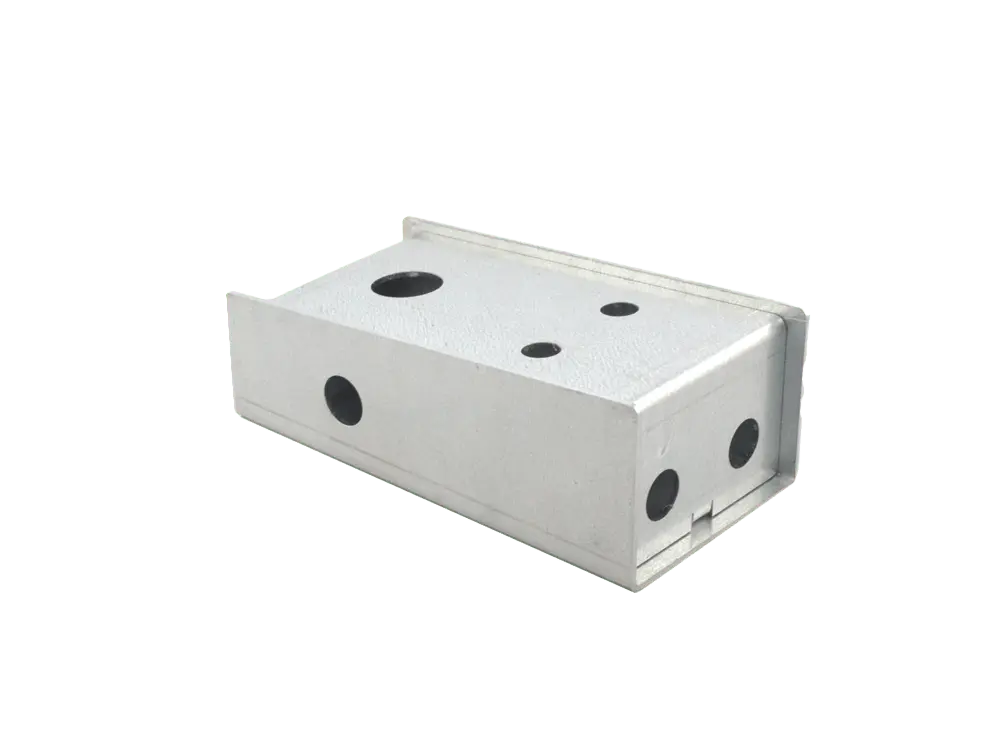

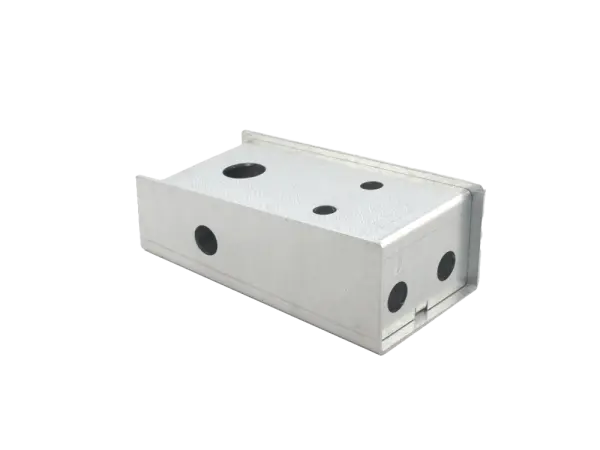

TT-Chassis 056 - STOMP/2

• Type: Footswitch
• Version: 3PDT
• Rating: 2A / 250VAC, 4A / 125VAC
• Termination Style: solder-lugs
• LED ring
• LED colour: blue
• LED: U=2,2 - 2,4V, I = ca. 7-10mA
• Mounting hole: 17,2 mm
• Lifetime: > 10000 cycles

• Type: Footswitch
• Version: 3PDT
• Rating: 2A / 250VAC, 4A / 125VAC
• Termination Style: solder-lugs
• LED ring
• LED colour: red/blue
• LED: U=2,2 - 2,4V, I = ca. 7-10mA
• Mounting hole: 17,2 mm
• Lifetime: > 10000 cycles

• Tube-Town universal basic pcb for stomp-boxes
• fits TT chassis type 056 - STOMP/2
• Size: 57,1 x 54,6 mm
• Material: 1,6 mm FR3, black

• Tube-Town universal basic pcb for stomp-boxes
• fits TT chassis type 056 - STOMP/2
• Size: 57,1 x 54,6 mm
• Material: 1,6 mm FR3, black

• Type: Footswitch
• Version: 4PDT Latching
• Rating: AC 125 V / 4 A  - AC 250 V / 2 A
• Contact Resistance: 20mΩ max.
• Insulation resistance: DC 500V  100MΩ min.
• Dielectric strength: AC 1500 V  1 minute
• Operating Life: 20.000 cycles
• Termination Style: solder-lugs

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size:
  • Ø: 20 mm
  • H: 12,5 mm
• Mounting: Set-Screw

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Spot welded heavy duty construction chassis.
• Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
• Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
• Hardware not provided, please order separately
• Size: 254 x 152 x 51 mm
