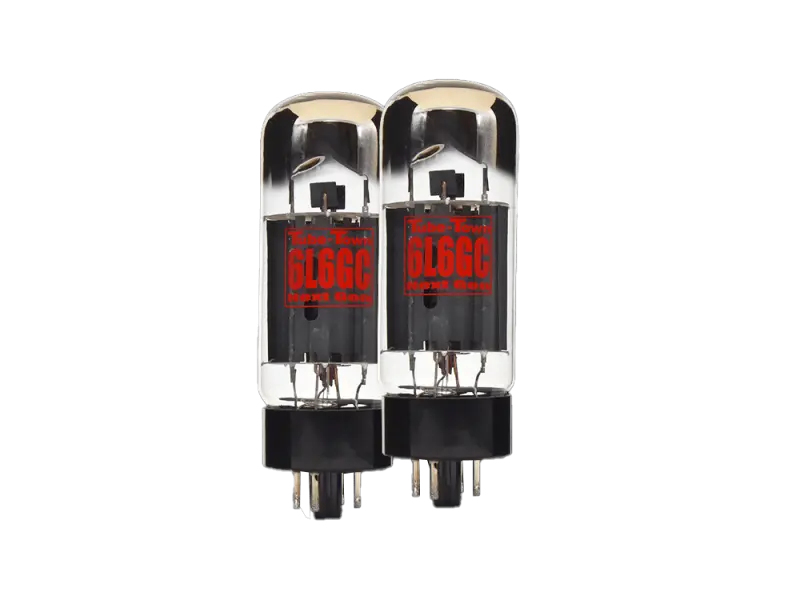

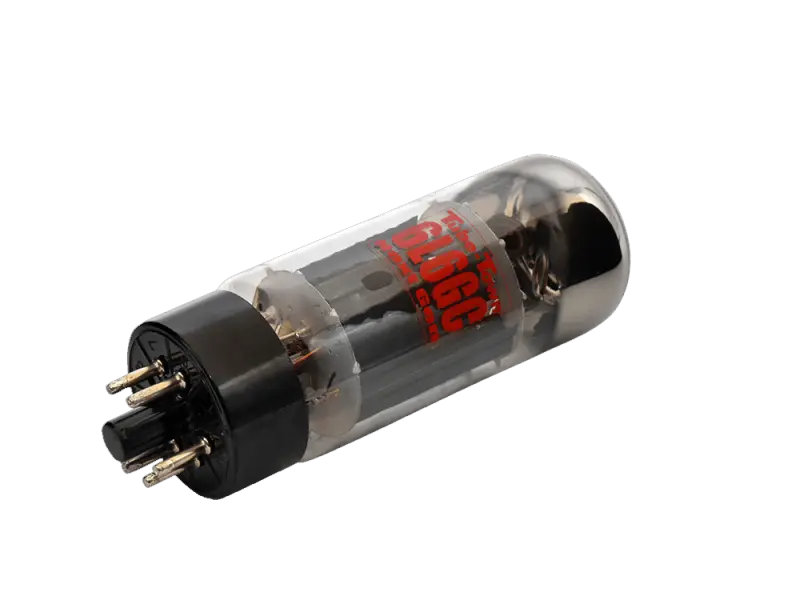

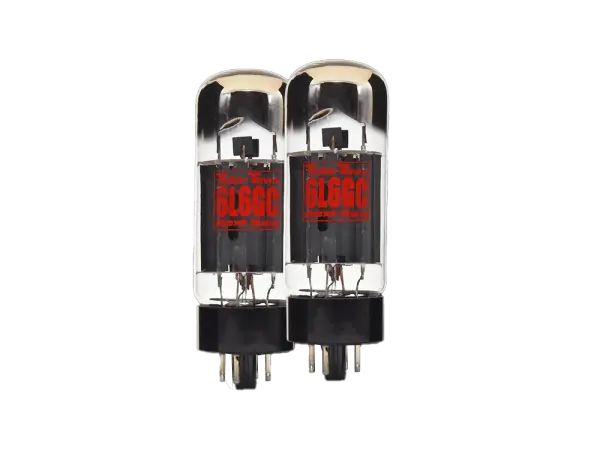

TT 6L6 GC Next Gen - PAIR

DOUBLE ANODE RECTIFYING TUBE
GZ34S is 5AR4 octal base rectifier diode. It provides strong current output. Suitable for all Hi-Fi and Guitar amplifiers.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

Warm and balanced overall sound, paired with high resolution and brilliance, which is why the TT12AT7 achieves the best results in both instrumental and audio/high-end amplifiers.

Features:

• Warm and balanced sound
• Excellent sound resolution and brilliance
• Ideal for instrumental and audio/high-end amplifiers

Hint;
Often, 12AU7 and 12AT7 types are used instead of 12AX7 tubes in order to either reduce the overall power of the amplifier or just take back the overdrive of the preamp. Especially the 12AU7 brings a very large tonal difference compared to a 12AX7, which is usually much greater than when switching from a 12AX7 to 5751 or 12AT7.

When using a 12AU7 in a driver stage that is normally designed for 12AX7, the overall power of the power amp is usually reduced. How big this difference is depends on the amplifier or circuit. For example, a Marshall with a 12AX7 in the phase inverter stage set to volume 5 will then reach the same volume with a 12AU7 set to volume 6 (perceived volume, not measured).

Electrical Characteristics

• Heater Voltage (Uf): 6.3V or 12.6V
• Heater Current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode Voltage (Ua): Maximum 300V
• Grid Voltage (Ug1): -2V (typical)
• Anode Current (Ia): 10mA (typical)
• Anode Power Dissipation: Maximum 2.5W per triode
• Anode Resistance (ra): 11kΩ
• Amplification Factor (μ): 60
• Transconductance (S): 5.5mA/V
• Input Capacitance (Cin): 1.6pF
• Output Capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of Pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater Operation: The tube can be operated with either 6.3V or 12.6V, depending on the circuit design.
• Grid Resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable operation.
• Coupling Capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high frequency disturbances.

Reverb Driver, Fender Style, direct replacement for item 125A20B

• Power: 3,5 W
• 4 Ohm @ 14k5
• 8 Ohm @ 29k

• Choke for Fender 125C1A & 022699
• Bandmaster, Dual Showman, Pro Reverb, Twin Super
• 4 H

Files:

• Datasheet

• Powertransformer for (Bandmaster Tweed, Bandmaster Reverb AA1069, AA270, AA763, Silverface, Blackface, Tweed) (Baseman Combos, Baseman Tweed, Baseman 5F6, 5F6A, Baseman 59) (Pro Tweed, Pro, Pro Blackface, AB763, Pro Reverb AA1069, AA270, AB668, Silverface) (Super Tweed, Super Brownface, 5F4, 6G4, 6G4A, Super Reverb AA270, AA763, AB568, AB763, Blackface, Silverface) (Vibroverb 6G16, AA763, Blackface)
• Fender Part Number 125P5D and 022798

Files:

• Datasheet

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 7 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications
