Transply, Raw Material, 600 x 150 mm - brushed gold / black

Product No.:: 92-C11-half
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: 5 piece
RoHs:: conform
Weight:: 0.1 kg per piece

14,80 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

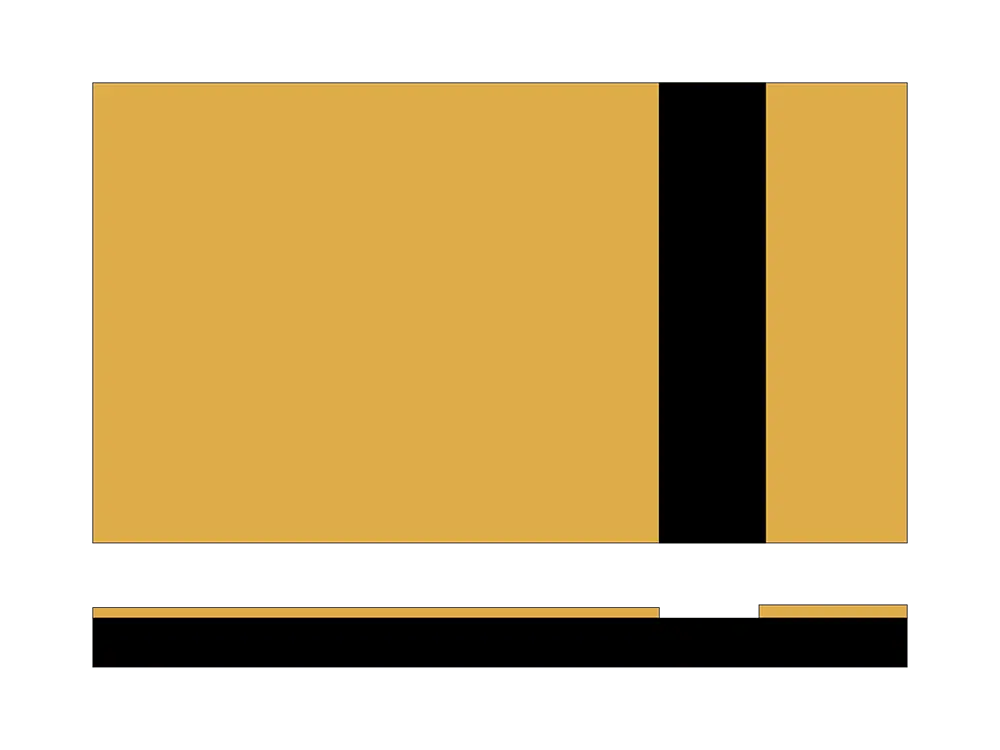

Transply, raw material
if you want to engrave by yourself

Material: 1,5 mm Transply
Size: 600 x 150 mm
Colors: brushed gold
Engraving: black
