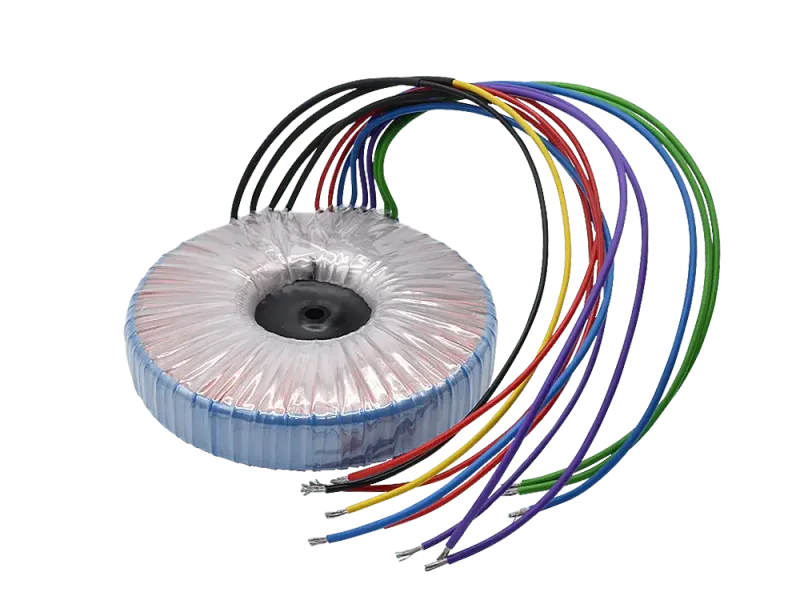

Toroidal 81VA Power - Ultra Flat

Product No.:: tt-t81
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: 1 piece
RoHs:: conform
Weight:: 1.32 kg per piece

72,90 €

incl. VAT excl. Shipping costs

piece:

Quantity

Bookmark

Ask Question

Description

Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
Sec1: 300 V @ 0,12 A (rot / red)
Sec2: 6,3 V @ 3 A (grün / green)
Sec3: 12,6 V @ 1 A (blau / blue)
Sec4: 12,6 V @ 1 A (lila / purple)
Size ca. d = 120 mm, h = 20 mm
Designed specifically for the use in 19" / 1U racks
