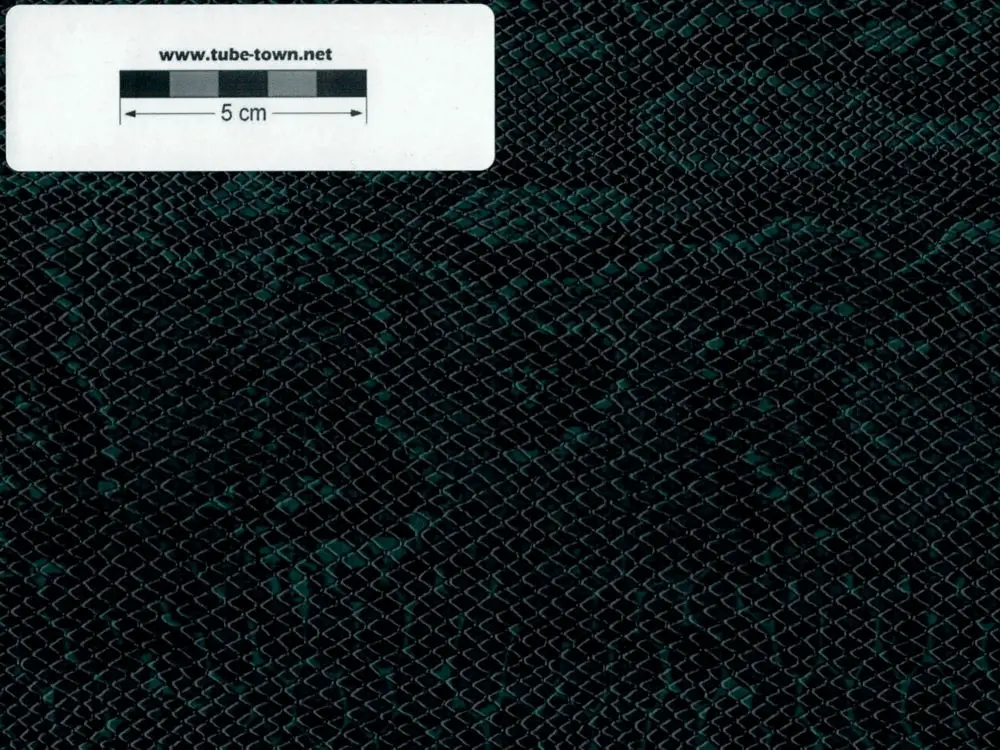

Tolex Tube-Town SnakeSkin Hunter Green

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Pri: 3200 Ohm / CT
• Sec: 4-8-16 Ohm
• Power: 50 Watt

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, which leads to

• more efficiency
• more linearity
• less distortion
• and a higher performance

Files:

• Datasheet

• Pri: 120V, 230V, 240V @ 50Hz
• Sec1: 345V-0-345V @ 175 mA
• Sec2: 6,3 VCT @ 5A
• Sec3: 5 V @ 3A
• Sec4: 12,6 V @ 1A

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, which leads to

• more efficiency
• more linearity
• less distortion
• and a higher performance

Files:

• Datasheet

• 1 pole / 3 position
• Solder lugs
• Shaft Diameter 6 mm, D-Shaft
• Rating: 250 VAC 6(4) A
• Contact Resistance: 100MOhm Max
• Dielectric Intensity:
  • 1500VAC / 5S for terminal and terminal
  • 3000VAC / 5s for terminal and ground
• Withstand Voltage: 1500VAC / min
• Operating Temperature: -25~85°C
• Insulation Resistance: 500 VDC, 100MOhm Min
• Electrical Life: 10,000 cycles
• Housing material: PA66
• Ø: 22 mm
• h: 17,0 mm
• Ø Frontpanel drill: 10 mm

• Plastic covered with steel inner core
• End plates gold plated
• Color: Black
• Mounting hardware screws and t-nuts included

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet
