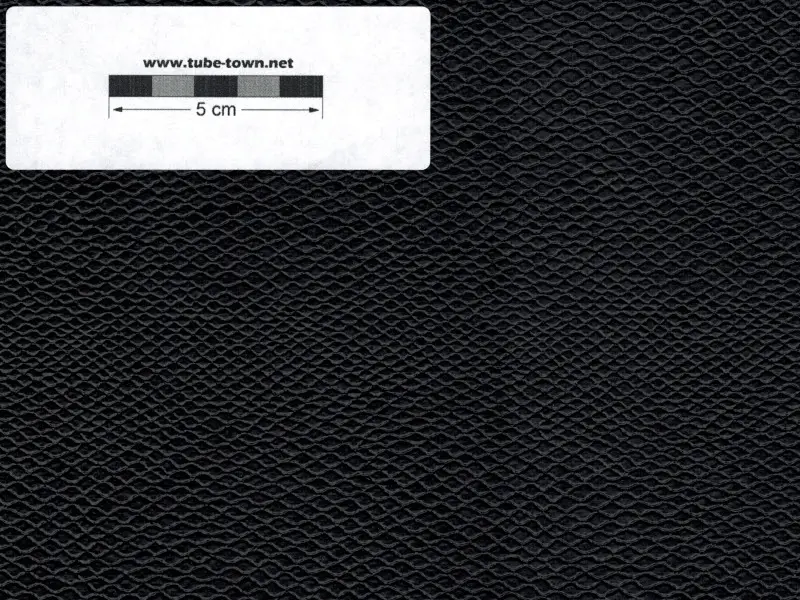

Tolex Tube-Town Snakeskin Black

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Pri: 3200 Ohm / CT
• Sec: 4-8-16 Ohm
• Power: 50 Watt

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, which leads to

• more efficiency
• more linearity
• less distortion
• and a higher performance

Files:

• Datasheet

• Pri: 120V, 230V, 240V @ 50Hz
• Sec1: 345V-0-345V @ 175 mA
• Sec2: 6,3 VCT @ 5A
• Sec3: 5 V @ 3A
• Sec4: 12,6 V @ 1A

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, which leads to

• more efficiency
• more linearity
• less distortion
• and a higher performance

Files:

• Datasheet

• 1 pole / 3 position
• Solder lugs
• Shaft Diameter 6 mm, D-Shaft
• Rating: 250 VAC 6(4) A
• Contact Resistance: 100MOhm Max
• Dielectric Intensity:
  • 1500VAC / 5S for terminal and terminal
  • 3000VAC / 5s for terminal and ground
• Withstand Voltage: 1500VAC / min
• Operating Temperature: -25~85°C
• Insulation Resistance: 500 VDC, 100MOhm Min
• Electrical Life: 10,000 cycles
• Housing material: PA66
• Ø: 22 mm
• h: 17,0 mm
• Ø Frontpanel drill: 10 mm

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

• Plastic covered with steel inner core
• End plates gold plated
• Color: Black
• Mounting hardware screws and t-nuts included
