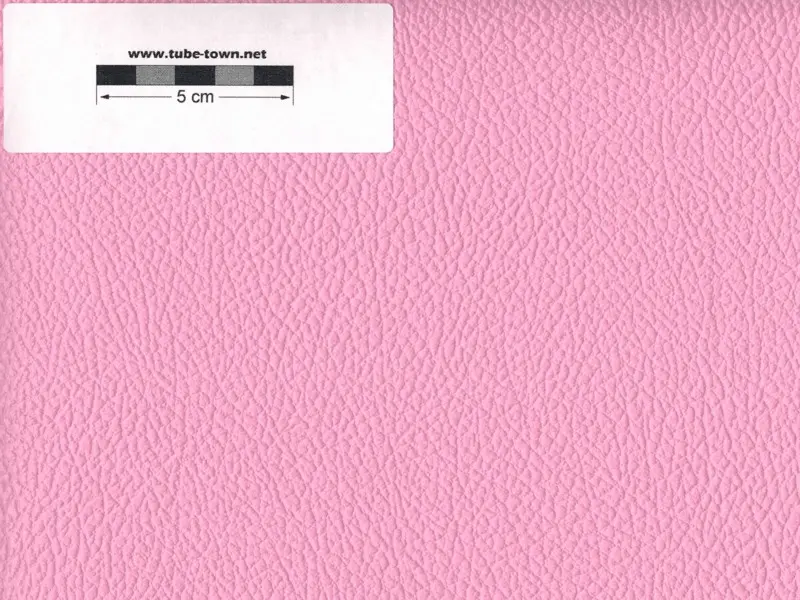

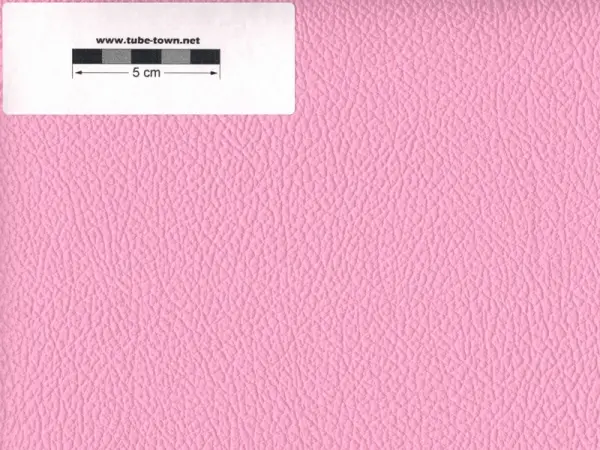

Tolex Tube-Town Pink

Mounting set for case handles with 2 holes consisting of

•     2 x T-Nut M5
•     2 x Countersunk screw M5x30 mm, nickel-plated

Specification label. Self adhesive. 104 x 71 mm. Aluminium with satin black print. English text.

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

• Signal wire LiYDY 1 x 0,5 mm², shielded
• Diameter Outside: ca. 3,2 mm
• Voltage Rating max: 250 V
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length: 2 m

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:  –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 1 mm²
• Outer Diameter: 2,45 mm
• Stranded wire structure: 32 x 0,20 mm tinned copper

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper
