Terminal Mono / Stereo Universal - 2x16 Ohm

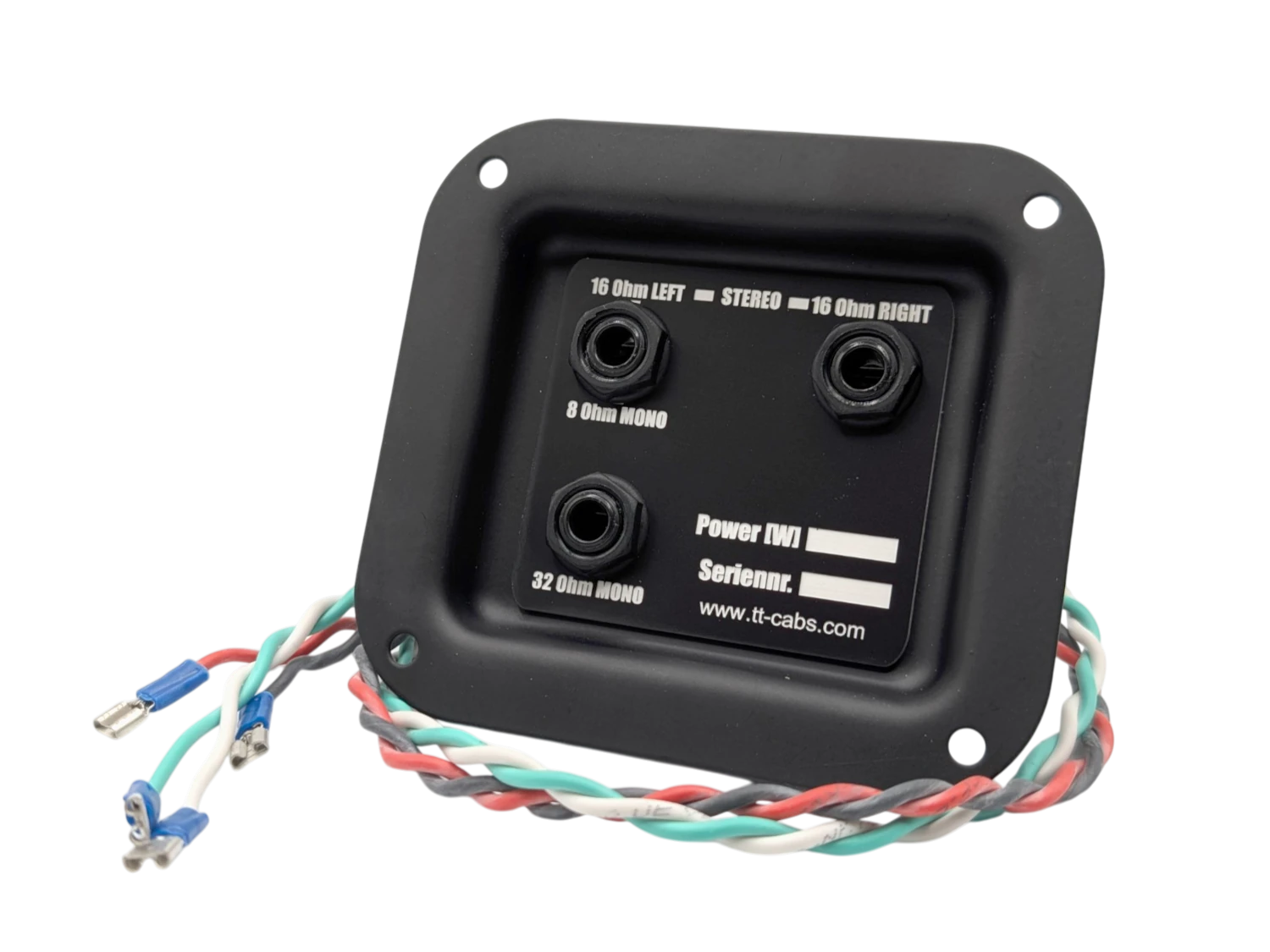

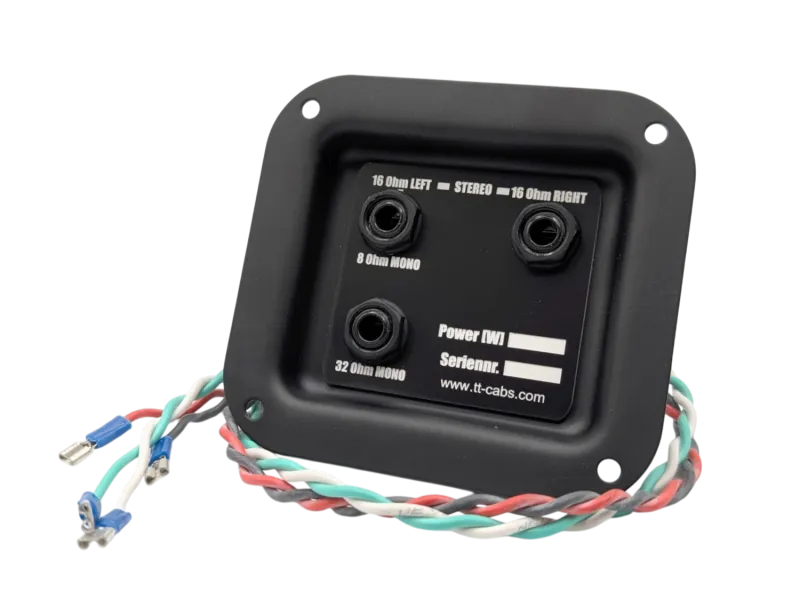

Universal Mono/Stereo Terminal

for the use with two 16 Ohm speakers the following configurations are possible:

• 8 ohm mono
• 16 ohm left + 168 ohm right stereo
• 16 ohm left only mono
• 16 ohm right only mono
• 32 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

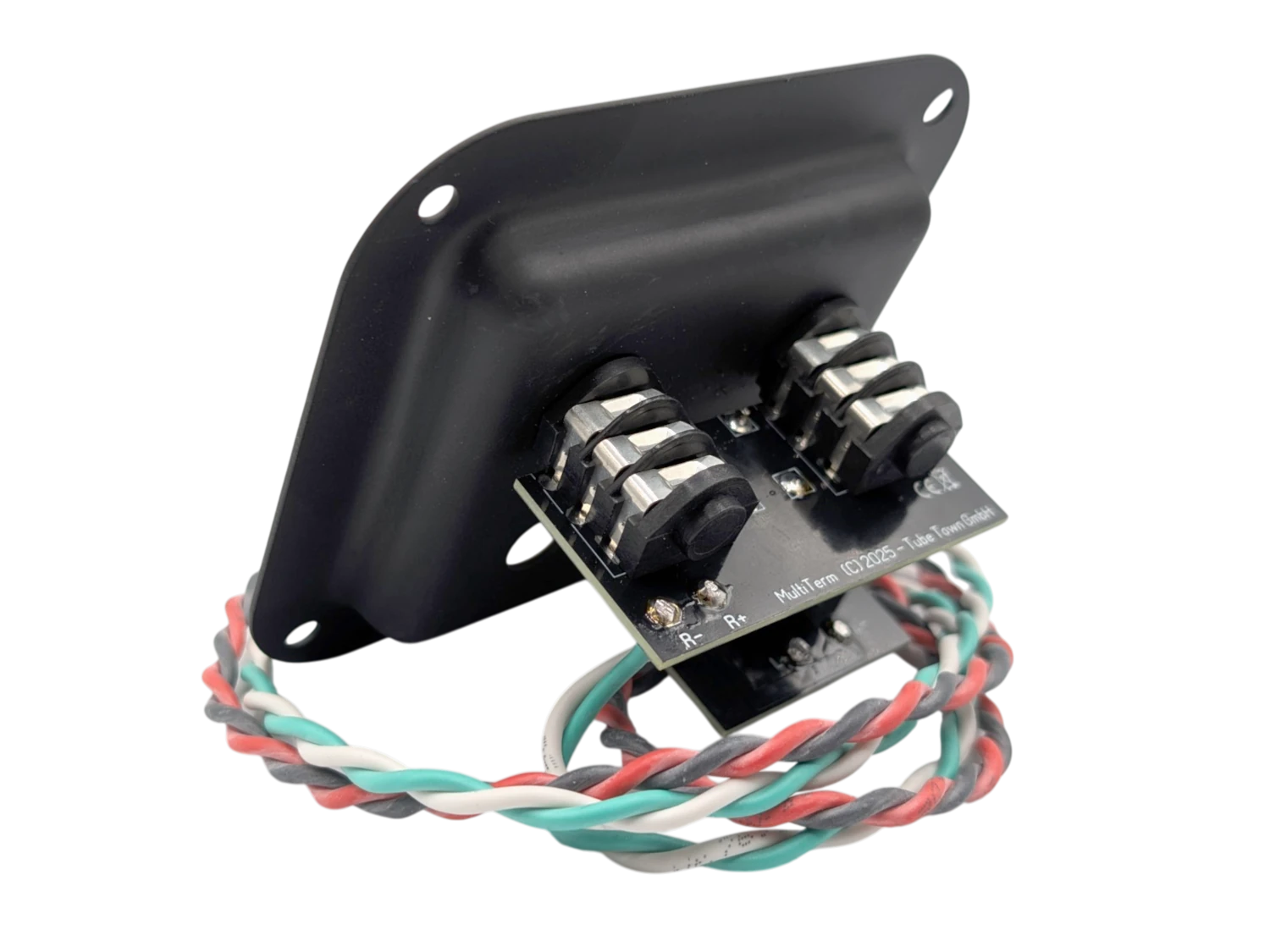

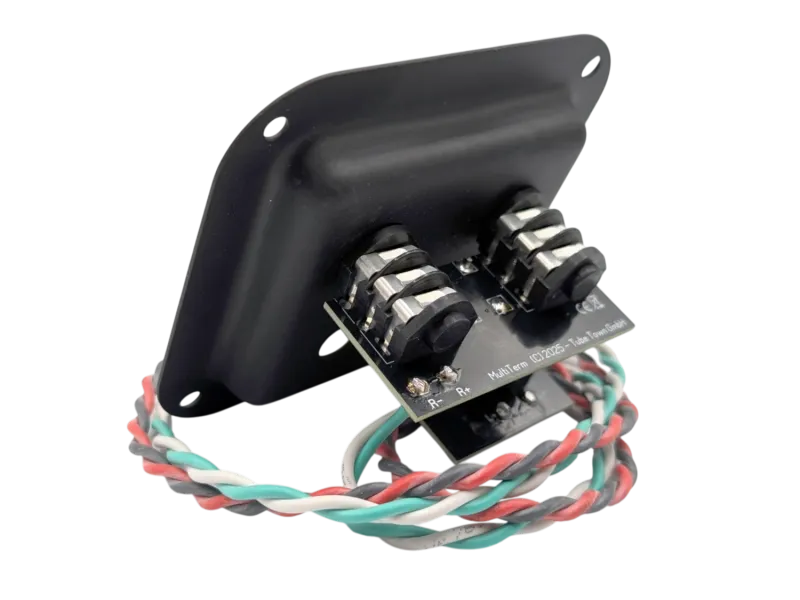

Wires and Colorcodes:

• Wire: 1 mm², ca. 50 cm
• black: L-
• red: L +
• green: R -
• white: R +

• Datasheet
