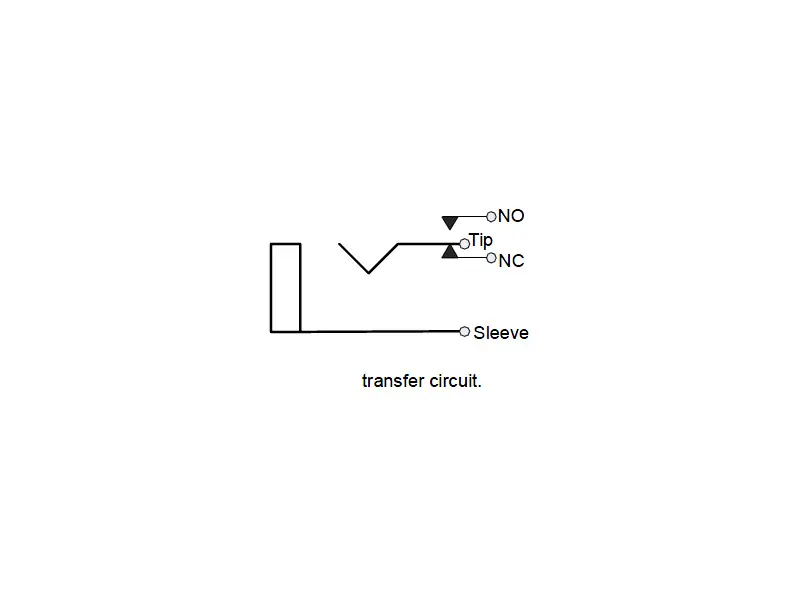

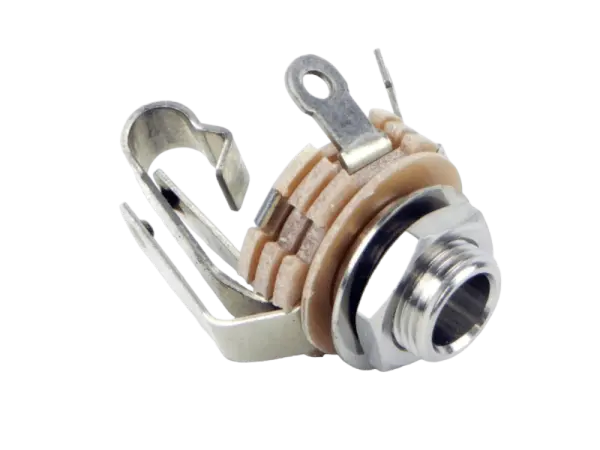

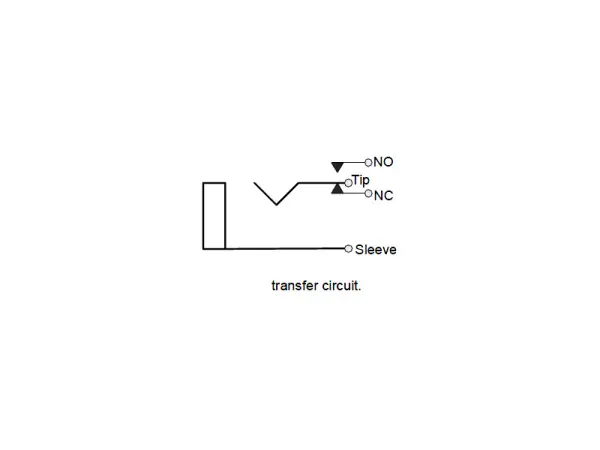

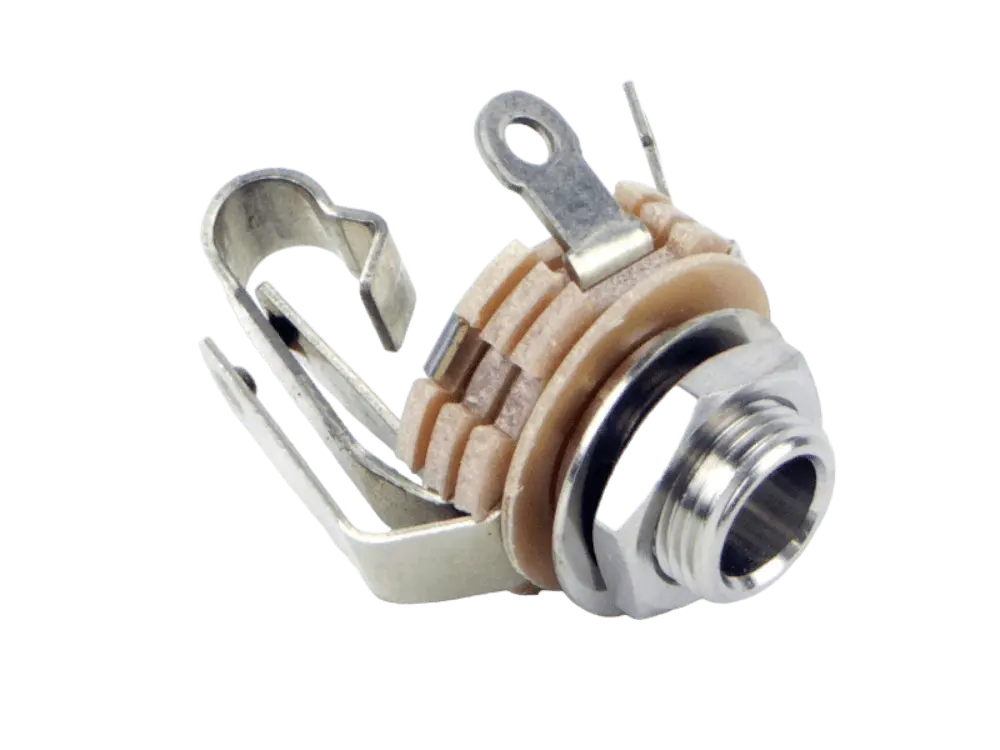

Switchcraft 13A, 6,3 mm jack - Transfer Circut

• Shoulder Washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1028

• Flat washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1029

NP2X-BAG

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting

Vintage American AlNiCo Guitar Speaker

Jupiter 8SA is an 8" seamed cone speaker with a Small Alnico Magnet, an upgrade replacement for Jensen P8R.

• Small Ceramic Magnet
• Power: 25 W
• Sensitivity: 94,5dB
• Weight: 1,2 kg
• VC Diameter: 1″
• 8 Ohm
• Kapton Coil

4 tubes, matched as quad

The 6L6WXT+ features larger plate dimensions and 20 percent higher output than the Sovtek 5881WXT. Extremely low noise and a excellent detailed and harmonic sound, plenty of power and very easy to handle - even while using in "hot" setups.

Totally Tweed! The preferred OEM tube of ’50s-era Fender Tweed Champ and Deluxe amplifiers The Tungsol 6V6 has a geometry designed to safely handle the higher voltages used in guitar amps – plus heavier plate and grid materials. The result.. better mids and bottom while keeping the smooth top of the classic 6V6’s. The Tungsol 6V6 breaks up evenly from low E to high up the neck. Blues players will LOVE these tubes for the way they sing!

Files:

• Datasheet

Rectifier
An indirectly heated diode intended for rectification of commercial-frequency alternating current. It has a 140 mA maximum output and filament voltage of 5 V and a filament current of 2 A +/- 0.2 A.

Files:

• Datasheet

Indirectly-heated full-wave rectifier. Equivalent to EZ81.
