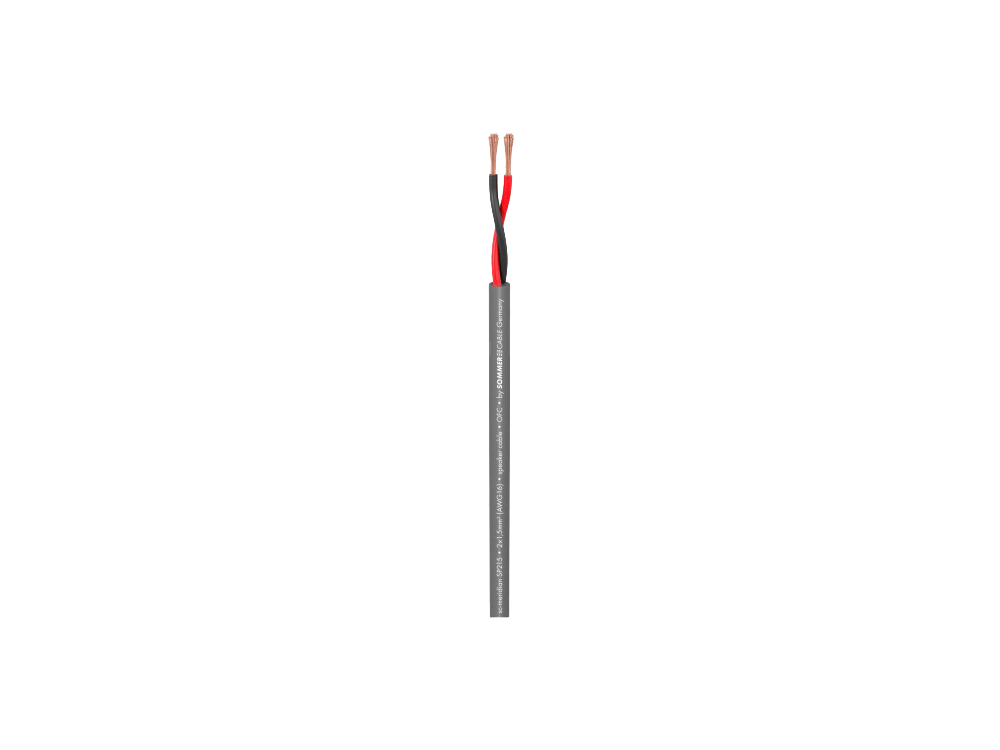

Speaker Cable MERIDIAN MOBIL SP215 - 2 x 1,5 mm², grey - 10 Meter

NP2X-BAG

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,47 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 18 x 16 x 9 mm
• Termination Style: radial
• Grid: 22,5

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years
