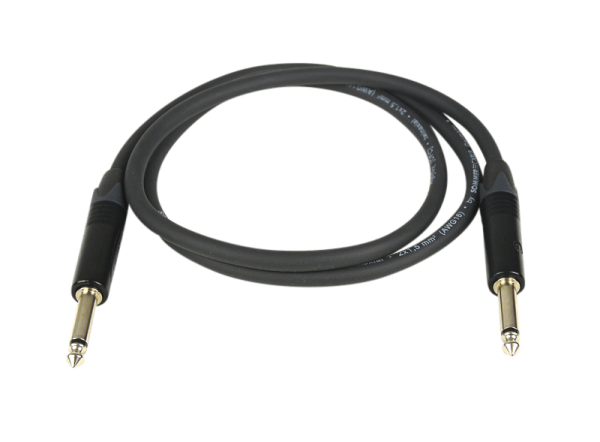

Speaker cable, 2 x 6,3 mm plug, 1 m - PREMIUM

SC-SPIRIT BLACK ZILK

Self-respecting musicians...
rock with one of the most interesting guitar cables ever made. This soft, highly flexible guitar cable
with its very attractive finish stands out by outward and inner values. It is sheathed by a thick 7.2 mm jacket
in a velvety, semi-transparent BLACK ZILK jacket, which glides on the the floor as lightly as a feather.
We use concentrically stranded litz wires of oxygen.free class Nò Cile copper (OFC 99.9999%) and a GAS-
INJECTED PE insulation which ensures a low-loss, neutral transmission.

The stranding angle of the shielding screen has been chosen with care so that hardly any friction points
will ocour at the overlying sleeve protection of the connector, giving the cable an extra long life.

With DIY configuring please bear in mind that the black carbon screen(on the white insulation) is conductive
and must therefore be removed to avoid any earthing contact with the inner conductor.

PRODUCT ADVANTAGES:

• Semi-transparent soft jacket design ensures a high number of bending cycles
• Gorgeous velvet look with soft touch feeling
• Dual shielding by flat helical Cu mesh and carbon semiconductor
• High bending cycles
• Zero-twist winding

• High-end guitar cable for pure transmission even over longer distances
• perfect for the unbalanced studio cabling

• Construction LI2Y(LS)DY 1x0,25mm²
• Jacket, diameter PVC 7,2 mm
• AWG 24
• Inner conductors 1 x 0,25 mm²
• Copper strand per conductor 32 x 0,10 mm
• Conductor insulation Foam/skin-PE
• Shielding helical Cu screen + semiconuctor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 64 g

• Capac. cond./shield. per 1 m 80 pF
• Cond. resistance per 1 km 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

• 6,3 mm (1/4") mono 2 Conductor Cable Mount Plug
• Nickel Metal Handle
• Solder Lugs
• Cable Clamp

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

• Type: Toggle Switch
• Version: SPDT, ON-ON
• Assembly Ø: 5 mm
• Rating: 1,5 A / 250VAC
• Termination Style: solder-lugs

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

• 6,3 mm jack
• Same as Switchcraft 12A but with longer thread
• mono, switched
• Installation diameter: 10 mm

Files:

• Datasheet

• 6,3 mm jack
• mono, switched
• Installation diameter: 10 mm

Files:

• Datasheet
