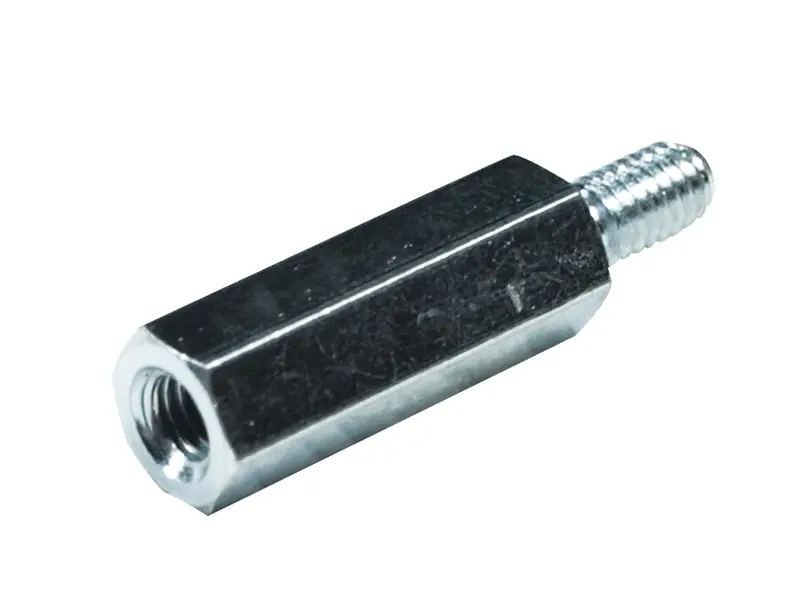

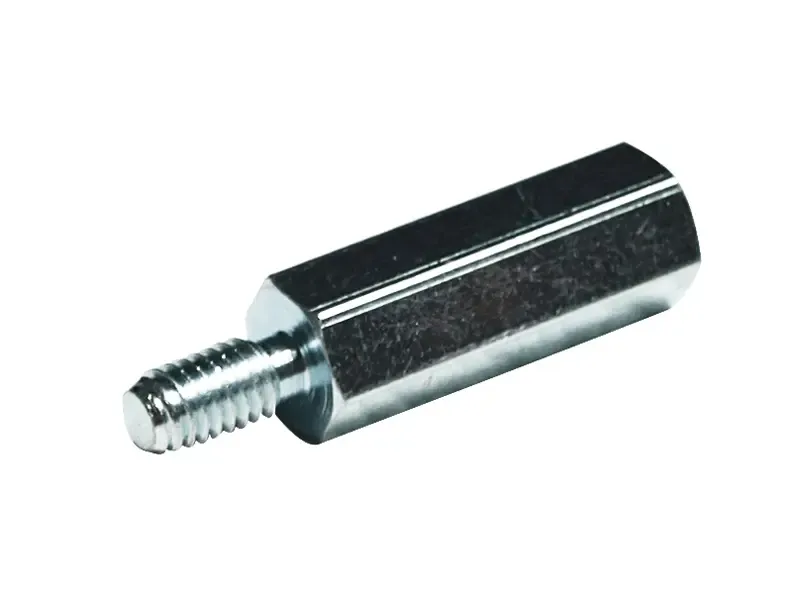

Spacer Bolt M2.5 / 15 mm

for building turret boards

TT's Pro-Version of the 5E3 - simply great !

Set of componentes for building the TT 5Ä3 MKII Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Powertransformer Hammnond 291 AEX, Universal für 120,230 und 240 V Netzspannung
• Outputtransformer Hammond 1760e - 4/8/16 Ohm
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Grommet 10 mm - Pack of 5

• Color: black
• Size:
  • A: 10 mm
  • B: 12 mm
  • D: 17,5 mm
  • H: 6,8 mm
  • h: 2 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

Tube-Town EZ-Board #085

• Drills: 8 x 46
• Size: 80 x 460 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 22.75 x 18.7 mm
• Mounting: Set-Screw

TT-Chassis Aluminium - Typ 032 for 5Ä3 amp kit
Chassis-Version V2020

• Size : 370 x 75 x 104 mm
• Material: 2 mm Aluminium
• Made in Germany

Files:

• Datasheet
• Template Faceplates
