SOMMER CABLE - SC-TRICONE MKII red - 10 Meter

NP2RX

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting

• Square mounting base
• Suitable for cable ties up to 5 mm wide
• Self-adhesive
• Size: 20 x 20 mm
• Color: black
• Packaging unit: 10 pieces

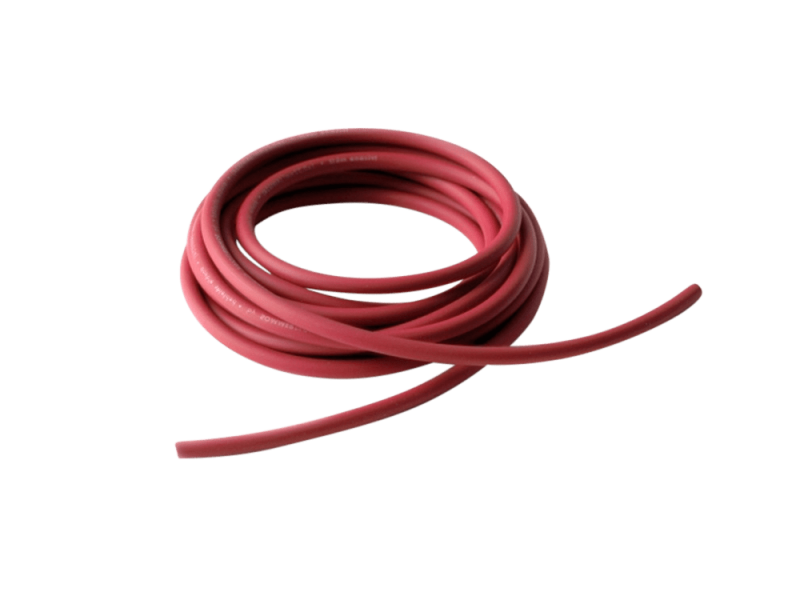

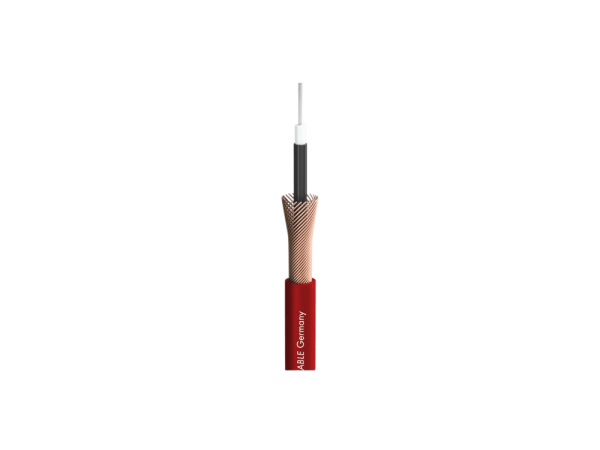

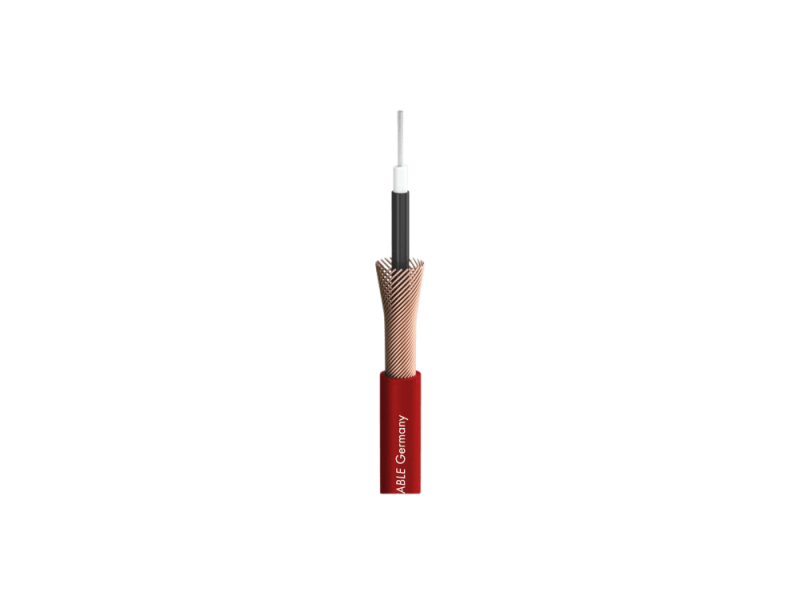

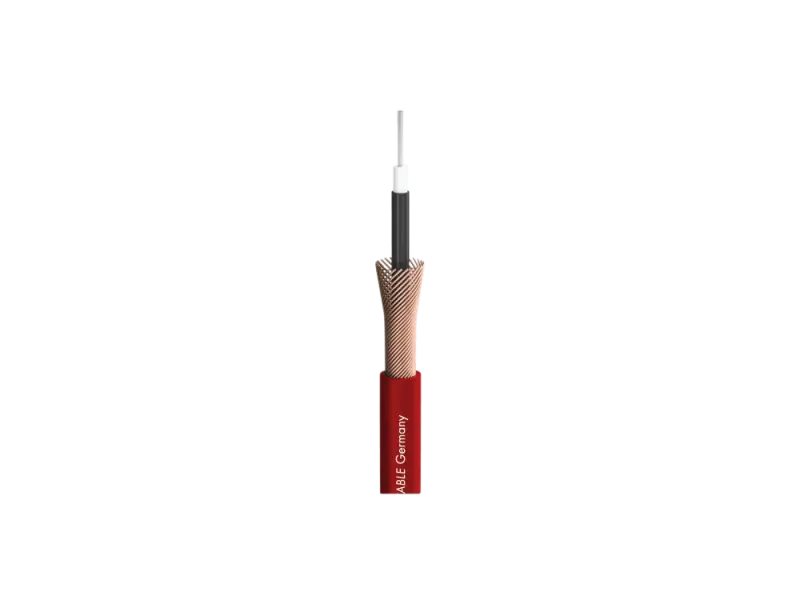

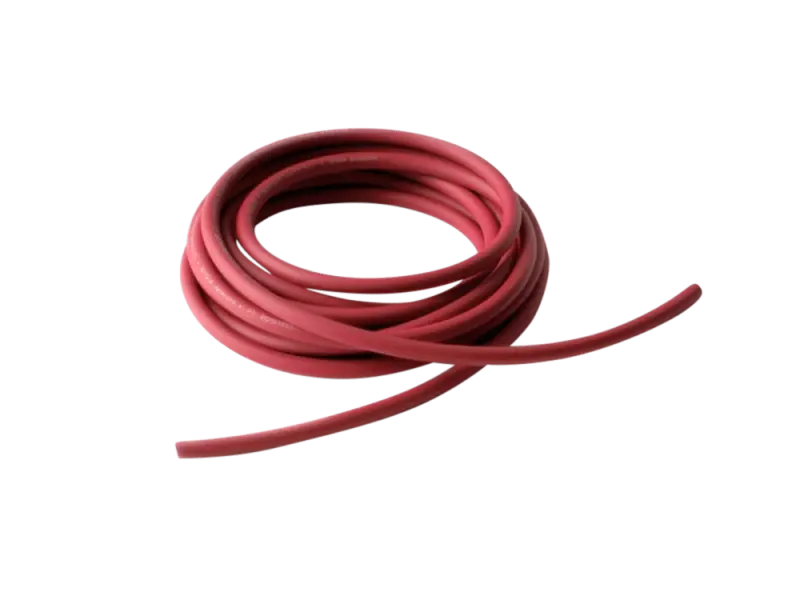

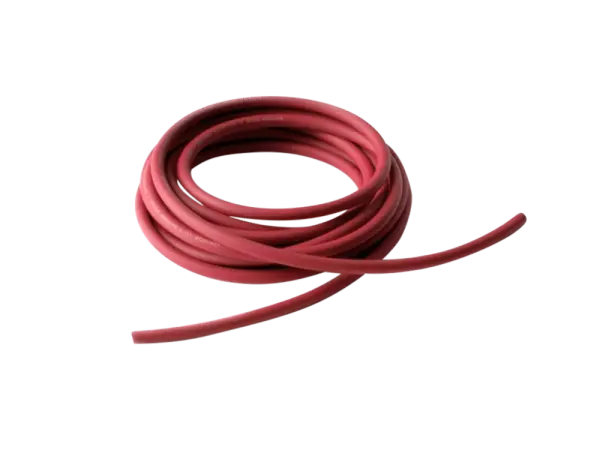

The TRICONE® MKII is a flexible cable for guitar, keyboard, the live musician, studio keyboarder, and the home recorder. Based on the sound wire diameter of 0.22 mm² and the fine individual strands of 0.10 mm, it is protected against cable breaks and convinces with high bending cycles. It is very robust, easy to wind, and very reasonably priced.

When working with it care should be taken when removing the concutive shielding (black PVC-hose) from the insulation, so that it does not touch the inner conductor.

TRICONE® is a protected and registered trademark of SOMMER CABLE GmbH.

THE ADVANTAGES:

• Very robust due to the large conductor diameter and fine individual stranding
• Good electrical values due to the insulation made of skin PE
• 100 % Protected due to double shielding (copper spiral + conductive carbon shielding)
• High number of bending cycles

• Dependable cable for live application (guitar and keyboard)
• Reasonable line or patch cable for the home recorder

• Construction LI2Y(LS)DY1x0.22mm²
• Jacket, diameter PVC 5,9 mm
• AWG 24
• No. of inner conductors 1 x 0,22 mm²
• Copper strand per conductor 28 x 0,10 mm
• Conductor insulation skin PE 1,8 mm
• Shielding copper spiral shielding + semiconductor
• Shielding factor 100 %
• Temperature range min. -20 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Color: blue
• Weight per 1 m 42 g

• Capac. cond./shield. per 1 m < 85 pF
• Cond. resistance per 1 km < 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824n)
• Steel nickel plated
• High Quality
• 16 x Screws with extra flat head, silver
