SOMMER CABLE - SC-TRICONE MKII blau - 5 Meter

The TRICONE® MKII is a flexible cable for guitar, keyboard, the live musician, studio keyboarder, and the home recorder. Based on the sound wire diameter of 0.22 mm² and the fine individual strands of 0.10 mm, it is protected against cable breaks and convinces with high bending cycles. It is very robust, easy to wind, and very reasonably priced.

When working with it care should be taken when removing the concutive shielding (black PVC-hose) from the insulation, so that it does not touch the inner conductor.

TRICONE® is a protected and registered trademark of SOMMER CABLE GmbH.

THE ADVANTAGES:

• Very robust due to the large conductor diameter and fine individual stranding
• Good electrical values due to the insulation made of skin PE
• 100 % Protected due to double shielding (copper spiral + conductive carbon shielding)
• High number of bending cycles

• Dependable cable for live application (guitar and keyboard)
• Reasonable line or patch cable for the home recorder

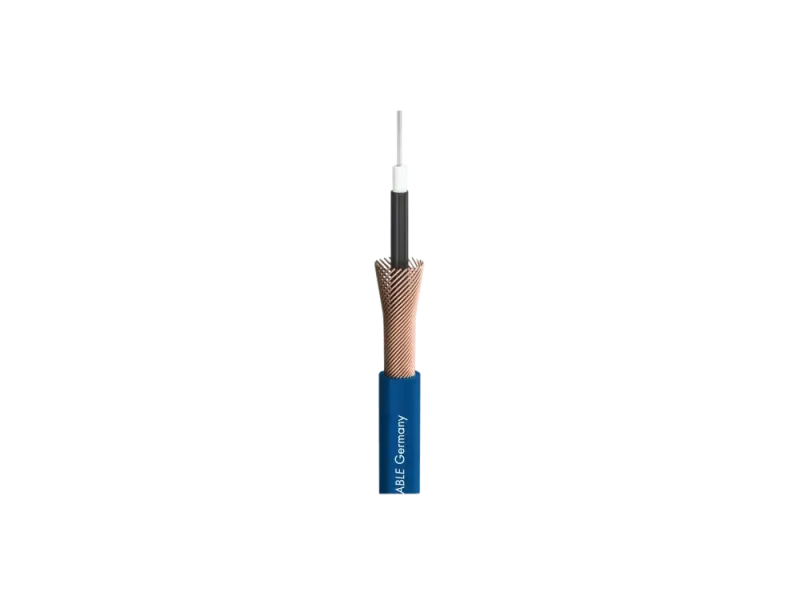

• Construction LI2Y(LS)DY1x0.22mm²
• Jacket, diameter PVC 5,9 mm
• AWG 24
• No. of inner conductors 1 x 0,22 mm²
• Copper strand per conductor 28 x 0,10 mm
• Conductor insulation skin PE 1,8 mm
• Shielding copper spiral shielding + semiconductor
• Shielding factor 100 %
• Temperature range min. -20 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Color: blue
• Weight per 1 m 42 g

• Capac. cond./shield. per 1 m < 85 pF
• Cond. resistance per 1 km < 90 Ohm
• Insulation resist. per 1 km > 1 GOhm
