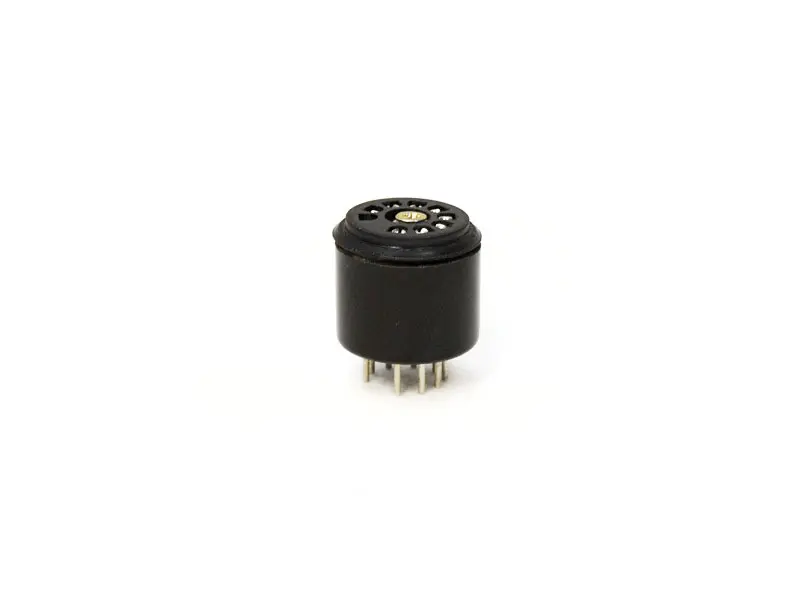

Socket-Saver Noval

Description

Type: Noval Socket Saver
Bakelit
for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
EZ81, EL844 etc.

Manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
