Main page » Components » Sockets & Retainer » Octal Socket » Socket Octal Belton, PCB VT8-PT

Preview: Socket Octal Belton, PCB VT8-PT

Socket Octal Belton, PCB VT8-PT

Mobile Preview: Socket Octal Belton, PCB VT8-PT

Description

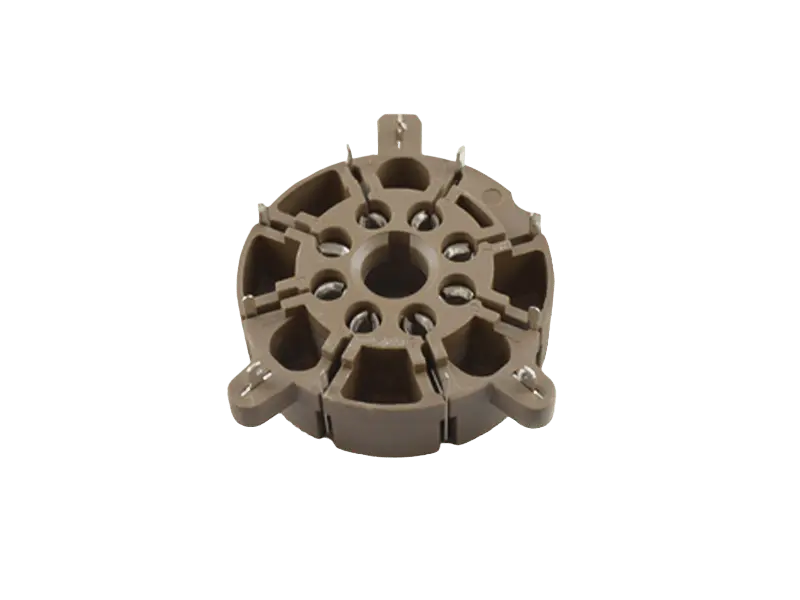

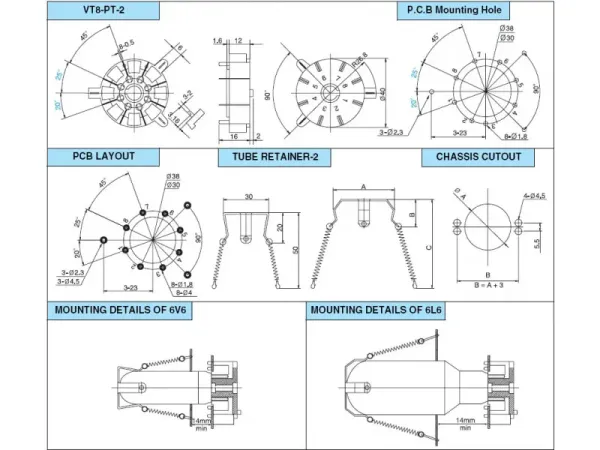

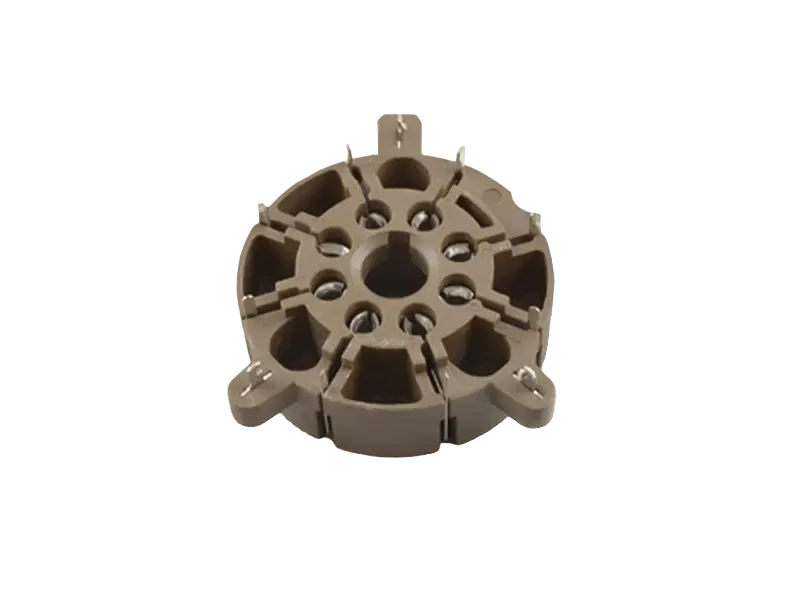

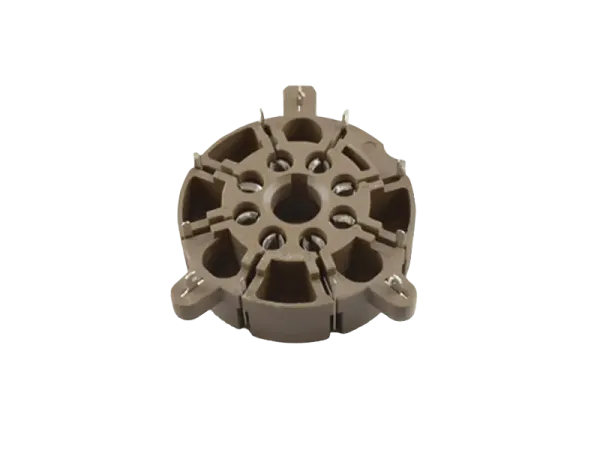

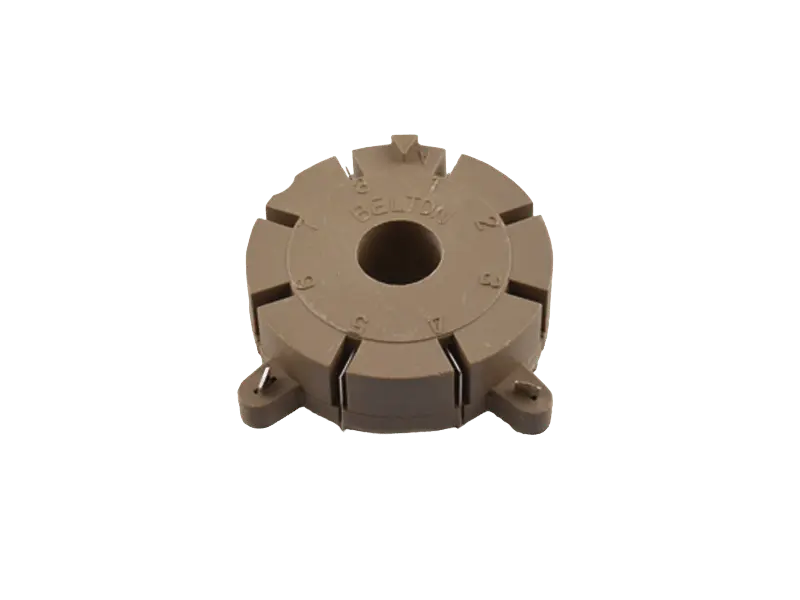

Octal Socket Belton VT8-PT

Version: Auto Wave Soldering
Termination Style: PCB mount
for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Manufacturer

Herstellerinformationen | Manufacturer Information
Belton Engineering Co.,LTD,
Unit 1208,Daerung Technotown 8,
481-11 Gasan-Dong,
Geumcheon-Gu, Seoul,
KR
https://belton.co.kr/

EU Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de
