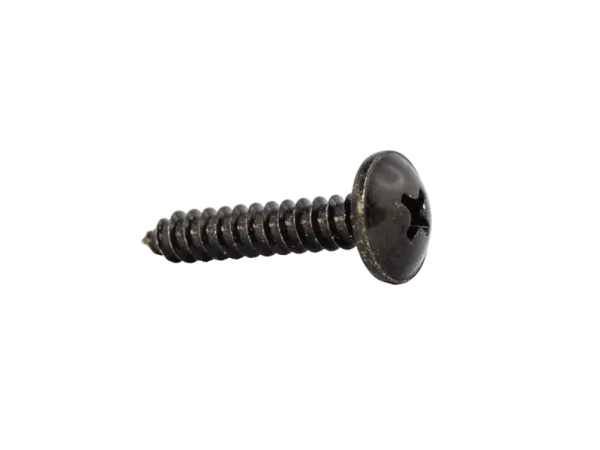

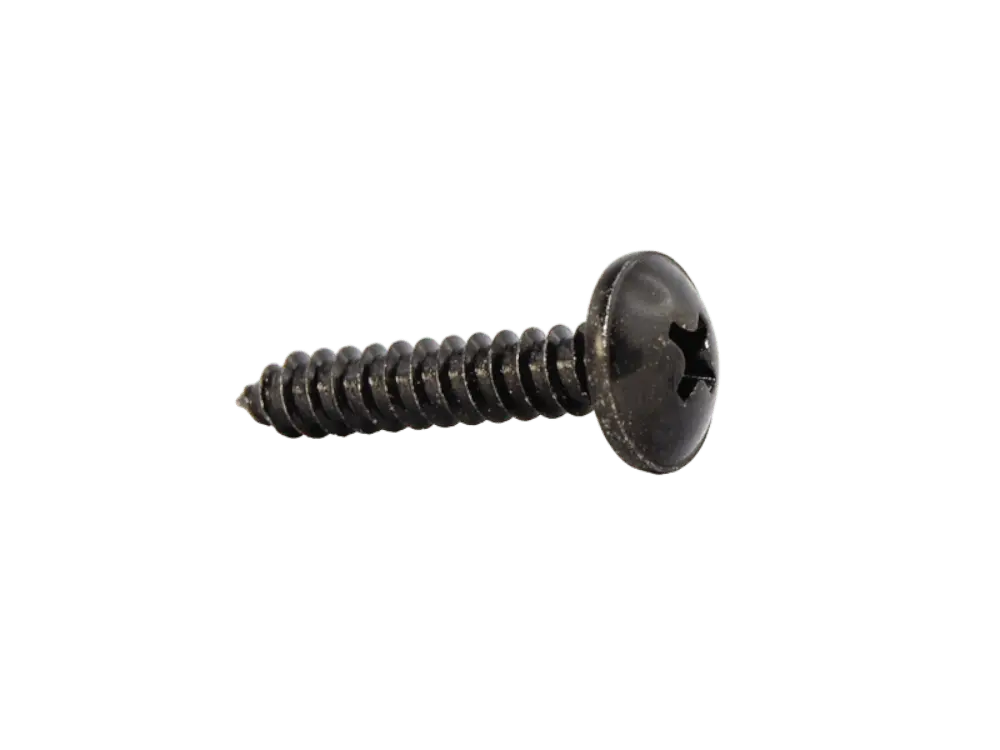

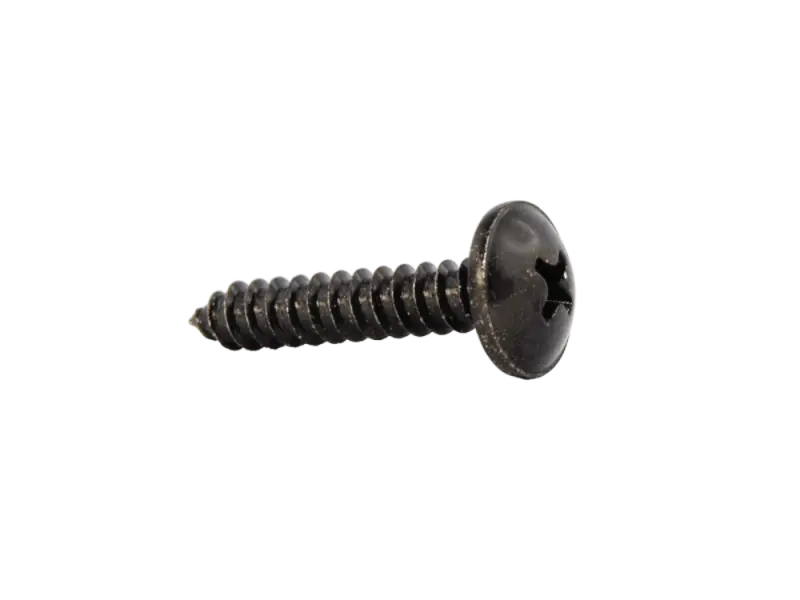

Sheet metal screw, 4.8 x 25 mm, DIN 7981 / ISO 7049

• Rubber foot with steel insert
• Size: d = 38 mm, h = 33 mm

• Rubber foot with steel insert
• Size: d = 38 mm, h = 15 mm
• Pack of 4
• Screws included

• Rubber foot with steel insert
• Size: d = 30 mm,  h = 15 mm
• Pack of 4
• Screws included

• Rubber foot with steel insert
• Size: 38 x 10 mm
• Pack of 4
• Screws included

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Very linear working 12AX7 / ECC83 with long anode plates and spiral heating, which makes the tube less sensitive to interference from AC heating.
We recommend this tube for audio and high-end amps as well as for "modern" Fender amps with more overdrive, but also as an input tube in old Marshall JCM800s.

Note: Tubes equipped with long plates are commonly associated with a "warmer" or "richer" sound, whereas those with shorter plates tend to deliver a "tighter sound". However, tubes featuring long plates exhibit increased sensitivity to vibrations and mechanical disturbances, rendering them less ideal for critical applications.

Files

• Datasheet

• Type: Countersunk Head, hexagon socket
• Material: Steel
• Strength class: 10.9
• Surface: black
• DIN: 7991
• ISO: 10642
• Price: Pack with 100 pcs.

Screw set for loudspeaker mounting

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring harness for internal speaker connection
• Type: Mono / 1 Speaker
• Wire: 2 x 1,5 mm² red - black
• Hicon HI-J63MA05 Angled Jack / speaker crimps
• Length: ca. 55 cm

Set of componentes for building the TT 5F1 - V2020 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Chassis
• Transformers (Hammond 1760C, TT-5E3-VPO)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Headshell or Combo

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.

Screw set for Torodial-Transformers

1 x Screw M5*30 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t27

• Self tap screw
• flange head
• 4.2 x 25 mm, black
• Extra Flat
• Pack with 25 pcs.

Width: 30 mm, bright China bristles with wood handle

ideally for the Tolex Glue SG5
