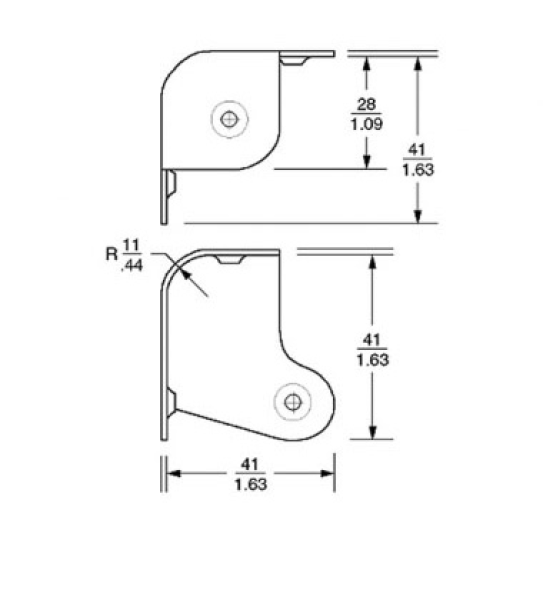

Set Corners w/ cutaway - Fender Style, 2 leg, silver incl. Screws

• Type: Countersunk raised head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: silver
• Price: per pcs.

4 tubes, matched as quad

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 22.75 x 18.7 mm
• Mounting: Set-Screw

• Type: Rocker Switch
• Version: DPST  ON-OFF, labeled: I/O
• Recess Ø: 20,2 mm, Snap-in mount
• Rating: max. 10A/250V AC
• Termination Style: solder lug / quick-connect terminals

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Potentiometer with CENTER DETENT
• Type: Panel Mount Potentiometer
• Power Rating: 0,125 W log / 0,2 W linear
• Voltage Rating: 150 V DC Audio / 200 V DC linear
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm
