Roederstein MKT 1813 0,22µF / 630 V DC

• Size: 140 x 47 mm
• Material: FR4, 2 mm
• Color: black
• Turrets: 2 x 15

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Pri: 0-220-230-240 (yellow-blue-brown-black)
• Sec 1: 360 V @ 0,3 A (red)
• Sec 2: 100 V @ 0,05 A (orange)
• Sec 3: 6,3 V @ 7 A (black)
• Sec 4: 15 V @ 1 A (green)
• long leads
• Size: 115 x 55 mm
• ta 40  50/60Hz
• EN 61558

• Type: Toggle Switch
• Version: SPDT, ON-ON
• Rating: 6A / 125V AC
• Insulation resistance: 100MΩ min.
• Dielectric strength: 1000V min.
• Operating Life: 25.000 cycles
• Drill Ø: 12 mm
• Termination Style: solder-lugs

• Datasheet Carling 110 Series

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Inductance (+/- 15%): 10 H
• Resistance (+/- 15%): 155 Ohm
• max Current DC: 125 mA
• max Voltage DC: 500 V
• Leads: min 12 cm
• Hipot tested (100%) mit 1500 VAC

• Datasheet

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 250 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

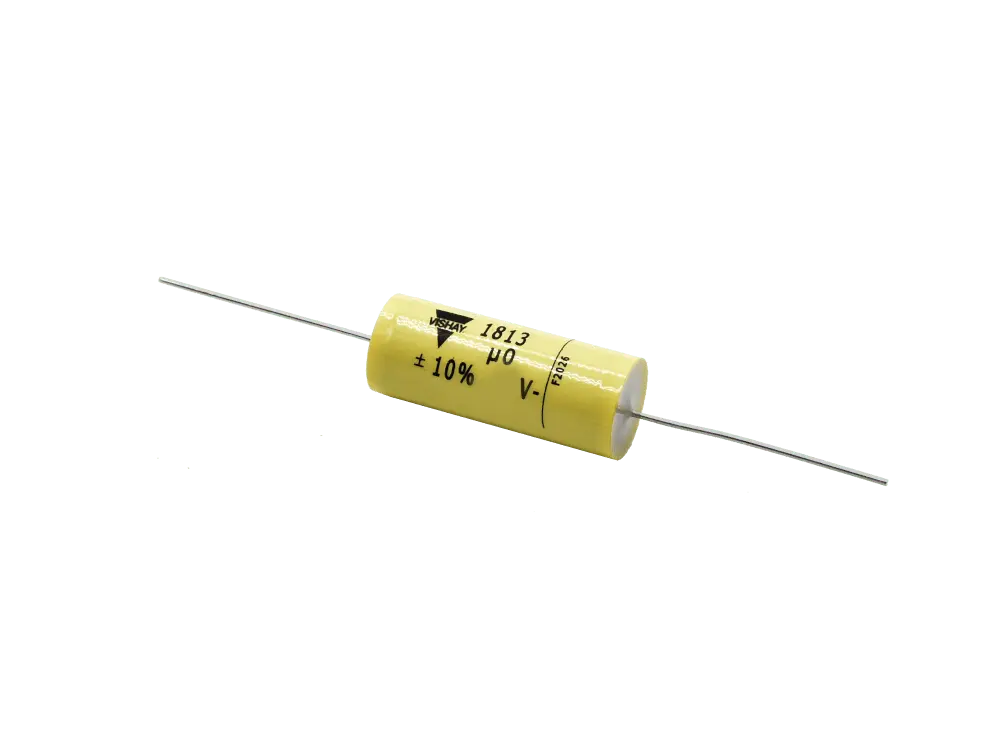

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Primary: 4 kOhm
• Secondary: 4, 8 and 16 Ohm
• Power: 36 Watt
• Made in Europe

Files:

• Datasheet

• Core M6
• Primary: 120-230V-240V @ 50Hz
• Secondary HT and bias, 300V-50V-0-300V @ 300mA
• Secondary Heater: 3.15V-0-3.15V @ 6A

Files:

• Datasheet
