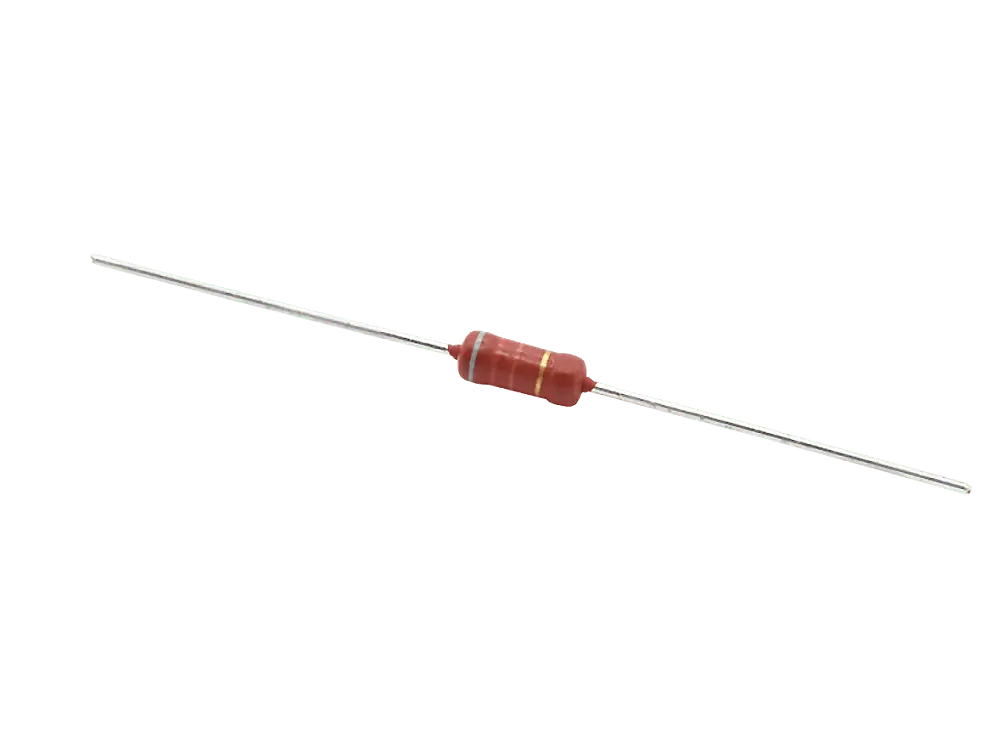

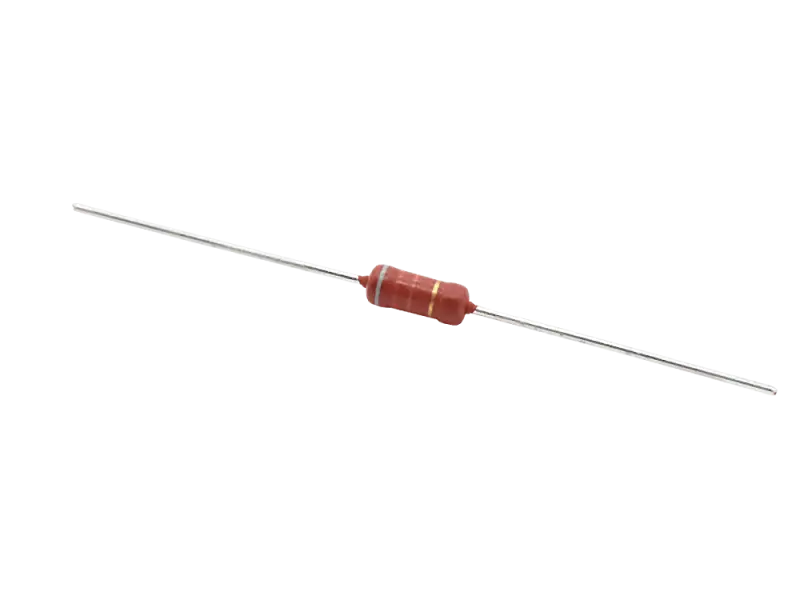

Resistor Metaloxide 2 Watts / 180k Ohms

Bracket for capacitors

• 2-piece, with screws
• d = 40 mm

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Standard Recovery Rectifier
• Voltage max: 1000V
• Current Rating: 1A
• Forward Current: 1A
• Forward Current Avg Rectified, IF(AV): 1A
• Forward Surge Current Max, Ifsm: 1A
• Forward Voltage: 1 V
• Forward Voltage Max, VF:1.3V
• Pack of 10 pcs

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 250 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Audio: 5 W
• Max. DC: 45 mA
• Pri. Inductance: 8,97 H

• Type: Cancap
• Capacitance: 40 + 20 + 20 + 20 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 40 mm x 50 mm
• Termination Style: radial, solder-lugs

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
