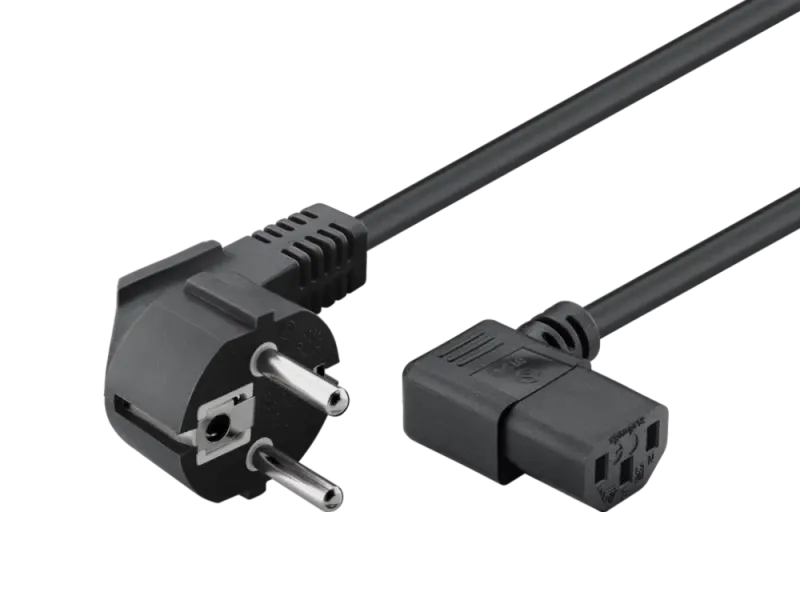

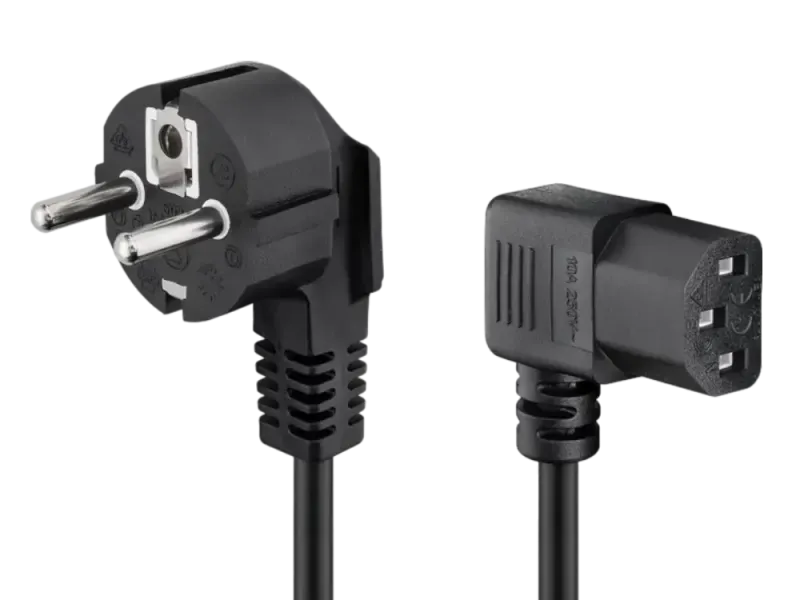

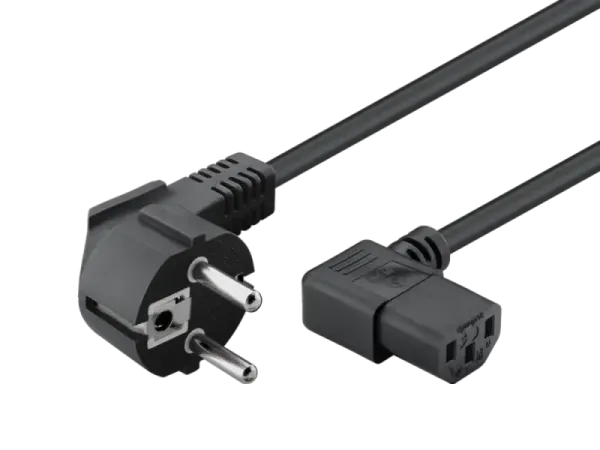

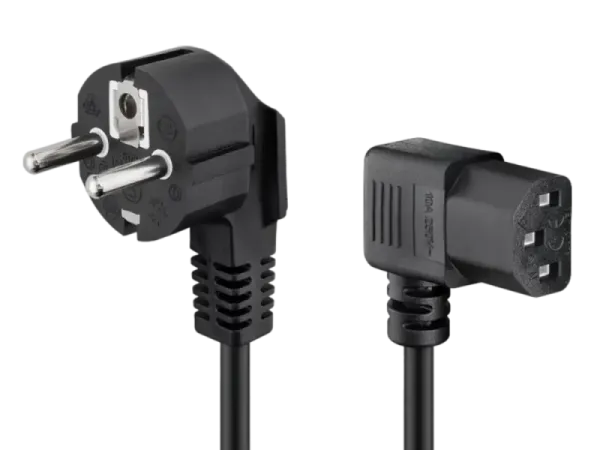

Power Cord 0,5 m, black

• Mounting caps: Steel, nickel plated
• Color: Brown
• Including mounting hardware and screws

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Color and texture like the "Marshall Bluesbreaker" Grillcloth
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

• Color: #17 almond / black
• Material: 1,5mm Transplay
• Front

• Size (W x H): ca. 100 x 75 cm (only available in this size)
• Material: 100 % Polyamid
• Price per pcs.
• Actual shades may vary.

• Ø 2.5 mm
• 2 m piece

• Material: Phenolic
• Shaft Size: 6 mm, knurled
• Size: 19,5 x 15,3 mm
• Mounting: Push-On, no D-Shaft

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.
