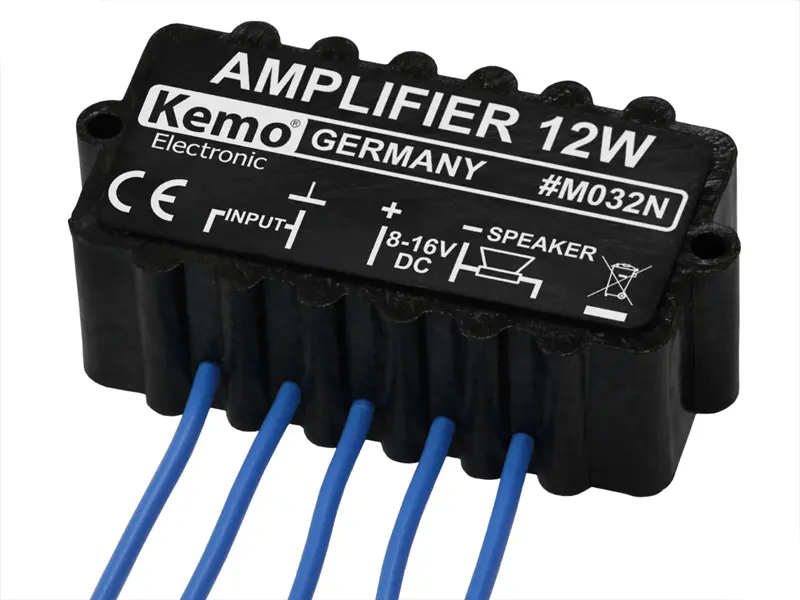

Power amplifier module 12 W universal

Mobile Preview: Power amplifier module 12 W universal

Description

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.

Operating voltage: 8 - 16 V/DC
Current consumption: max. 800 mA
Input sensitivity: < 80 mV

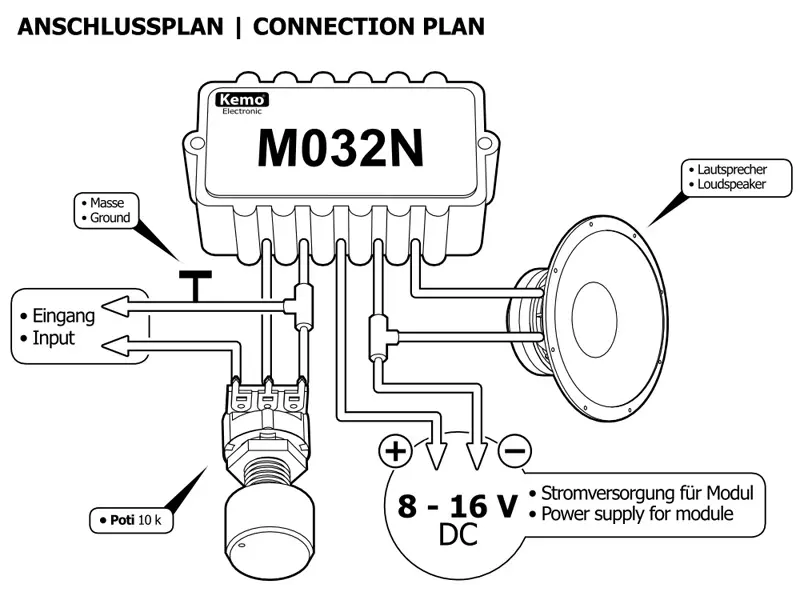

Loudspeaker connection: 4 - 16 ohm
Music power: max. 12 W with 16 V at a 4-ohm loudspeaker
Frequency response: approx. 40 - 20.000 Hz

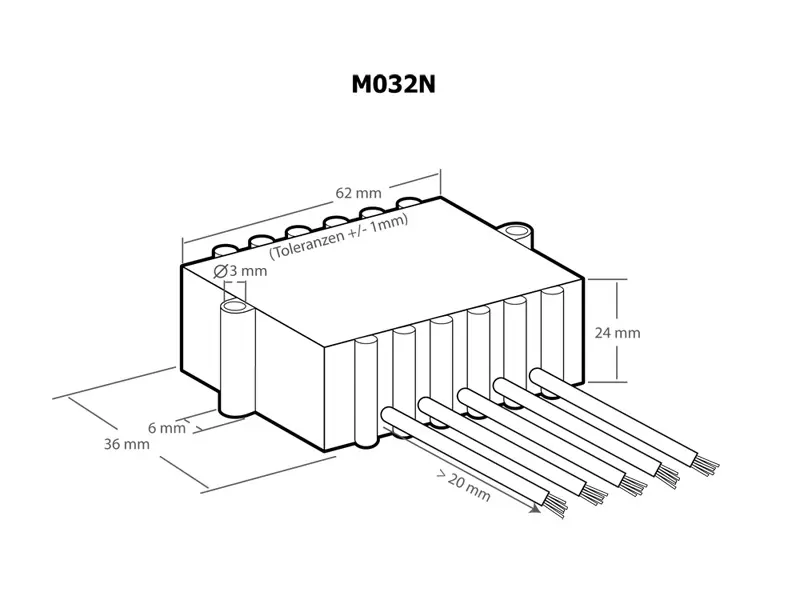

Dimensions: approx. 70 x 36 x 23 mm (without fixing straps)

Manufacturer

Herstellerinformationen | Manufacturer Information
Kemo-Electronic GmbH
Leher Landstraße 20
27607 Geestland-Langen
Germany
http://www.kemo.de
