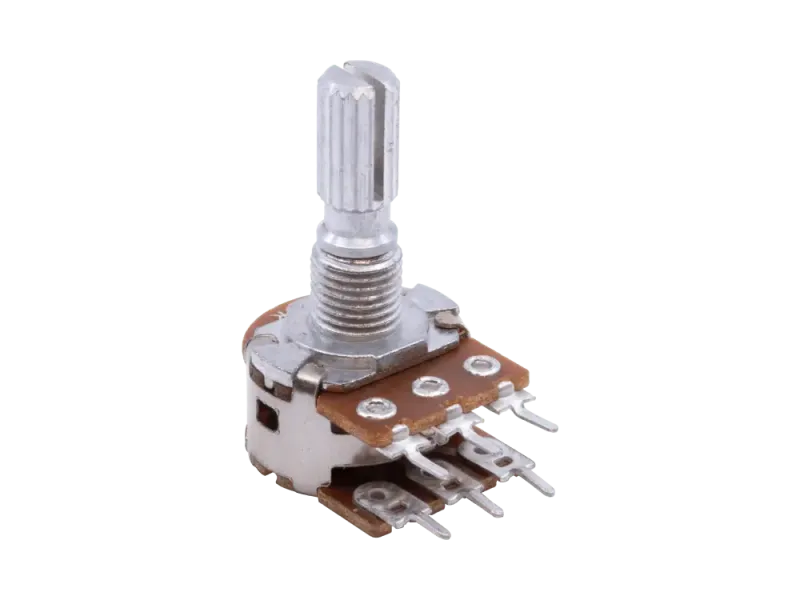

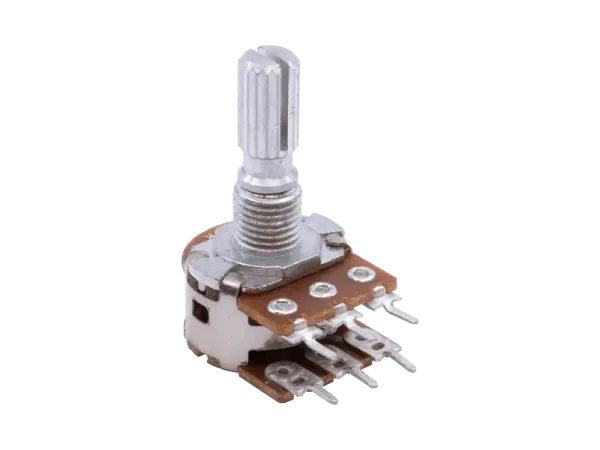

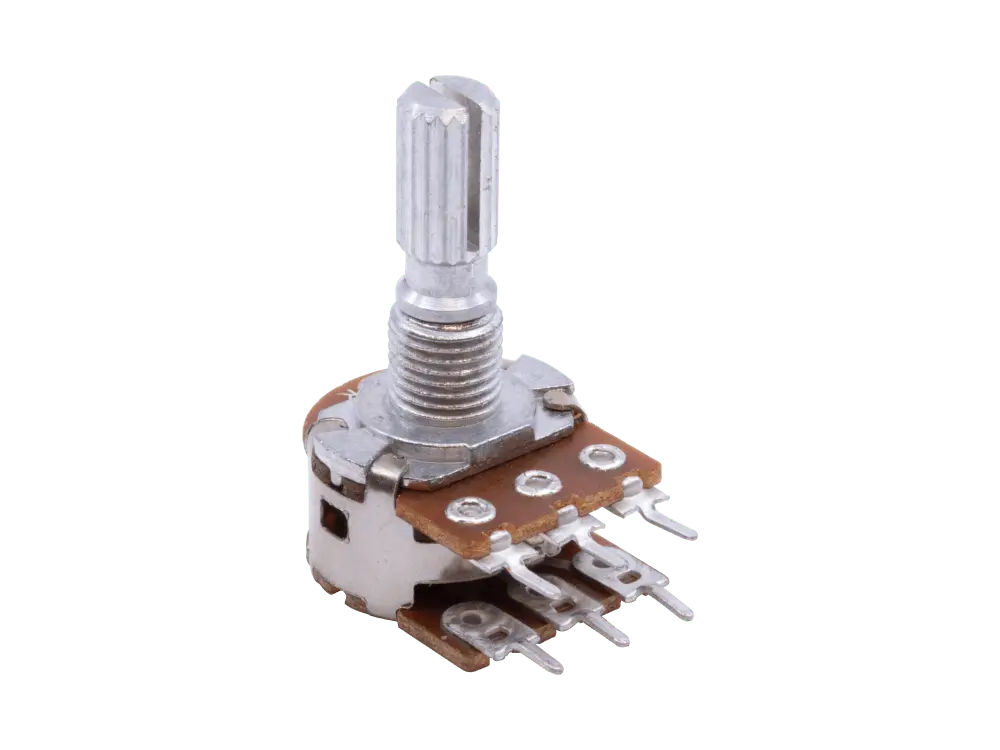

Potentiometer für Marshall JCM900, 2x10k linear, Dual

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 18 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 220 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 15 mm x 20 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Electrolytic capacitor
• Capacitance: 470 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

• Soft Recovery Ultrafast Rectifier
• Maximum repetitive peak reverse voltage: 1000V
• Maximum average forward rectified current: 3,0 A

Files:

• Datasheet

Retainer for 6550 / KT88 Tubes
