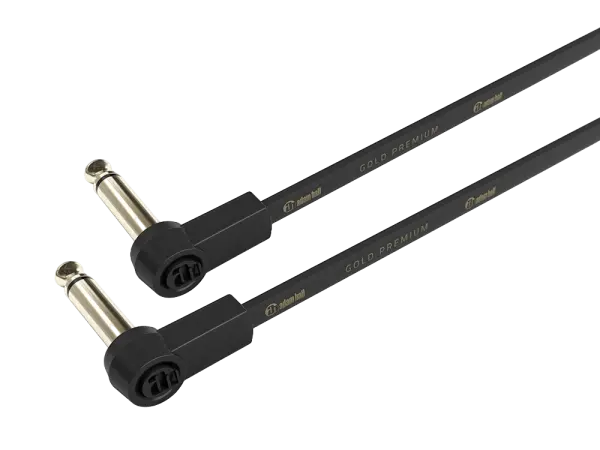

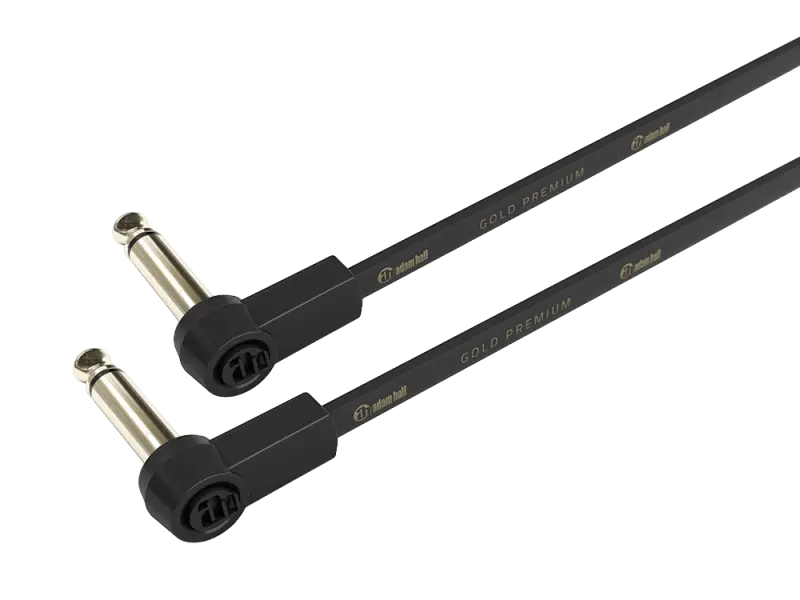

Pedalboard Patch Cable angled Jack, low profile , 0,6 m

• Switchcraft RCA phone jack 3501FRX
• rear mounted

Wall thickness max: 1,6 mm
Cable diameter: 8,3 - 9,1 mm
Material: PA 6.6, UL 94 V-2
Color: black
Operating temperatures: –35 to +105 °C

Wall thickness max: 1,6 mm
Cable diameter: 6,4 - 7,4 mm
Material: PA 6.6, UL 94 V-2
Color: black
Operating temperatures: –35 to +105 °C

The holds and carries the lines torsion safely and stably It consists of an upper and lower sections, which are connected with a strap. This facilitates the handling and protection against loss of one of two parts.

• Cable diameter: 7,5 - 8,5 mm
• Material: Polyamide 6.6 (PA66)
• Temperature range: -40 - +85 °C
• Color: black

The holds and carries the lines torsion safely and stably It consists of an upper and lower sections, which are connected with a strap. This facilitates the handling and protection against loss of one of two parts.

• Cable diameter: 6,5 - 7,7 mm
• Material: Polyamide 6.6 (PA66)
• Temperature range: -40 - +85 °C
• Color: black

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet
