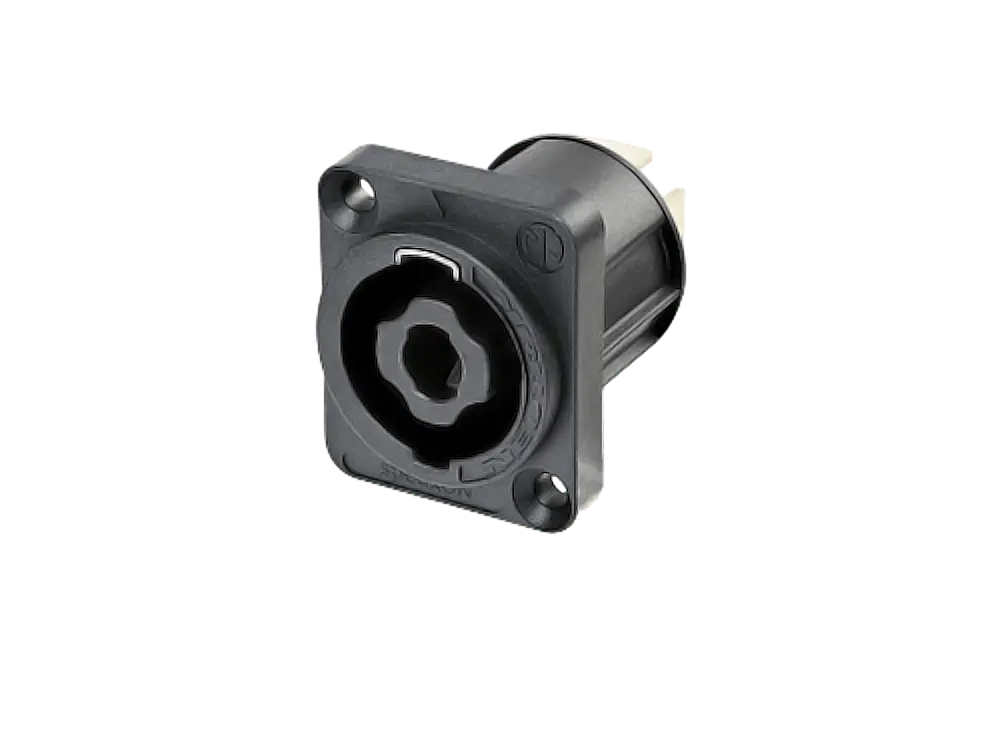

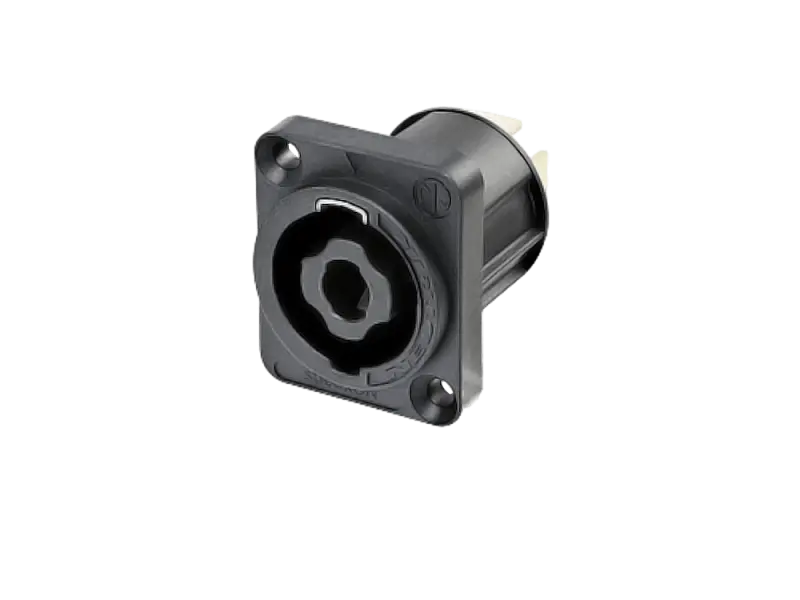

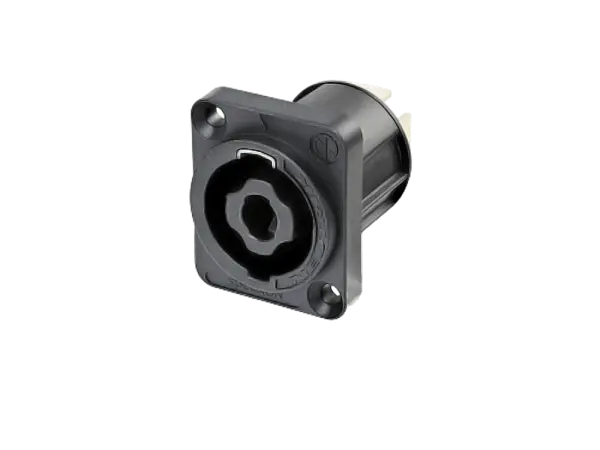

Neutrik SpeakON NL4MP

NL4MPXX

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.

Features & Benefits

Contact resistance: ≤ 2 mΩ
Dielectric strength: 2.8 kVac
Insulation resistance: >0.1 GΩ (after dampheat)
Rated current per contact: 25 A rms continuous (audio rating signicantly higher, depending on signal)
Rated voltage: 250 V ac
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Lifetime: > 5000 mating cycles
Termination: 3/16" (at tabs (e.g. NLFASTON)
Locking device: Quick Lock
Chassis shape: D
Layout standard hole position, thru holes

Files:

Datasheet

Manufacturer

Herstellerinformationen | Manufacturer Information
Neutrik EMEA GmbH
Marie-Curie-Strasse 2
85221 Dachau
Germany
eMail neutrik.emea.de@neutrikgroup.com
