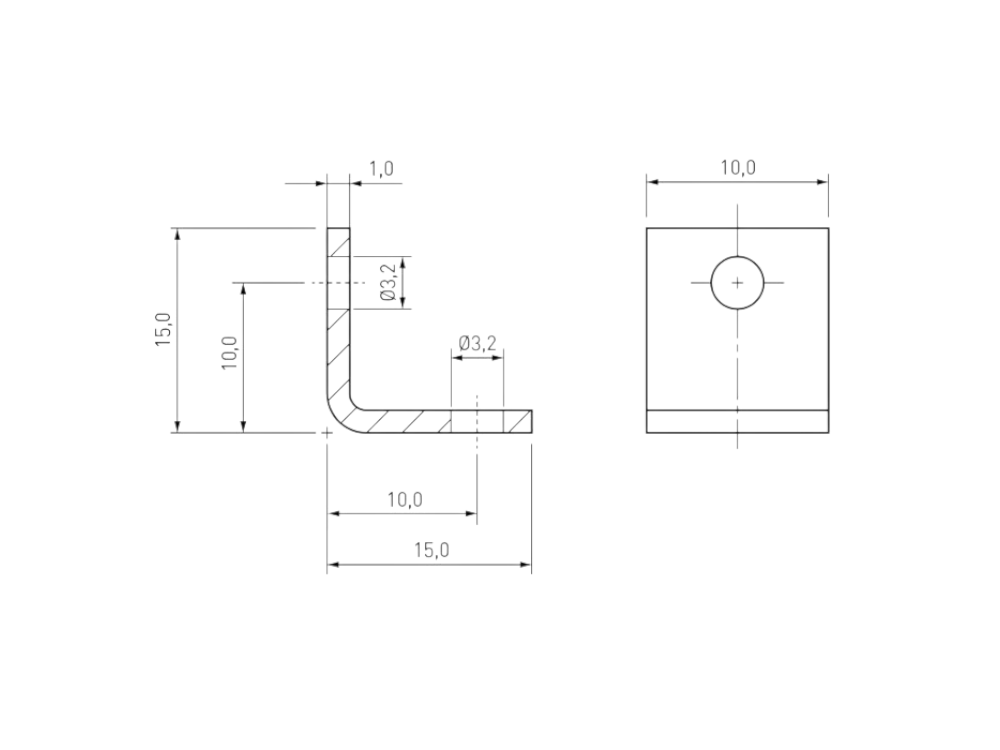

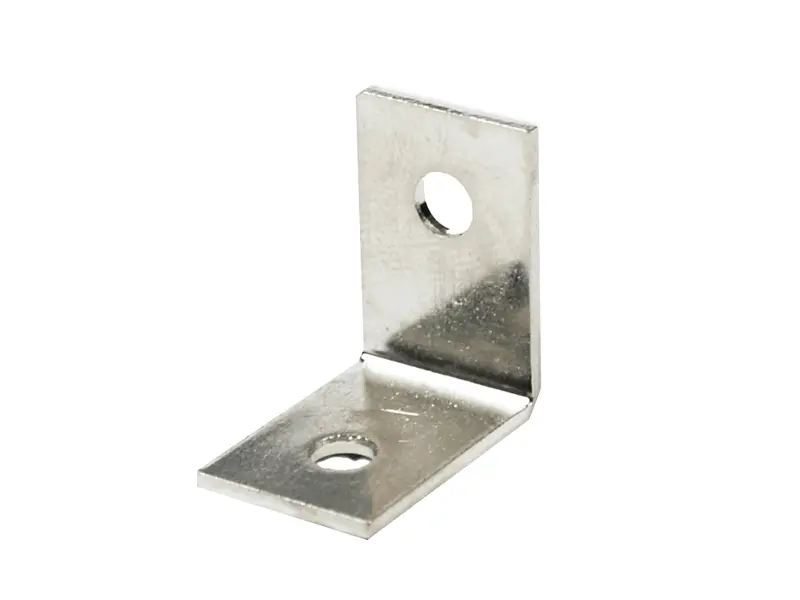

Mounting bracket 15 x 15 mm

• Type: Noval Socket
• Version: Ceramic Chassis mount
• w/ mounting bracket
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• Type: Synth Pointer
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: d=16 mm, h = 11,8 mm
• Mounting: Set Screw, Brass Insert

• Type: Synth Pointer
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: d=16 mm, h = 11,8 mm
• Mounting: Set Screw, Brass Insert

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw

made of nickel-plated brass
Hole diameter: 3.2 mm
Width: 10 mm

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 10 mm
• Pack of 4

• Material: polyamide
• Color: black
• Wall thickness:    max. 3.2 mm
• Mounting hole diameter: 11.1 mm
• Head diameter: 13.5 mm
• Overall covered length: 10.3 mm
• Operating temperatures: max. +105 °C

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet
