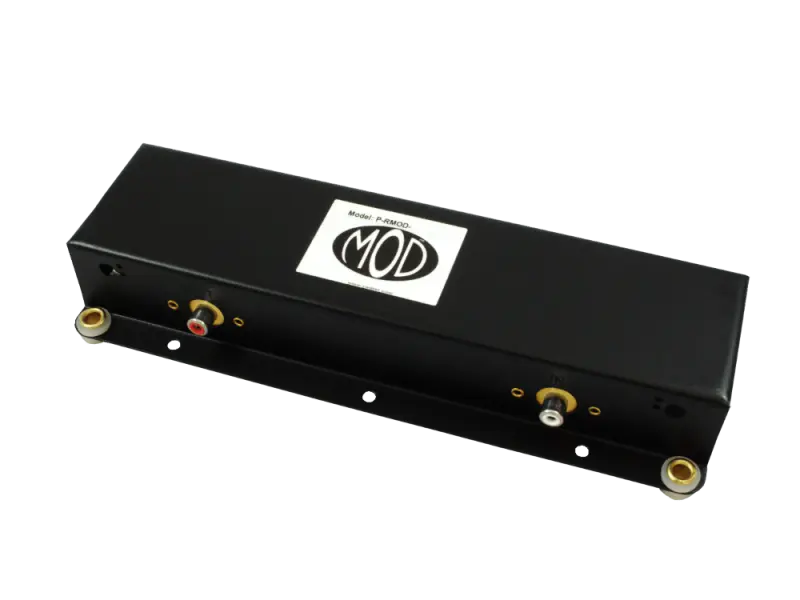

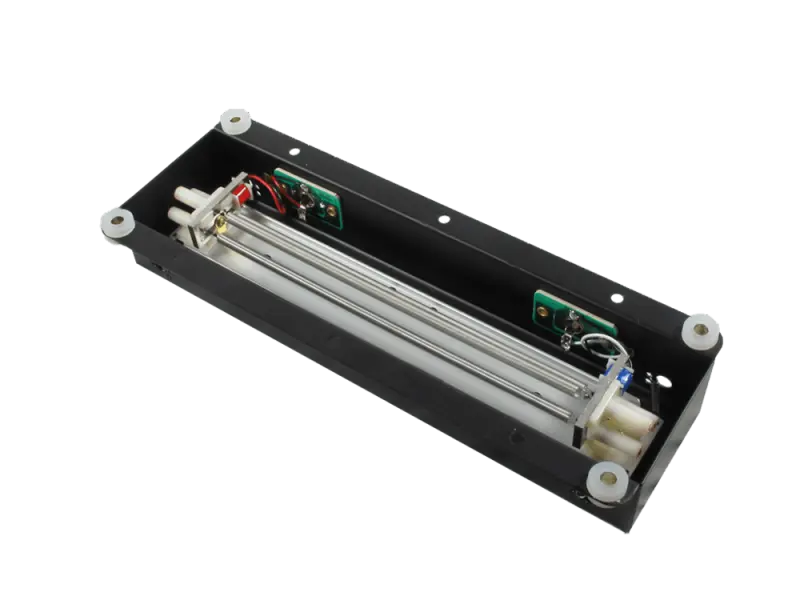

MOD Reverb Tank 8FB3C1B

• Delay Type: short
• Size: short
• Input: 10 Ω
• Output: 2,575 Ω
• Connectors: Input grounded/output grounded
• Locking: No lock
• Mounting: Horizontal/open side down
• Accutronics by Accu-Bell, Made in Korea

Dish - Punched for 2 jacks. Material: 1.2 mm Steel, black powder coated.

Cutout 65 x 106 mm. Fixing holes Ø 5 mm. Weight: 125g

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023)
• Steel nickel plated
• Internal radius: 12 mm
• 16 x Screws with extra flat head, silver

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet

• Power Jack with built-infuse holders 5.0 x 20 mm
• Housing: polyamide
• for snap-on mounting
• Double-pole + protective ground 10 A / 250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1

Building on the popularity of our G12C, we developed the G12Q for those times when you want the speaker to add some natural, vintage breakup but maintain clarity.  With a 20 oz magnet and a 1" voicecoil, the G12Q definitely has a vintage American flavor.  We highly recommend it with 5E3 style circuits.

Thiele-Small Parameters

• Resonant Frequency (Fs):91.91 Hz
• DC Resistance (Re): 7.70 Ohm
• Coil Inductance (Le): 0.26 mH
• Mechanical Q (Qms): 20.75
• Electromagnetic Q (Qes): 2.64
• Total Q (Qts): 2.35
• Compliance Equiv. Vol. (Vas): 22.17 cu ft
• Mech. Compliance of Susp. (Cms): 0.12 mm/N
• BL Product (BL): 6.57 T-M
• Diaphragm Mass Inc. Airload (Mms): 25.71 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 95.92 db

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm
