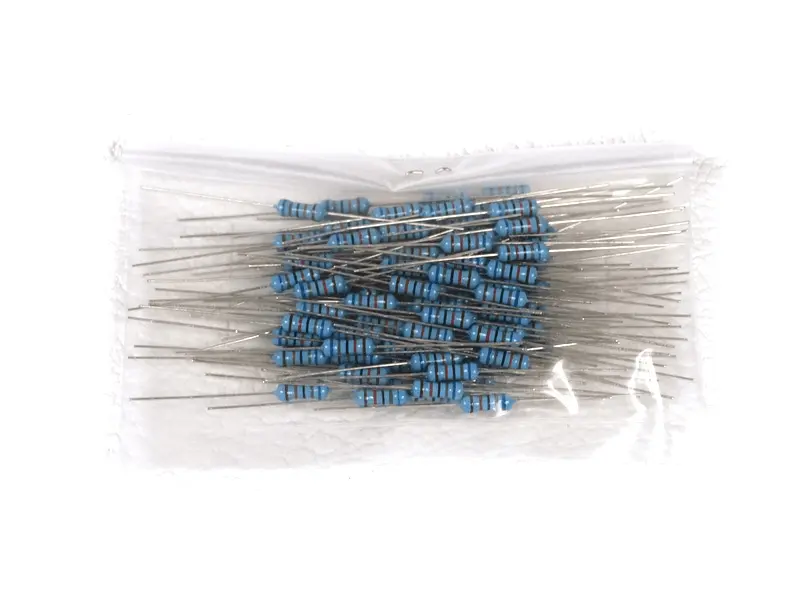

Metalfilm Resistor 1 Meg Ohm / 1% / 0,5 W, 100 pcs.

Faceplate LoW Jim

• Color: #LG10 Gold GLOSSY lecquered
• Material: 1.5 mm Acyrl Revers
• Front + Back Panel

Files:

• Template

Carbonfilm Resistor, Bulk pack with 100 pieces.

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

• Soft Recovery Ultrafast Rectifier
• Maximum repetitive peak reverse voltage: 1000V
• Maximum average forward rectified current: 3,0 A

Files:

• Datasheet

Carbonfilm Resistor, Bulk pack with 100 pieces.

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS

Carbonfilm Resistor, Bulk pack with 100 pieces.

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS
