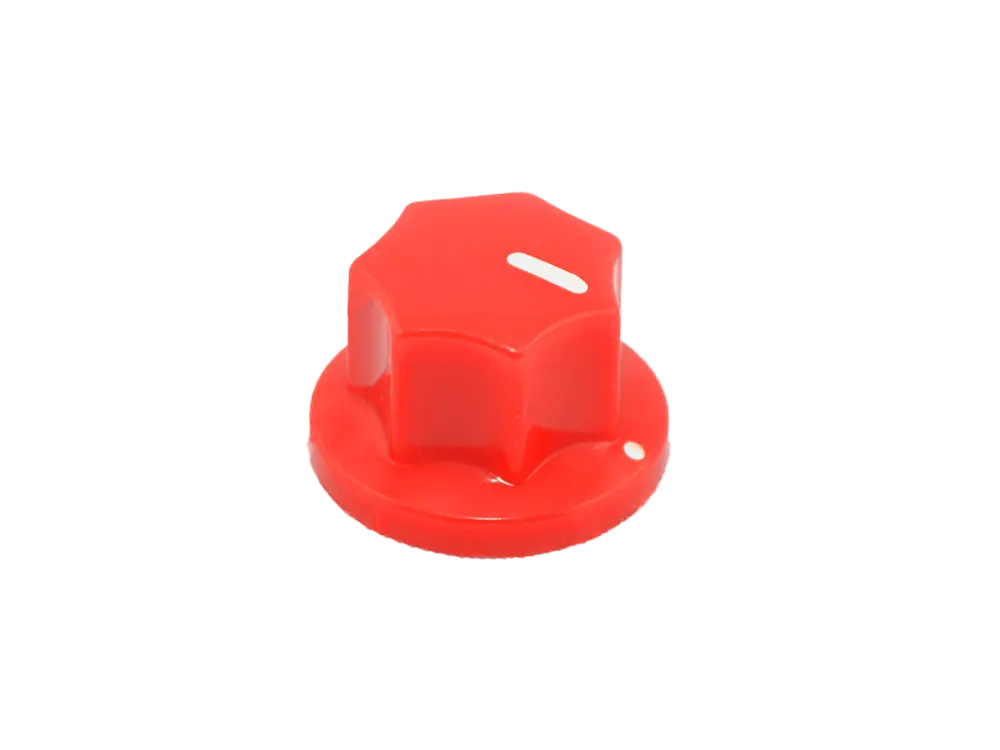

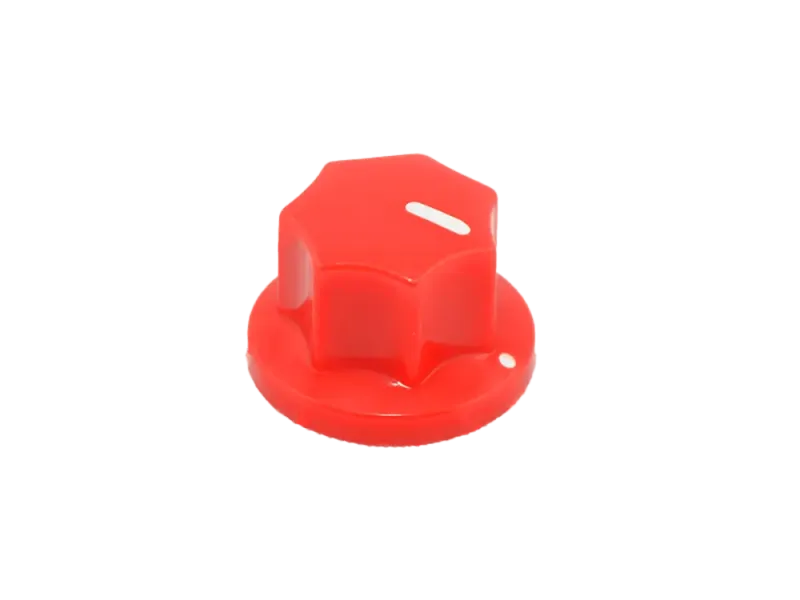

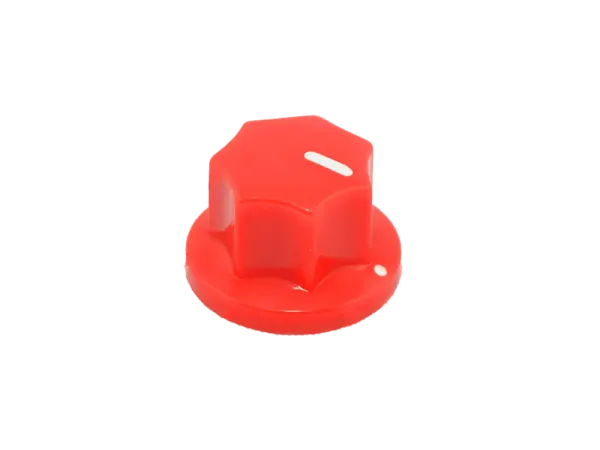

Knob Classic Fluted, red

Mobile Preview: Knob Classic Fluted, red

Description

Material: Phenolic
Shaft Size: 6 - 6,3 mm

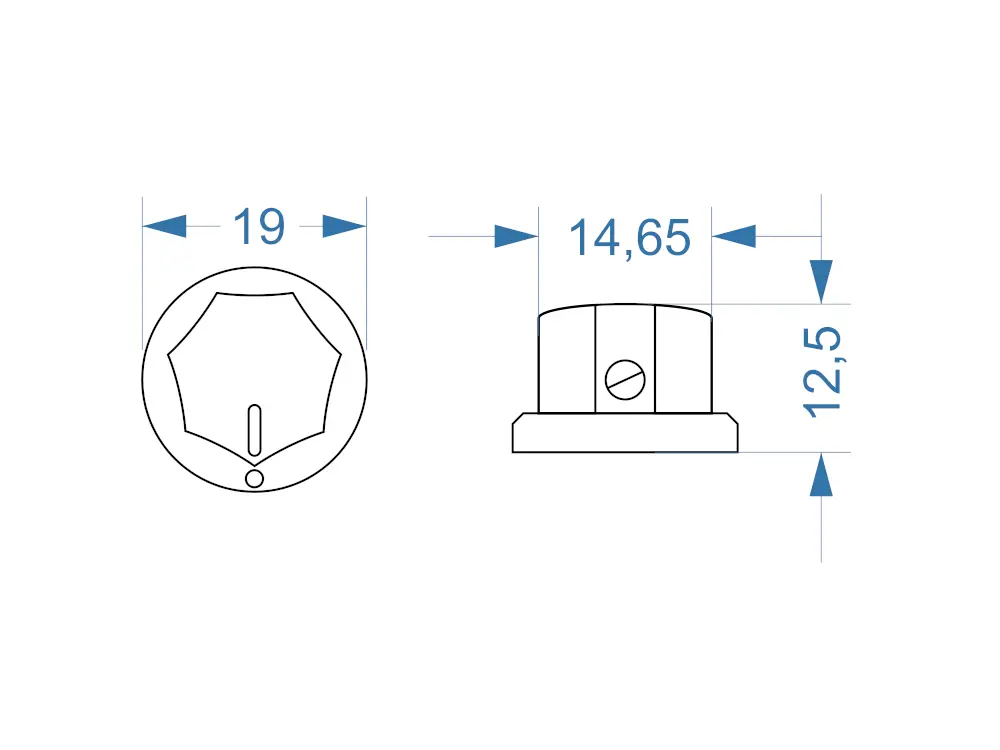

Size:
- Ø: 19
- H: 12,5 mm
Mounting: Set-Screw

Information about the manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.

Needed for:

TT-Kit LX18

Set of componentes for building the TT LX18 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

Tube-Town Powertransformer, Primary 0-120-230-240V @ 50/60 Hz
Tube-Town Outputtransformer
Resistors
Capacitors
Jacks
Light
Wires
Board
Switches
Tubes
Fuses & Fuesholder

NOT INCLUDED:

Chassis
Knobs
Faceplate

We use high quality components for this kit, which are all tested. The kit is offered as is. If other components are desired, then these must be purchased in addition to the kit.

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

... check out Captain Crap's YouTube Sounddemo of the LX18

359,00 €
