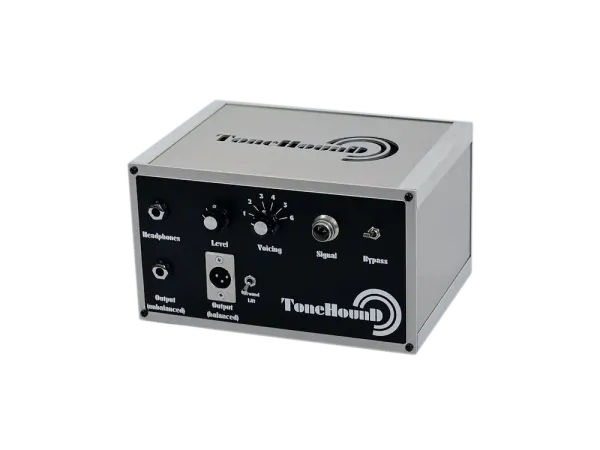

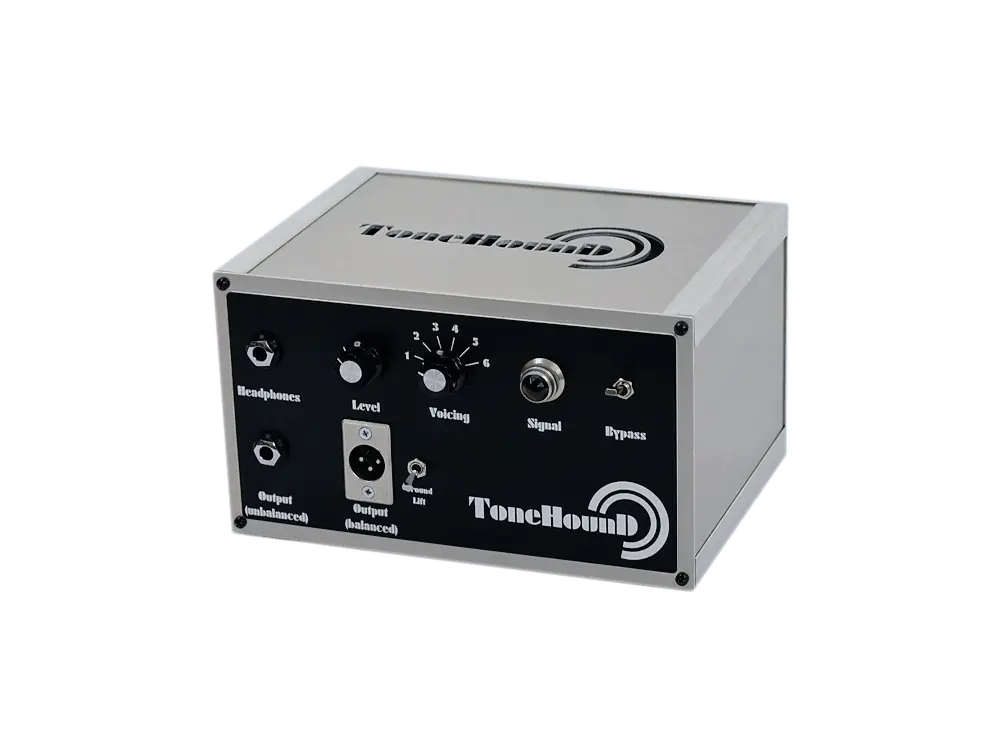

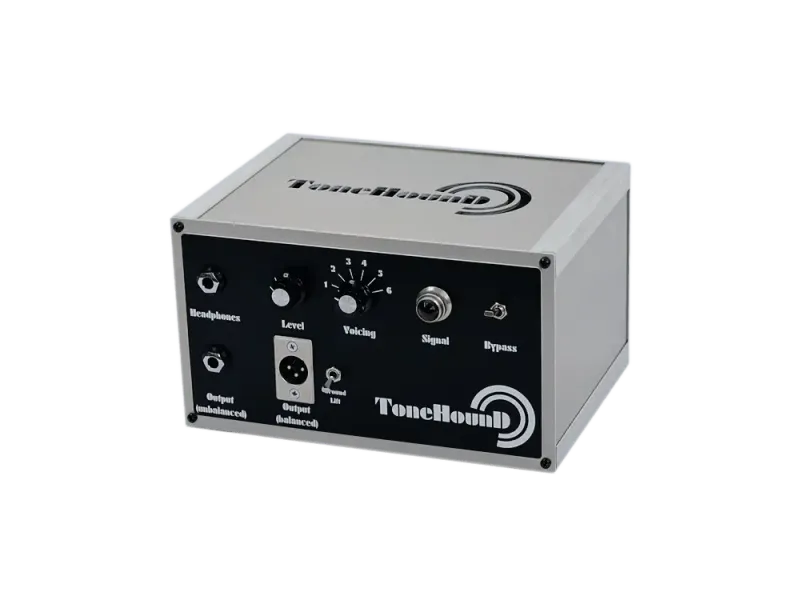

Kit TT Tonehound - 100 W / 8 Ohm

The TT Tonehound is a universal solution for home recording or recording in general. It consists of a reactive load and a speaker simulation. The Tonehound gets connected to a tube amp instead of a speaker, through the integrated cab-sim it can be connected to an audio interface, a recording station or a mixer console.

It is designed to handle up to 100 watts at 8 ohms. The used speaker simulation is our own, which is also available as a separate and independent kit.

The Cab-Sim offers:

6 different voicings
balanced XLR output with switchable ground lift
unbalanced output for 6,3 mm plugs
headphone output for 6,3 mm stereo plugs
switchable true bypass for the cab-sim, the outputs get true line outs
adjustable output signal level

The kit includes all necessary parts for building the Tonehound like pcb, capacitors, resistors, coils, jacks, knobs, screws, wires and an aluminum chassis. The needed tools are a reasonable solder station, screw drivers, flat pliers, a countersink and a little craftsmanship.
Check the >>Project-Page for more pictures !
