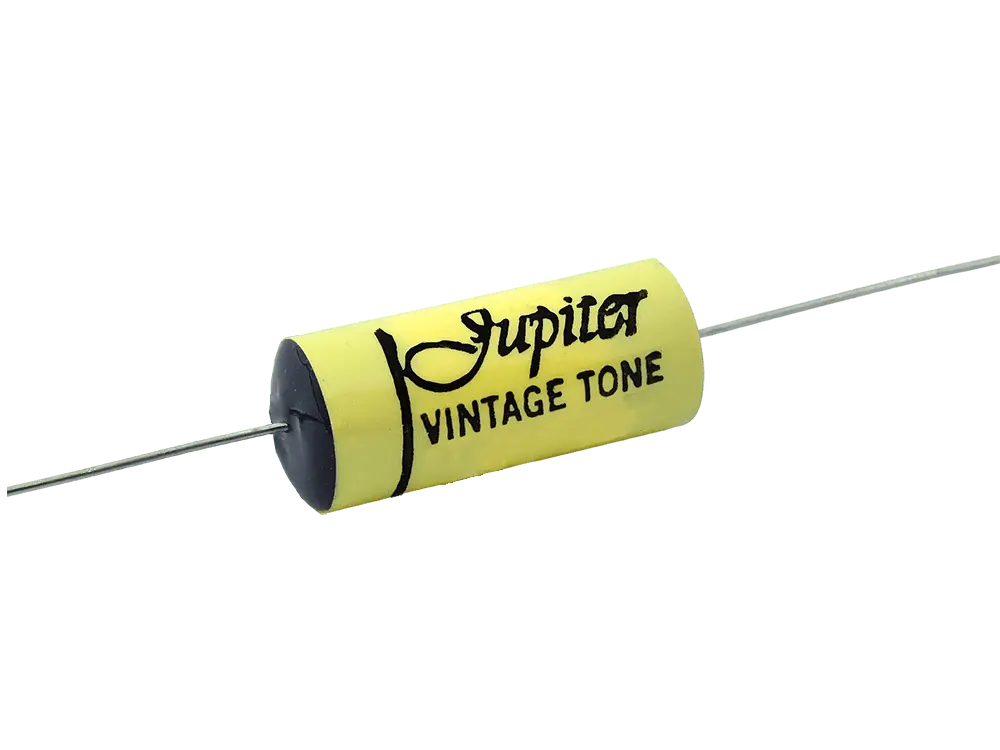

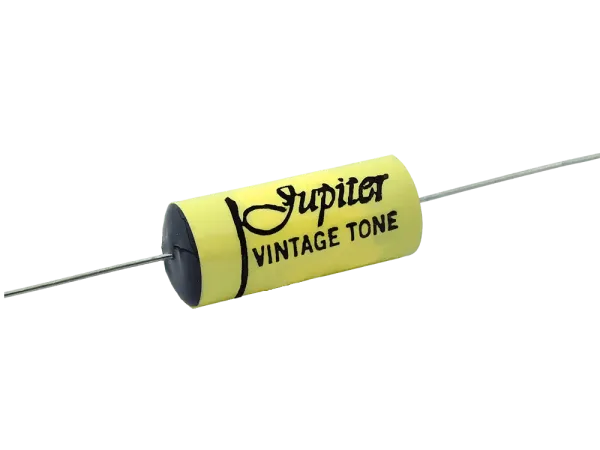

Jupiter Condenser "Vintage" 0,68 µF / 100 V

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

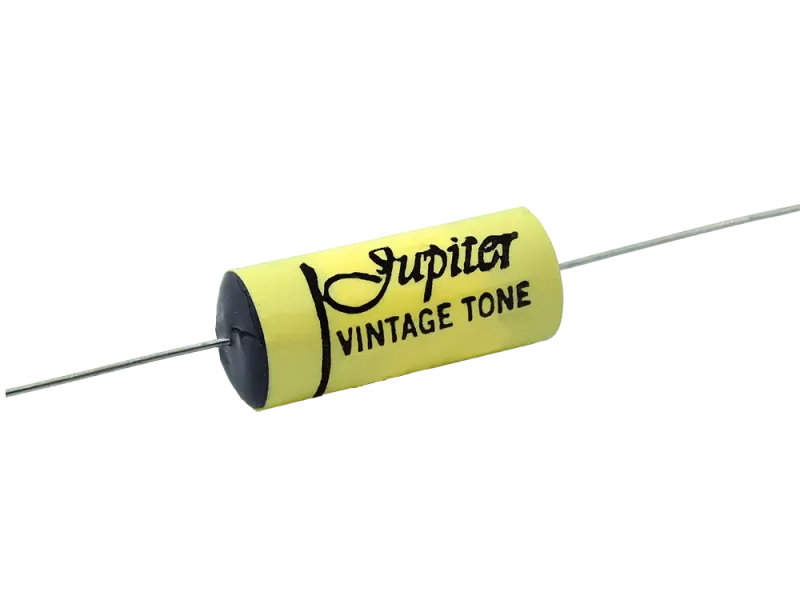

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials
