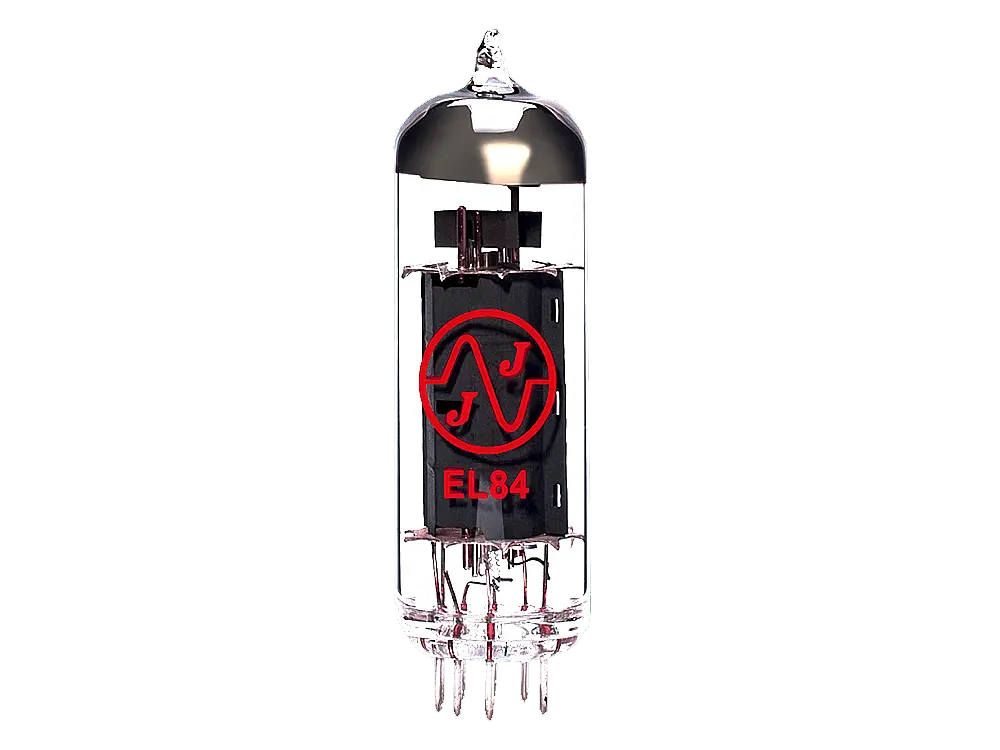

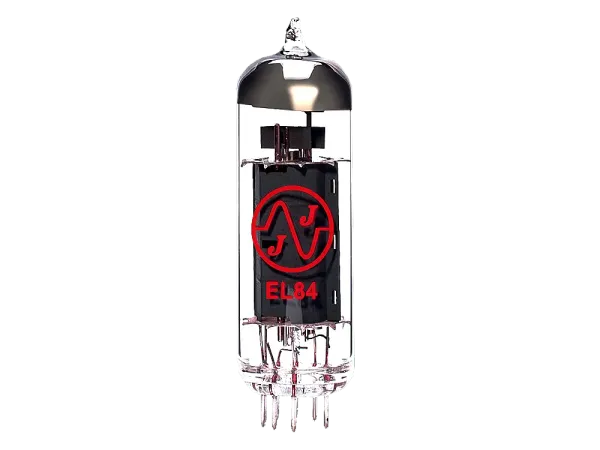

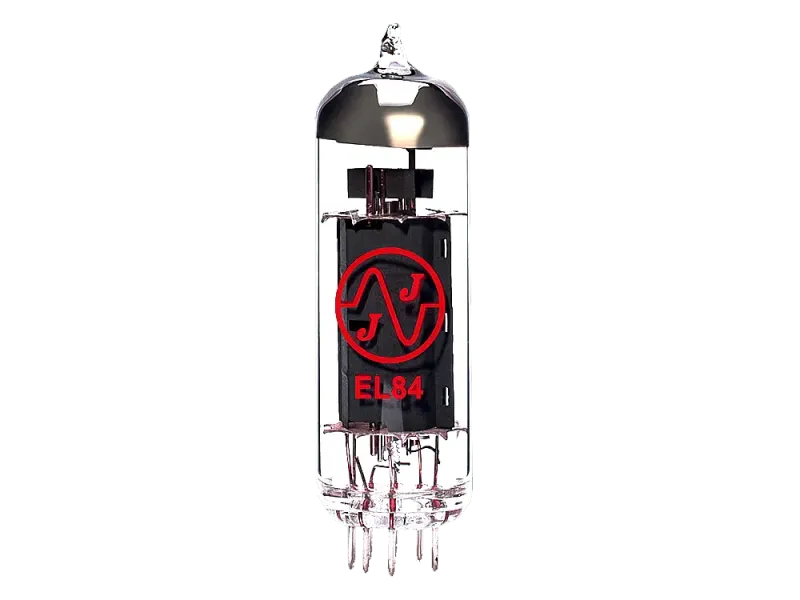

JJ EL84 #07 - VOX AC30 / AC15

4 tubes, matched as quad

JJ EL84 / 6BQ5 Red Label

Files:

• Datasheet

2 tubes, matched as pair

JJ EL84 / 6BQ5 Red Label

Files:

• Datasheet

JJ5Y3S rectifier tube with directly heated cathode. Robust and durable.

Files:

• Datasheet

Polyester Film Capacitors

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 8,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

4 tubes, matched as quad

Military version of the EL84 / 6BQ5 with extended voltage tolerance, as well as a more robust construction and improved anode cooling.
We highly recommend this EL84 for amplifiers where the anode voltage significantly exceeds 300 V.

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

2 tubes, matched as pair

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

Files:

• Datasheet

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

2 tubes, matched as pair

The Sovtek EL84 series produces an unbeatable smooth, warm distortion sound. Excellent replacements in vintage VOX AC-30's and the like, very popular in Fender, Crate and Peavey amps.

• High Power Resistor
• Rating: 8.2 Ohms / 5%
• Power: 100 Watt / 40 Watt without heat sink
• Size: 64 x 47 mm
• Aluminium Chassis
• Norm: MiL-R-18546 E (RE 70)

Great for attenuators, power soaks and dummy loads
Very low background noise
RoHS Compliant

• High Power Resistor
• Rating: 15 Ohms / 5%
• Power: 100 Watt / 40 Watt without heat sink
• Size: 64 x 47 mm
• Aluminium Chassis
• Norm: MiL-R-18546 E (RE 70)

Great for attenuators, power soaks and dummy loads
Very low background noise
RoHS Compliant
