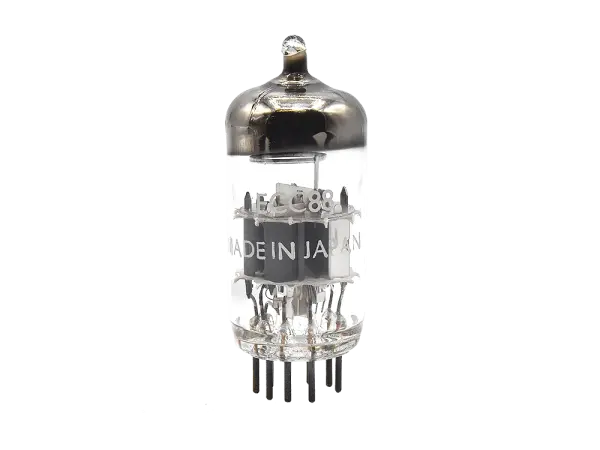

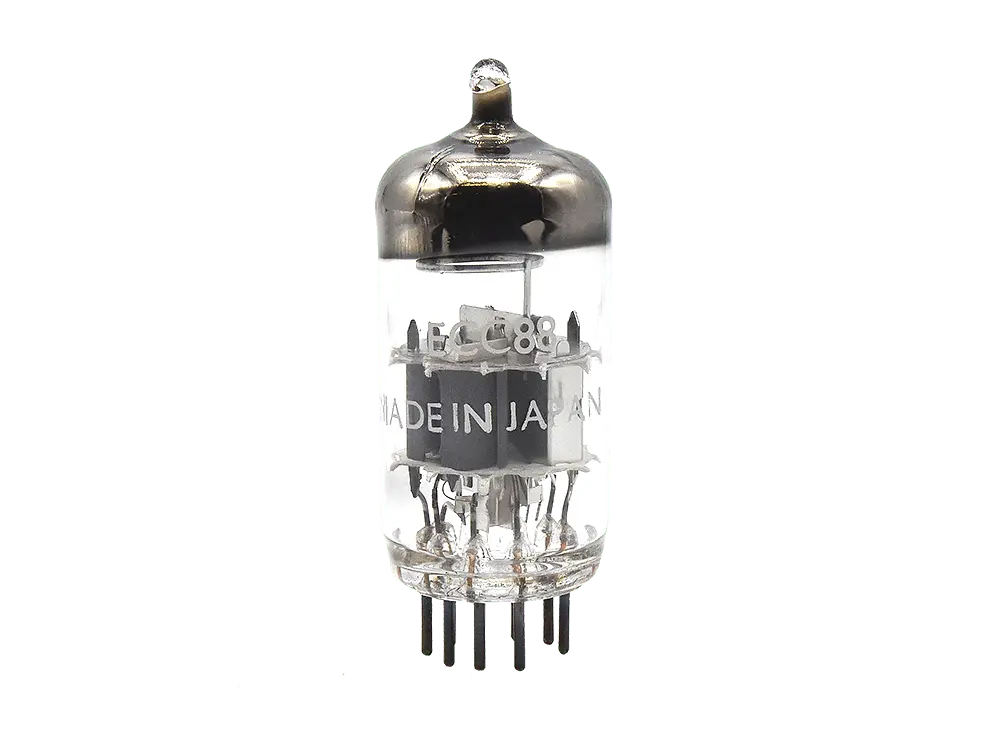

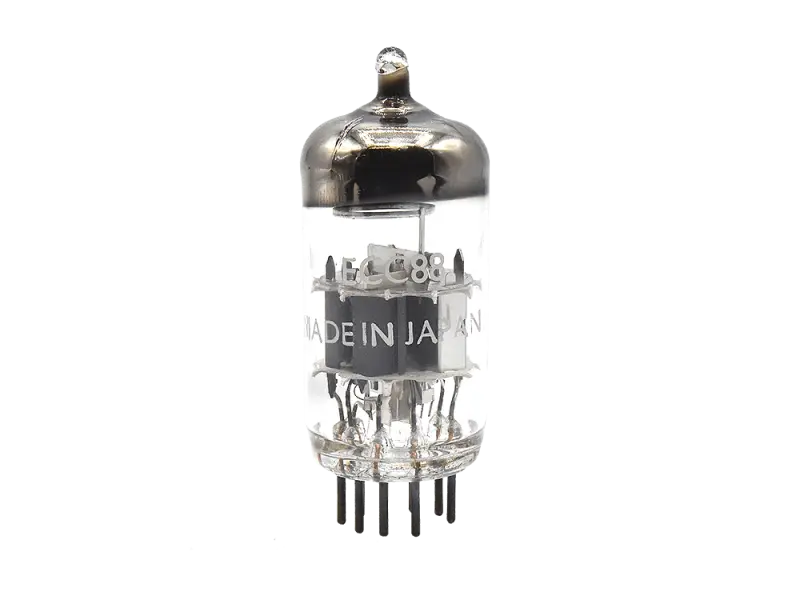

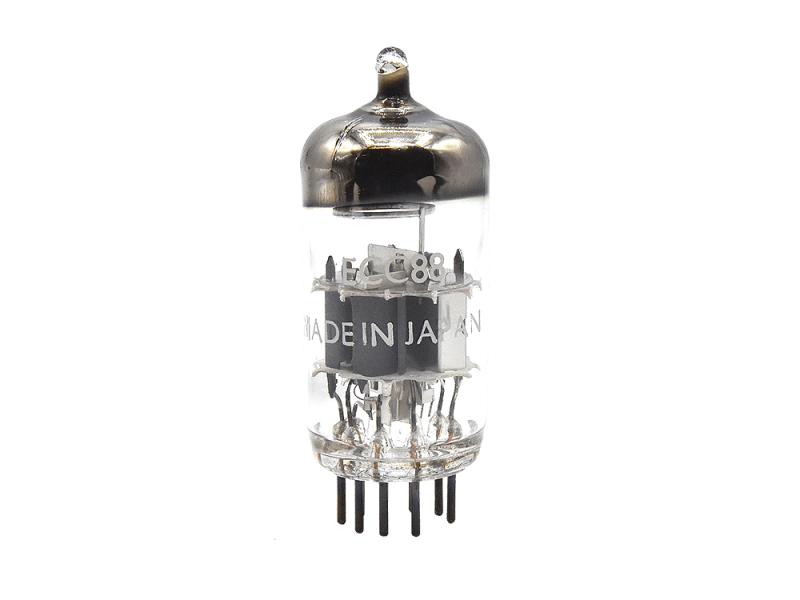

Japan ECC88 / 6922 NOS

Single tube, not matched

Psvane Classic Series EL34 powertube, red logo
Dropin replacement for all EL34 tubes

[content:3210144]
[content:3210145]

ECC82 / 12AU7 medium gain pre-amplifying double triode.
Provides a very smooth sound with well-defined tones suitable for audio and guitar amplifiers.

Gold-Version:
All JJ preamp tubes are selected within a close tolerance and handtested for best sound and quality. Furthermore all pins are gold plated to achieve best electrical contact.
What about the sound ? It is still the famous and well known JJ brownsound - warm and smooth.

Files:

• Datasheet

All JJ preamptubes are selected within a close tolerance and handtested for best sound and quality. Furthermore all pins are gold plated to achieve best electrical contact.
What about the sound ? It is still the famouse and well known JJ brownsound - warm and smooth.

Files:

• Datasheet

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

• Silver-plated Copper wire
• Wire diameter 1 mm²
• Length: 5 m

Original Tesla 6922 / ECC88, NOS
