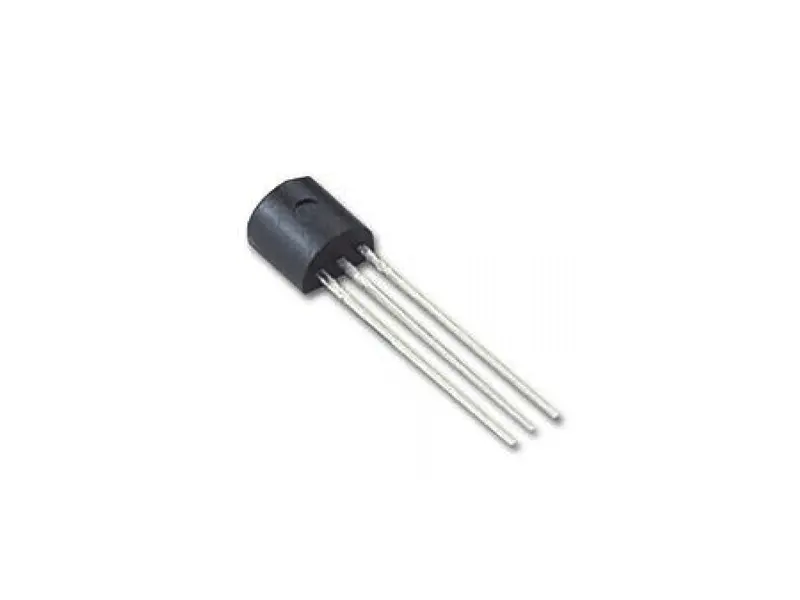

J-FET BF 256B

• Double Relais PCB MAXI
• Size: 54 x 45  mm
• For the use with two Finder Relais 43.41.7  (or relais with similar pin layout).

• Tube-Town EZ-Board
• for channel switching etc.
• Size: 65 x 43 mm

For the use with Finder Relais type 30.22.9xx  (or relais with similar pin layout).
PCB only, no components included. Please see the datasheet for possible setup.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

65 Twin Reverb Potentiometer
Fender®  Part # 003-7596-000

Fender® HotRod Deluxe Potentiometer
Fender# 004-1510-000

2 tubes, matched as pair

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet
