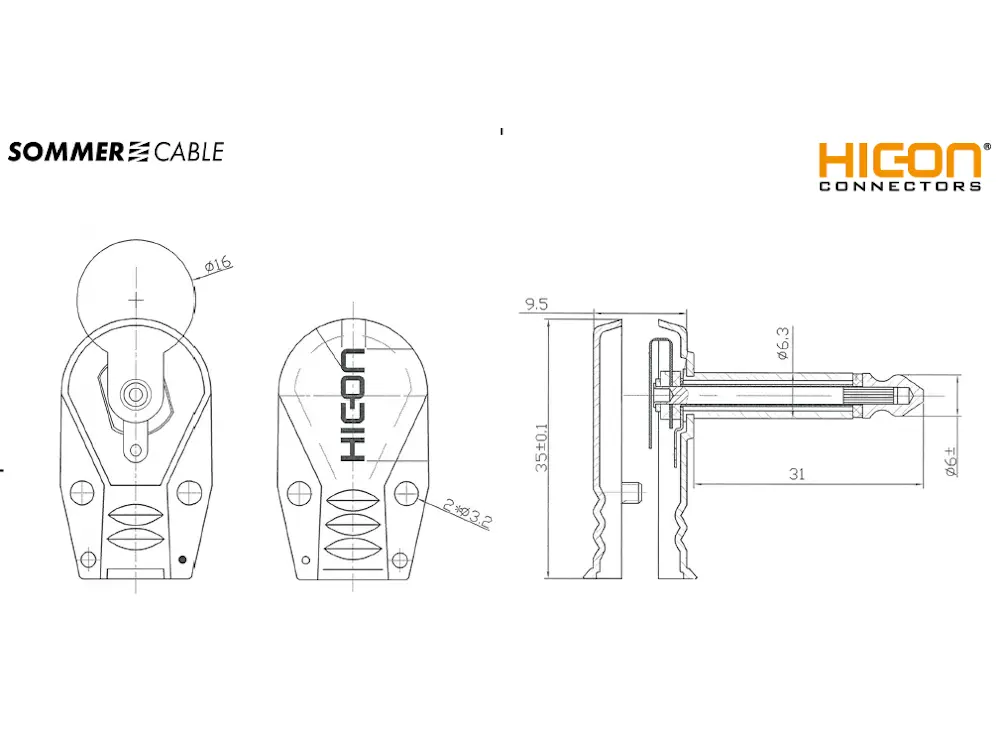

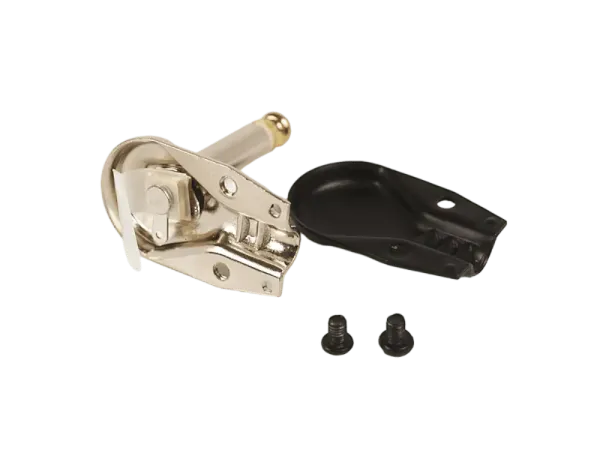

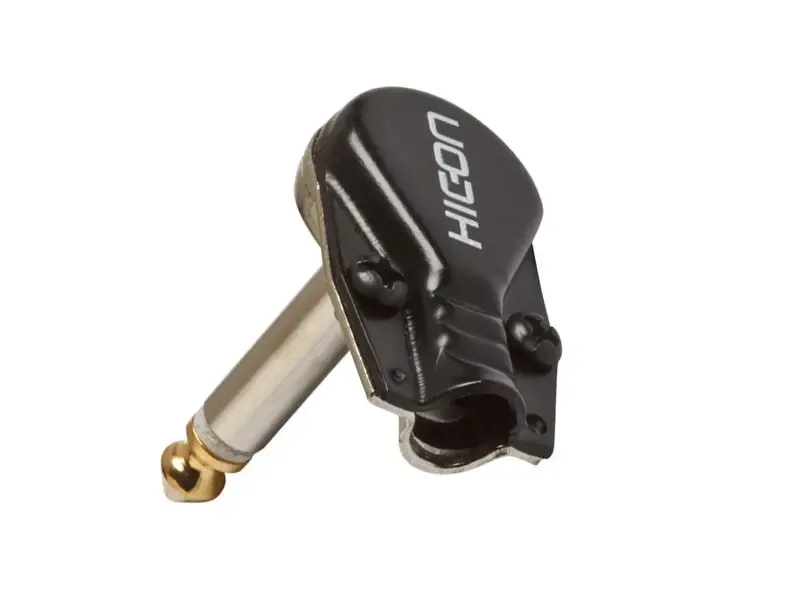

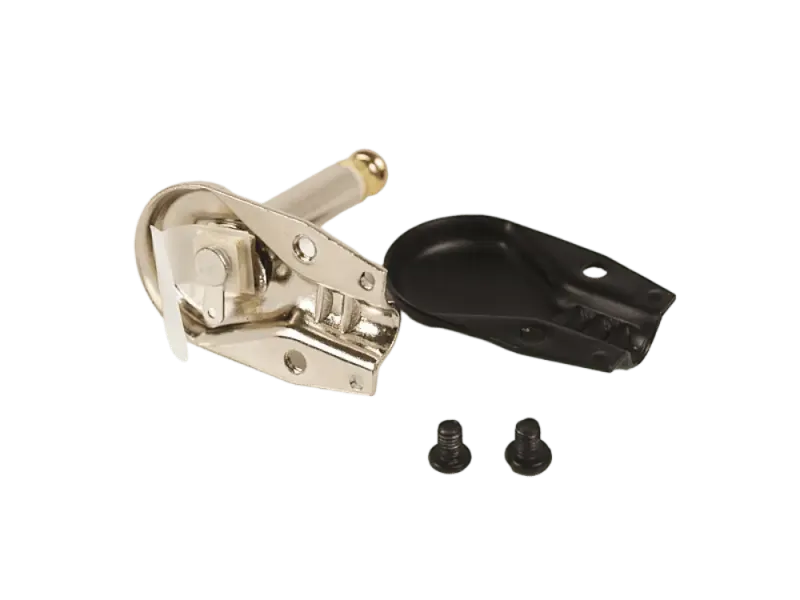

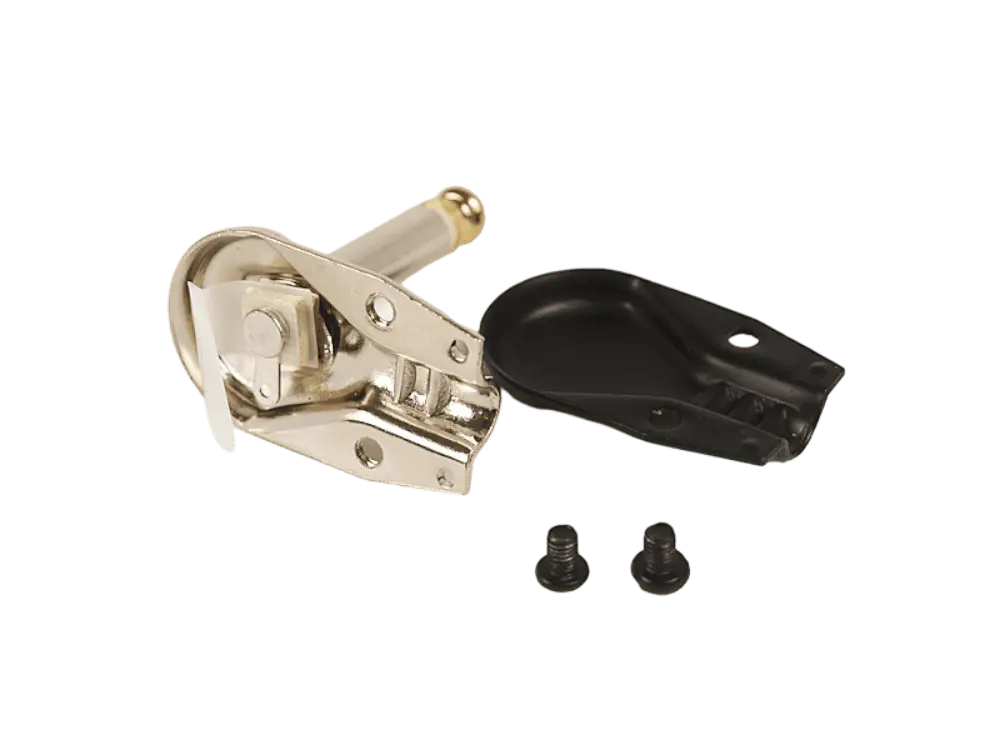

HICON J63MA05, Superflat Jack plug mono, angled, silver

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Type: Multisection Capacitor
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 14 mm x 30 mm
• Termination Style: axial

• Type: Multisection Capacitor
• Capacitance: 32 + 32 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs
