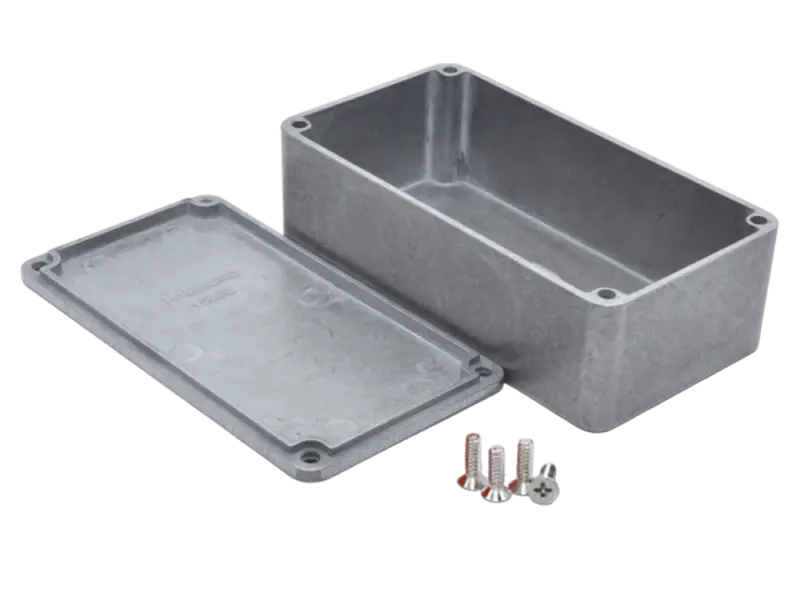

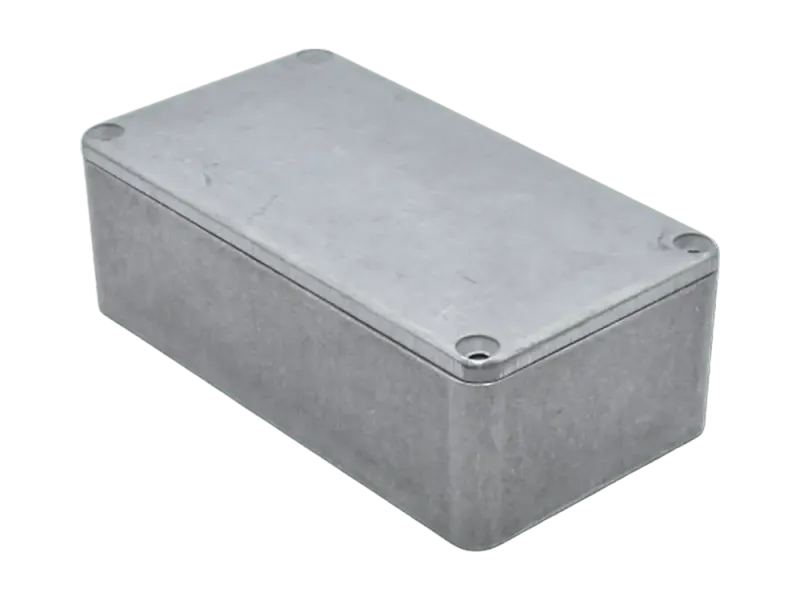

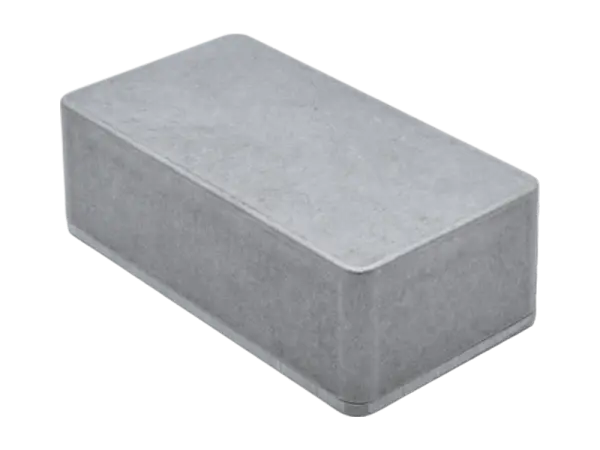

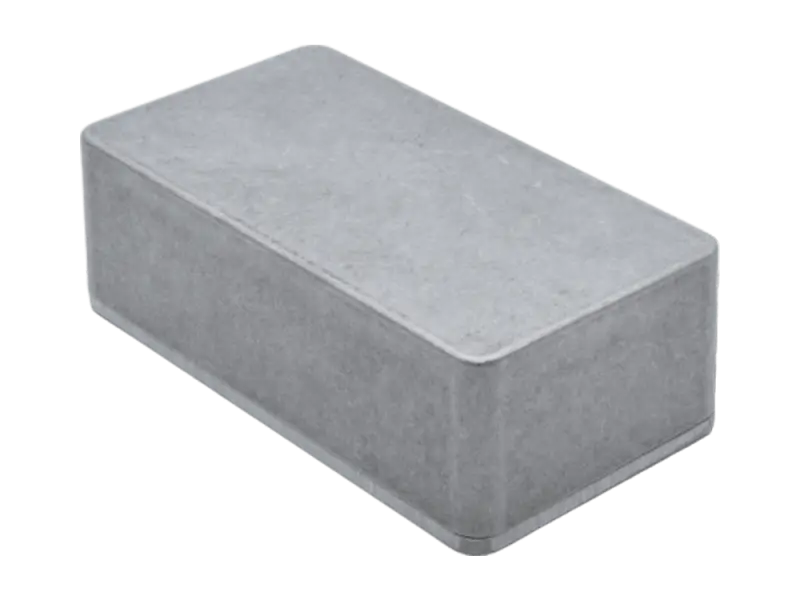

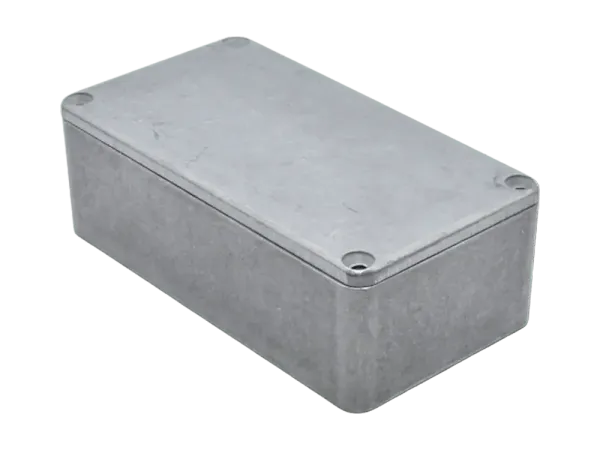

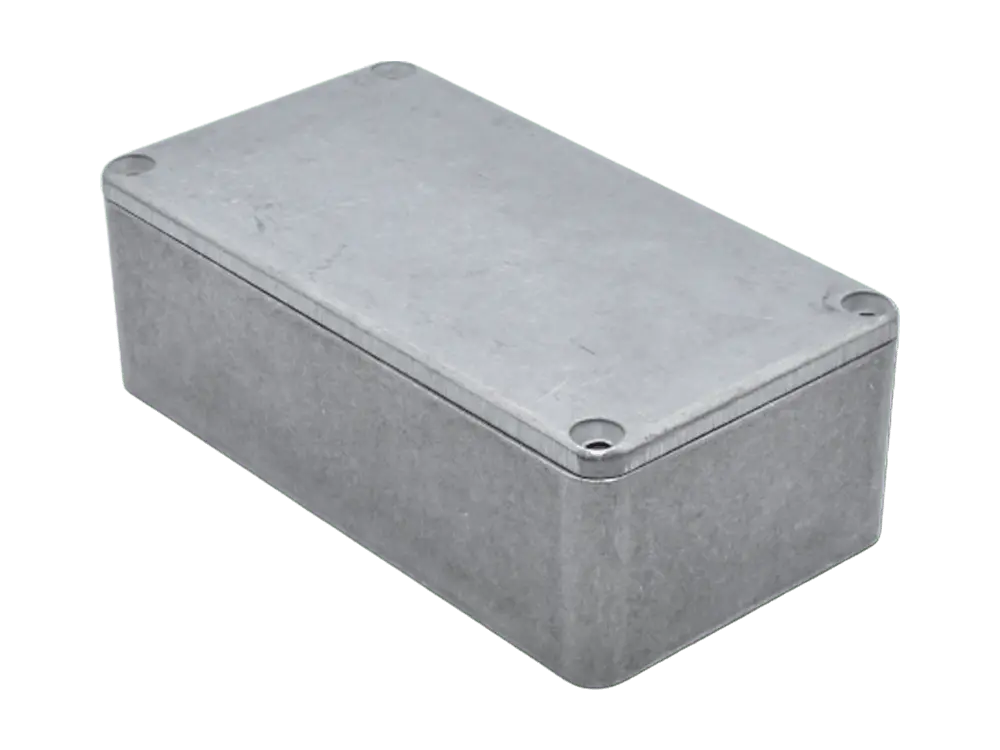

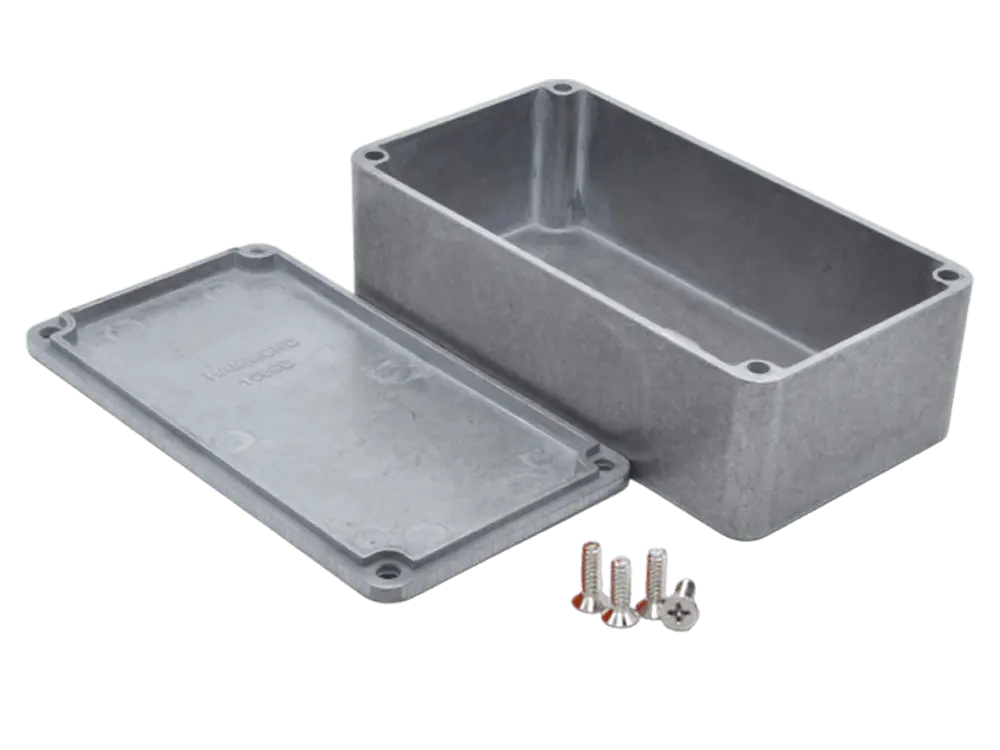

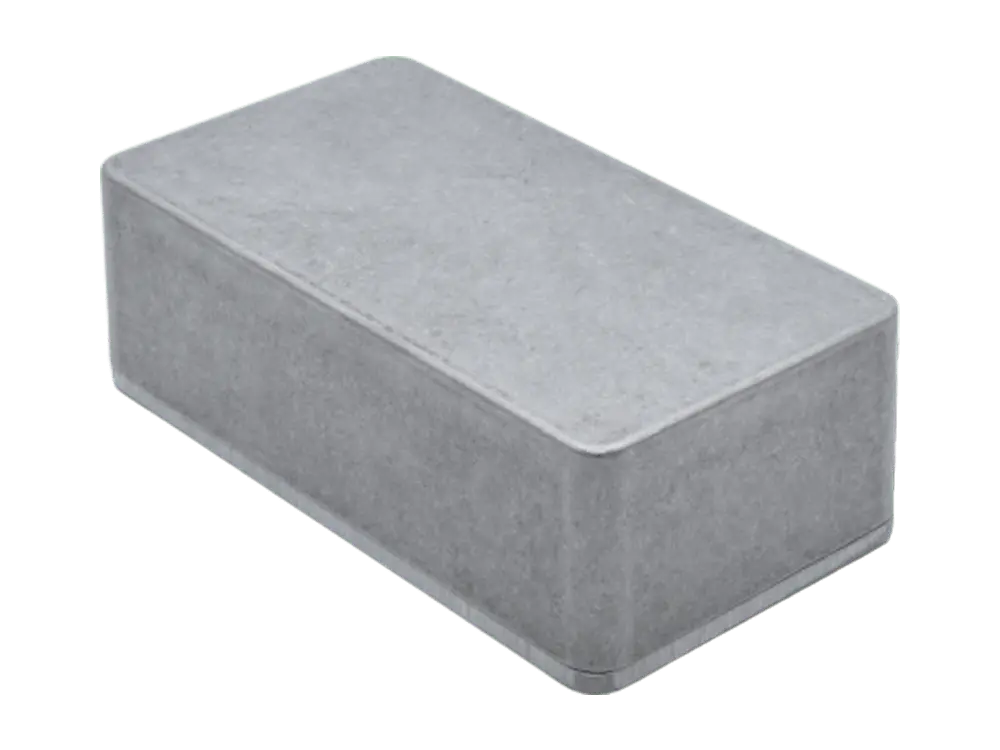

Hammond Diecast 1590B2

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

• 6,3 mm jack
• mono, switched
• Installation diameter: 10 mm

Files:

• Datasheet

• Type: Footswitch
• Version: SPDT latching ON - ON
• max. Rating: 2A / 250 VAC
• Drill Ø: 12 mm
• Termination Style: solder-lugs

• Plastic covered with steel inner core
• End plates gold plated
• Color: Black
• Mounting hardware screws and t-nuts included

Noval Socket - Pack of 5

• Ceramic
• Chassis mount with shield
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7 etc.

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• Type: Alpha Rotary Switch
• Version: 3 pole / 4 positions, non-shorting
• Shaft lenght: 19 mm
• Rating: 0.3 A / 125 V/AC
• Contact resistance: max. 50 mΩ
• Insulation resistance: min. 100 mΩ / 500 V/DC
• Termination Style: solder lugs
• Shaft: 6,3 mm, D-Shaft
• Drill Ø: 8,9 mm

The 10" that thinks it's a 12". This speaker was developed to recapture the legendary sound of Celestion's 1970s 10s - a 10" speaker with a surprisingly meaty tone.Low in output but with the weighty low-end balance of a 12", the G10 Greenback features a complex, creamy mid-range and smooth, vintage top-end.In small combos this speaker adds real class, and when combined in a 4x10 gives rise to a raunchy, full-bodied tone, rich in low-end thump.

Tested by Tube-Town: The Celestion 10" Greenback may not have the sonic range of its big brother - which is of course physically impossible - but it still delivers a full sound that is a bit more restrained in the highs than the 12" Greenback, making it sound rounder and softer in the highs, even with more overdrive in the sound.
All in all, the Celestion 10" Greenback is a true rock and blues speaker that we would use in open cabinets or combos to get the most out of the speaker. Do not use closed cabinets that are too small, as the speaker needs to breathe, otherwise the "British touch" that the speaker has will be lost. The 30 watt power rating also gives the speaker a bit more headroom than the 12" Greenback, making it a bit more flexible to use than the original.

General Specifications

• Nominal diameter 10", 254mm
• Power rating: 30Wrms
• Nominal impedance: Available 8Ω or 16Ω
• Sensitivity: 95dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 14oz
• Frequency range: 95-5500Hz
• Resonance frequency, Fs: 98Hz
• DC resistance, Re: Available 6.4Ω or 12.05Ω

• Cut-out diameter 9.0", 229mm
• Diameter: 10.0", 254mm
• Magnet structure diameter: 4.9", 124mm
• Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 4
• Overall depth: 4.0", 102mm
• Unit weight: 3.5lb, 1.6kg

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet
