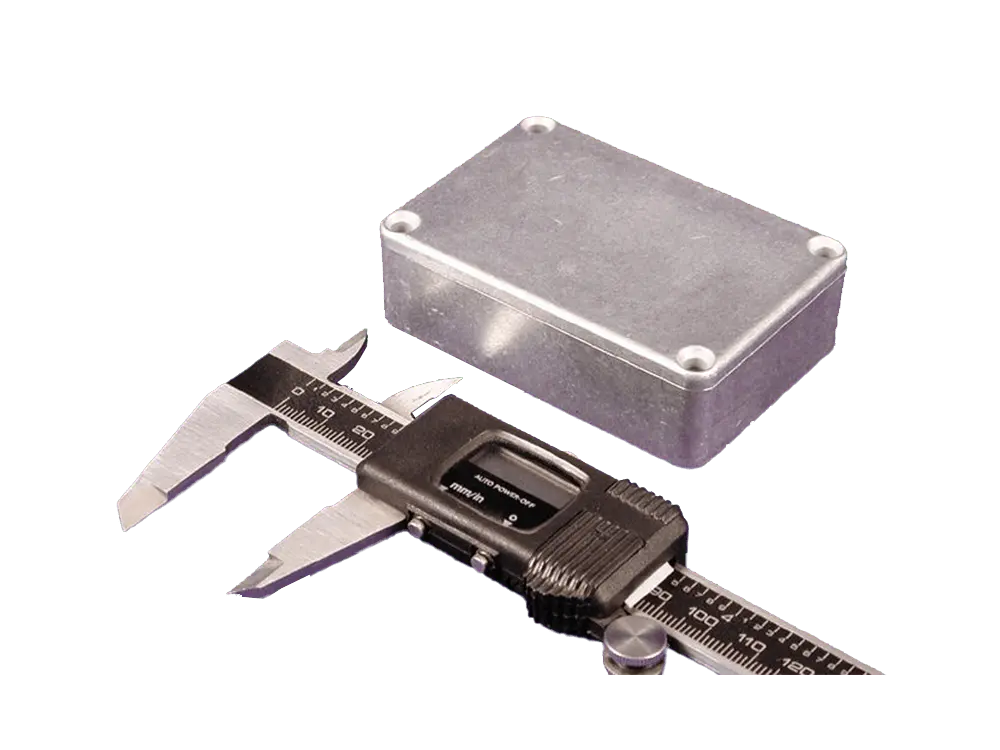

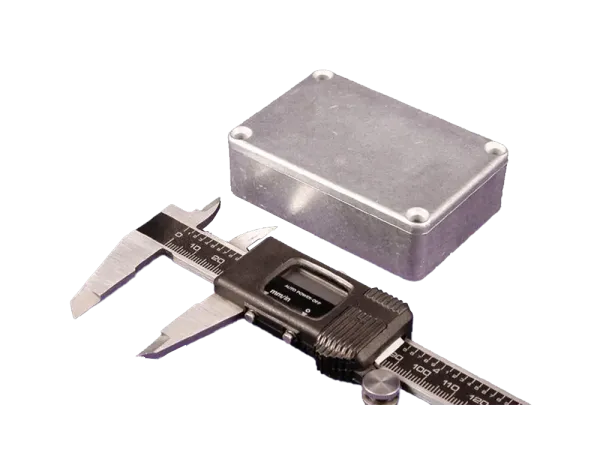

Hammond Diecast 1550C - 115 x 90 x 51 mm

•     4 x T-Nut M4
•     4 x Countersunk screw M4x25 mm, nickel-plated

TT Selection: Balanced
Both systems with balanced gain

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

The newest member in the JJ family of ECC83/12AX7 tubes is the JJ ECC83MG. The MG is a 12AX7 with a bit lower amplification than a standard 12AX7. Our measurements show that the difference is small, but the new tube sounds more linear than the standard JJ 12AX7, and in amps produces a milder, gentler sound. The mechanical construction shows that it is not just another minor variation of the normal JJ 12AX7. The new tube has longer plates.
The JJ ECC83MG is interesting for low and medium gain amplifiers, as well as for audio, where a too hot amp needs to be tamed; as well as an alternative to a 12AY7.

Files:

• Datasheet

• Color: silver
• Length: 50 mm
• Including Base and Shield

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial
