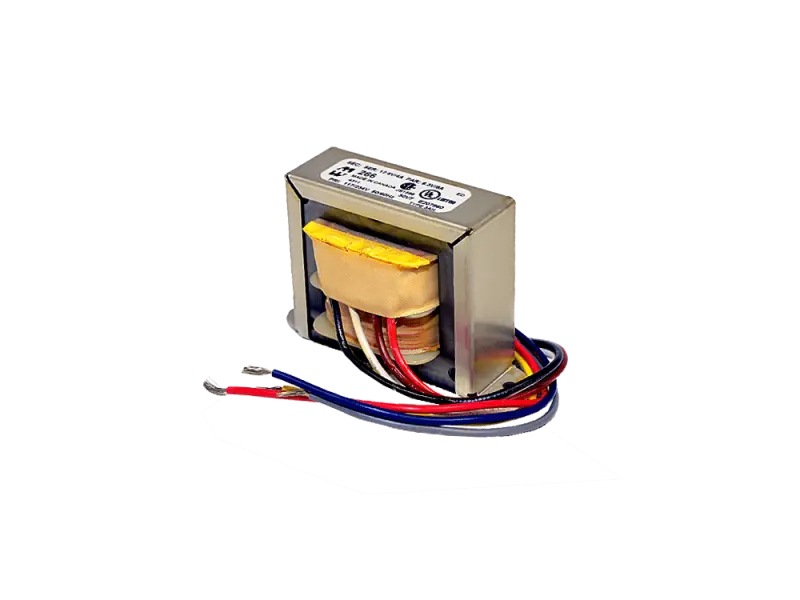

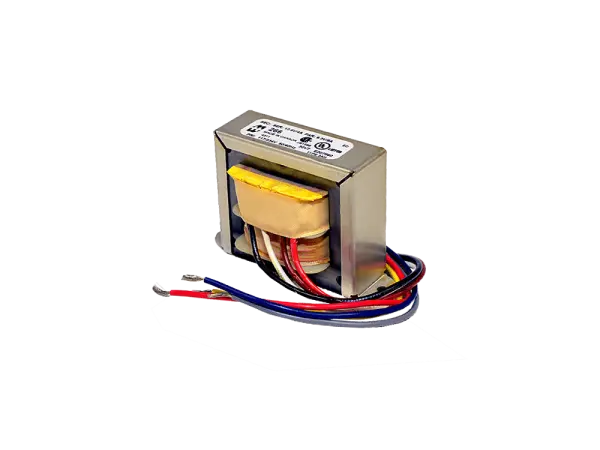

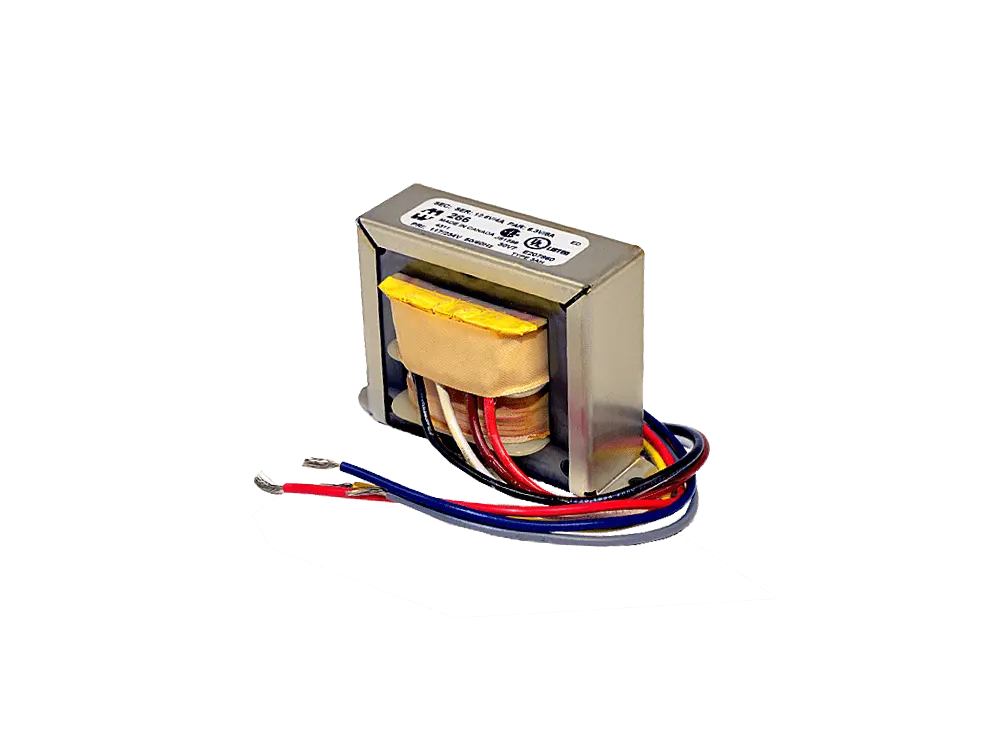

Hammond 266N12 50,4 VA

Description

Power: 50,4 VA
Primary: 117 / 234 V AC 50/60 HZ
Secondary Series (C.T.): 12,6 V @ 4 A
Secondary Parallel: 6,3 V @ 8 A

Files:

Datasheet

Manufacturer

Herstellerinformationen | Manufacturer Information
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. N.
Guelph, Ontario
Canada N1H 1E5
https://www.hammondmfg.com

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de

Hammond Manufacturing is a renowned manufacturer of electrical and electronic products based in Canada. The company was founded in 1917 and has since established a reputation for producing high-quality enclosures, transformers, electronic components, and other device components.

Hammond Mfg is distinguished by its many years of experience, innovative products, and rigorous quality controls. Hammond's products are used in a variety of industries, including electronics, telecommunications, medical technology, industrial automation, and consumer electronics.

Tube-Town has been working with Hammond Mfg for decades and is a distributor for all types of transformers, chokes, and reactors, with a focus on tube technology, as well as enclosures and chassis.
