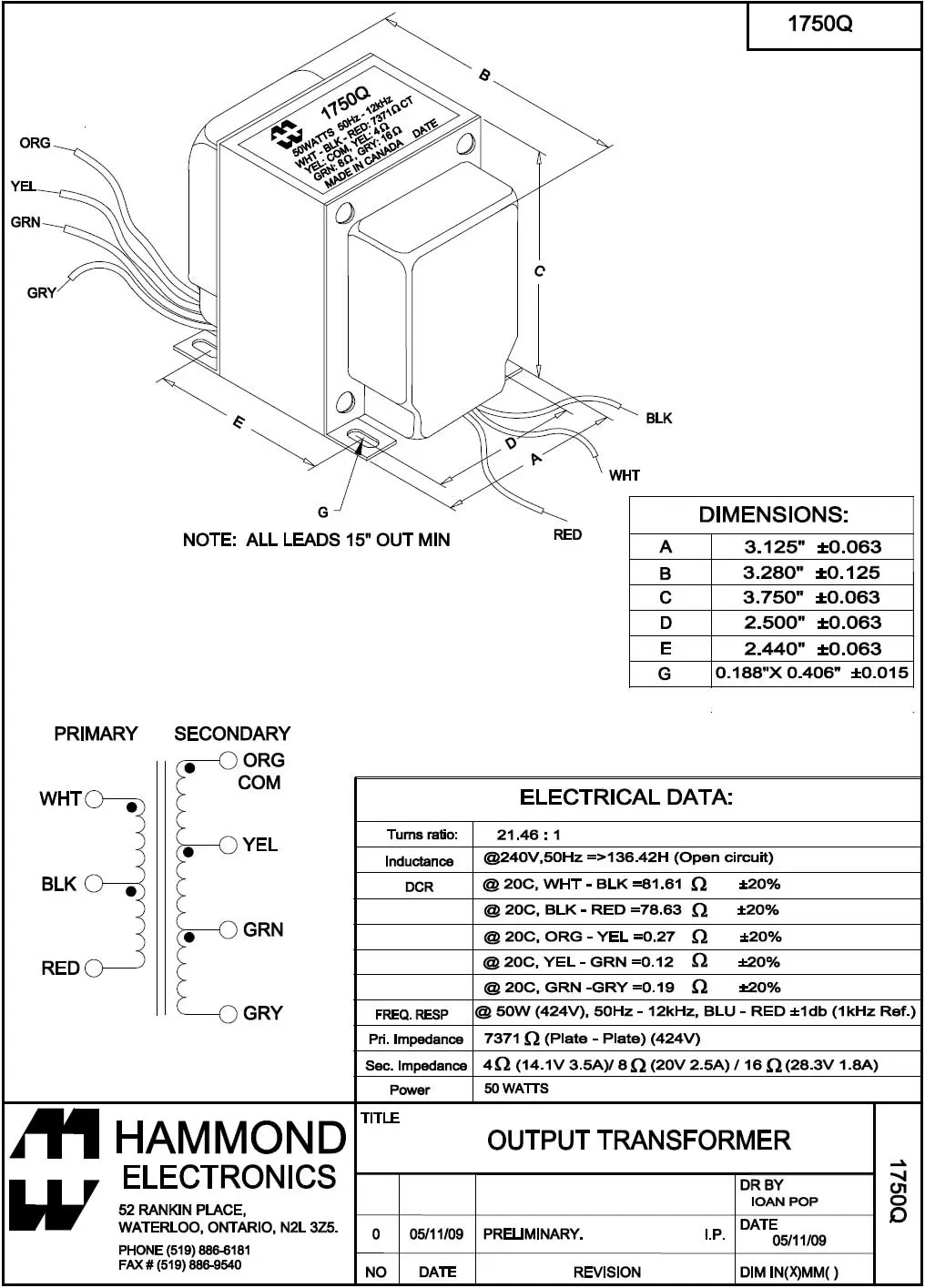

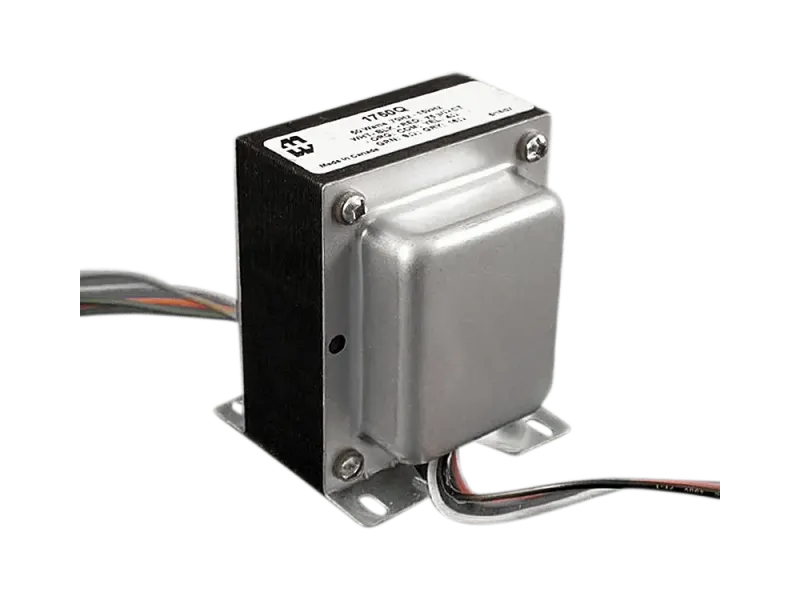

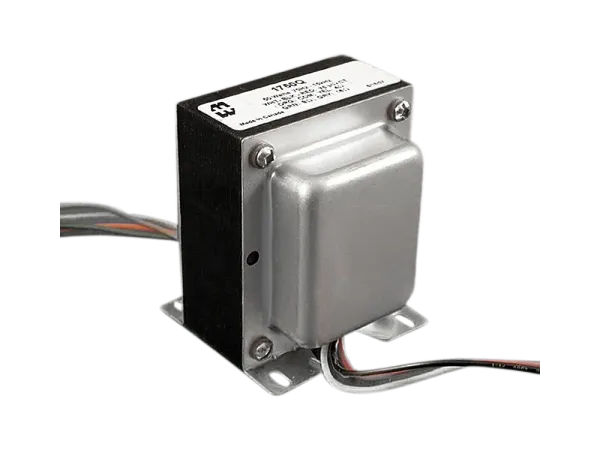

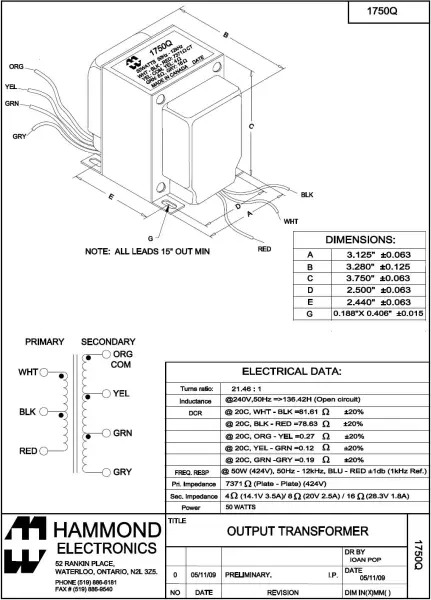

Hammond 1750Q Outputtransformer for Marshall JTM 45/50 Watt

• Powertransformer for Vibrolux, Vibrolux Reverb, Tremolux
• Fender Part Number: 125P26A, 022723, 036483
• 291CEX transformer uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.
• Pri: 240V 50 Hz
• Sec.1: 650 VCT @ 207mA
• Sec.2: 5 VCT @ 3 A
• Sec.3: 6.3 VCT @ 4 A

Files:

• Datasheet

Bracket for capacitors

• 2-piece, with screws
• d = 40 mm

• Type: Cancap
• Capacitance: 40 + 20 + 20 + 20 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 40 mm x 50 mm
• Termination Style: radial, solder-lugs

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

• 2+1 Solder lugs
• lugs brass, tinned

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 7 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Power: 141 W
• Sec. 1: 275-0-275 V @ 173 mA
• Sec. 2: 5 V CT @ 3 A
• Sec. 3: 6,3 V CT @ 5 A

Files:

• Datasheet
