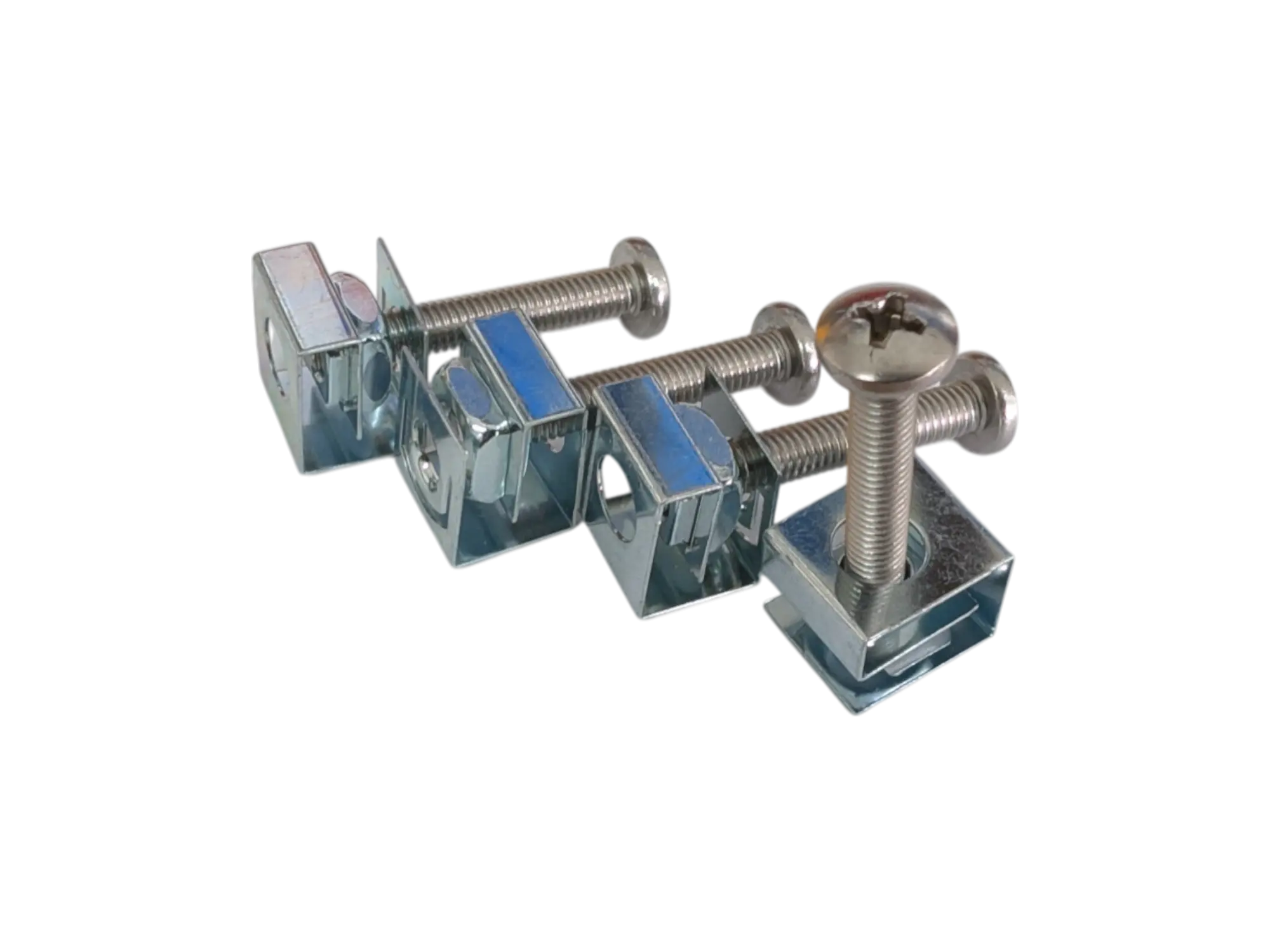

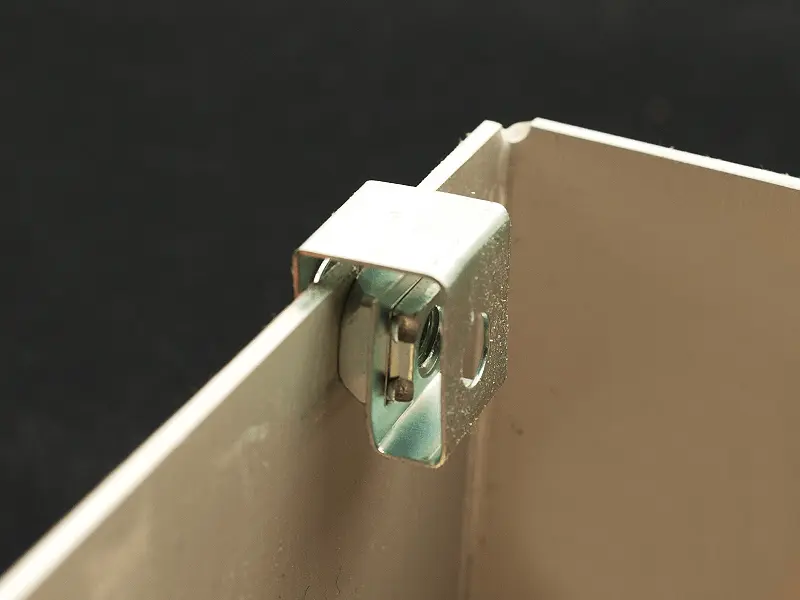

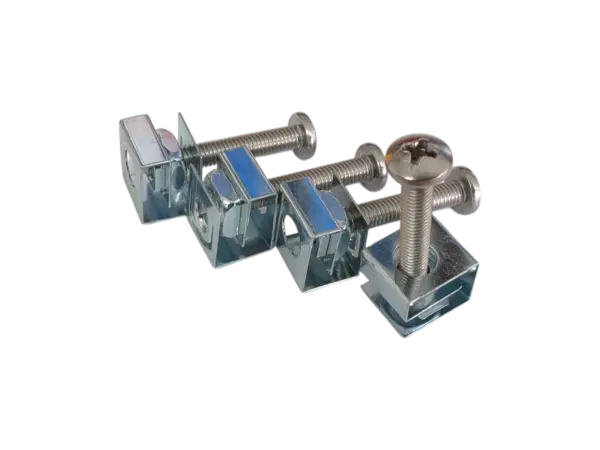

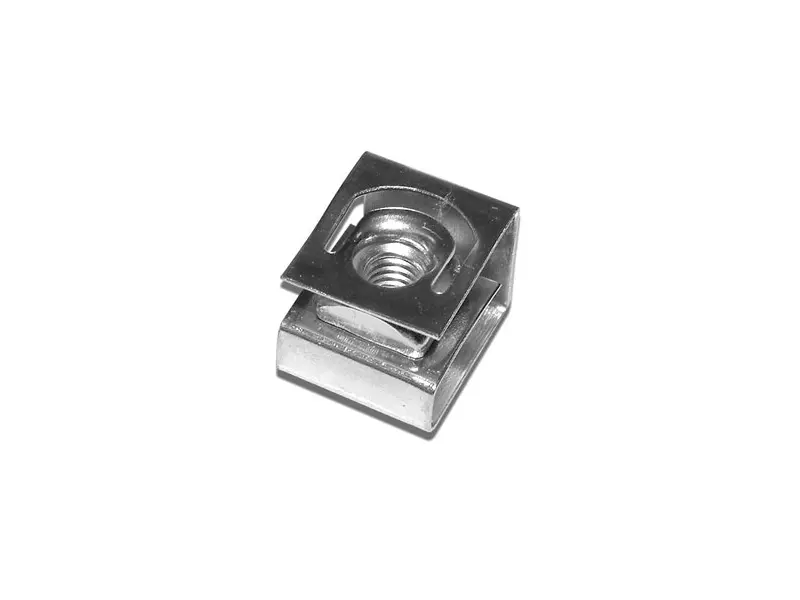

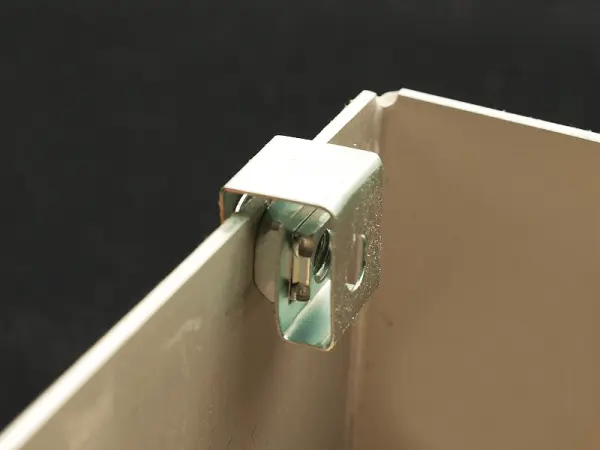

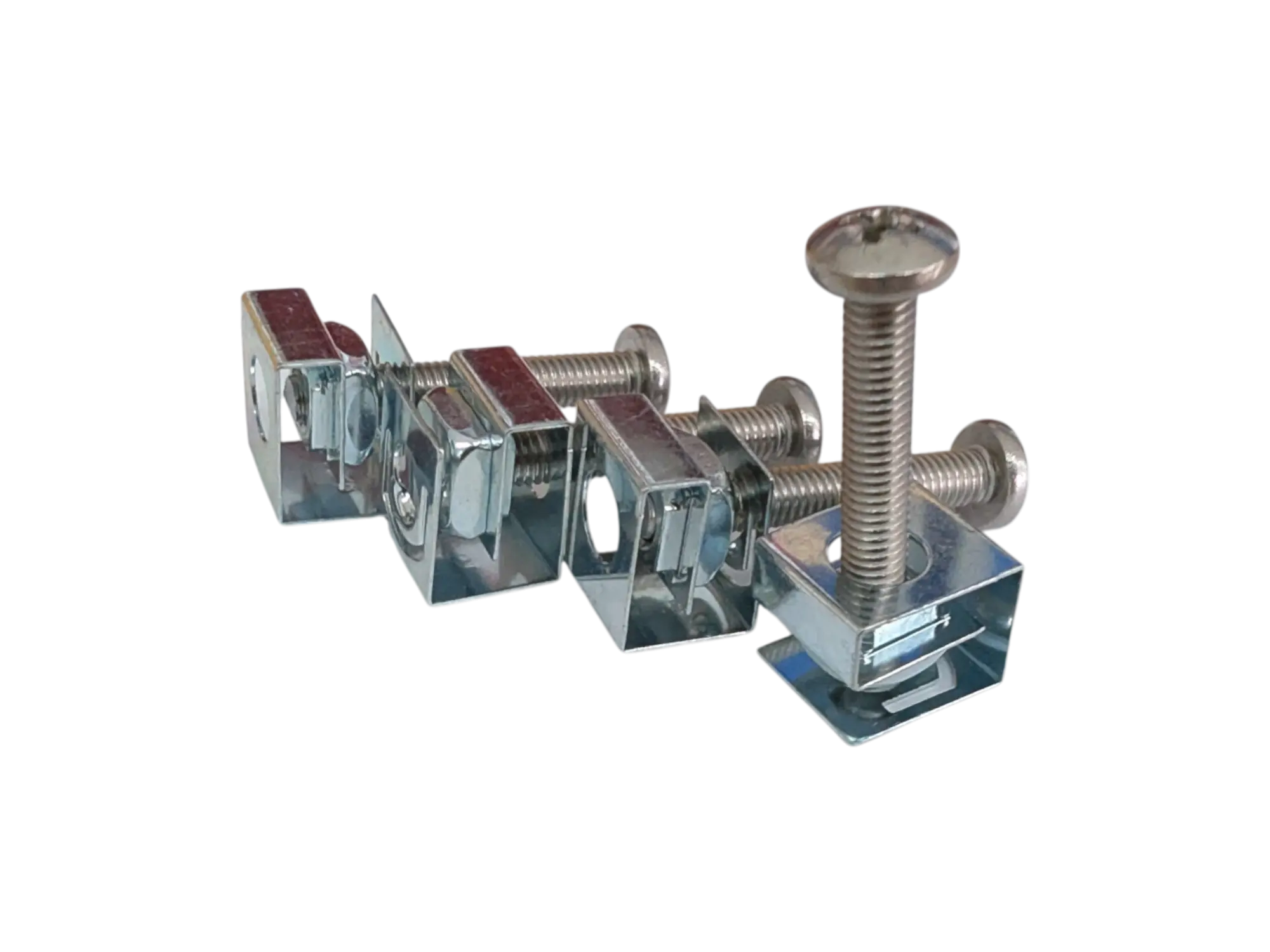

Hammond 1421NP Clip Cagenut, incl. screw, Set of 4

The Belfast 820 provides players and listeners with a well-tailored and satisfyingly clear response. This model gives your tone a defined contour⁠—open and present lows, soft mids, and glassy/articulate highs—that will make your lead and solo lines soar.

Upgrade your 8" guitar speaker cabinet with this high-sensitivity driver, combining a powerful ferrite magnet motor, a 1" copper voice coil, a paper composite cone, a pair of dual terminals for easy connectivity and installation, with a sturdy steel basket to hold it all in place.

British tone guitar speaker

• 8" (203 mm) steel basket diameter
• 20 watts, 4 ohm, 97 dB SPL
• 1" copper voice coil, Kraft paper former
• 10 oz ferrite magnet
• Paper composite cone
• Size, Nominal (inch & mm): 8" (203 mm)
• RoHS Compliant: Yes
• Nominal Impedance (Z) (Ω): 4
• Rated Power IEC268-5 (W): 20 Watts
• Rated Impedance (Ω): 4
• Continuous Power (W): 20
• Program Power (W): 40
• Frequency Range (Hz): 88 - 11,000
• Sensitivity (dB SPL) ¹: 97
• Resonant Frequency (Fs) (Hz): 155
• DC Resistance (Re) (Ω): 3.4
• Voice Coil Inductance (Le) (mH): 0.12
• Mechanical Q Factor (Qms): 15.49
• Electrical Q Factor (Qes): 1.77
• Total Q Factor (Qts): 1.59
• Mechanical Resistance (Rms) (kg/s): 0.58
• Compliance Equivalent Volume (Vas) (L): 8.31
• Suspension Compliance (Cms) (mm/N): 0.11
• Surface Area of Diaphragm (Sd) (cm²): 226.98
• Moving Mass (Mms) (gm): 9.22
• Magnetic Gap Height (mm): 6.0
• Coil Winding Height (mm): 6.35
• Motor Force Factor (BL) (T•M): 4.17
• Efficiency (η₀) (%): 1.69
• Efficiency Bandwidth Product (EBP) (Fs/Qes): 87.88
• Basket Type: Stamped steel with black powder coating
• Terminal Size (mm): 5.2 x 0.5
• Voice Coil Diameter (mm): 25.4
• Voice Coil Wire Material: copper
• Voice Coil Former Material: Kraft paper
• Voice Coil Winding Style: Single Layer
• Magnet Material: Ferrite
• Magnet Weight (g): 283.5
• Cone Body Material: Paper composite
• Dust Cap Material: Paper
• Spider Material: Cotton
• Net Weight (kg): 1.02

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

In collaboration with Howlin' Amps: Dumble-Style ODS 50 All-Tube Guitar-Amp Kit.
More information about this kit and and assembly instructions can be found on the project page and don't forget to check the Promo-Video on YouTube

This parts kit includes all the parts to build the Howlin' Amps Dumble ODS 50 including chassis, faceplate and knobs.
NOT included is a headshell.

Please note, very important and is really meant like this: To build the amplifier you need electrical engineering knowledge, experience with high voltages, as well as reading and understanding schematics and handling measuring instruments.
There is no step-by-step guide for beginners. The circuit and layout plan contains all relevant information

You do not want to build the amp by yourself ? This kit can also be delivered ready built and tested. If you are interested, please contact us...

• Rubber foot with steel insert
• Size: d = 38 mm, h = 20 mm
• Pack of 4
• Screws included

Case Handle Fender-Style, imitation leather

• Length: ca. 300 mm
• Color: black
• Mounting hardware: Screws and t-nuts included
