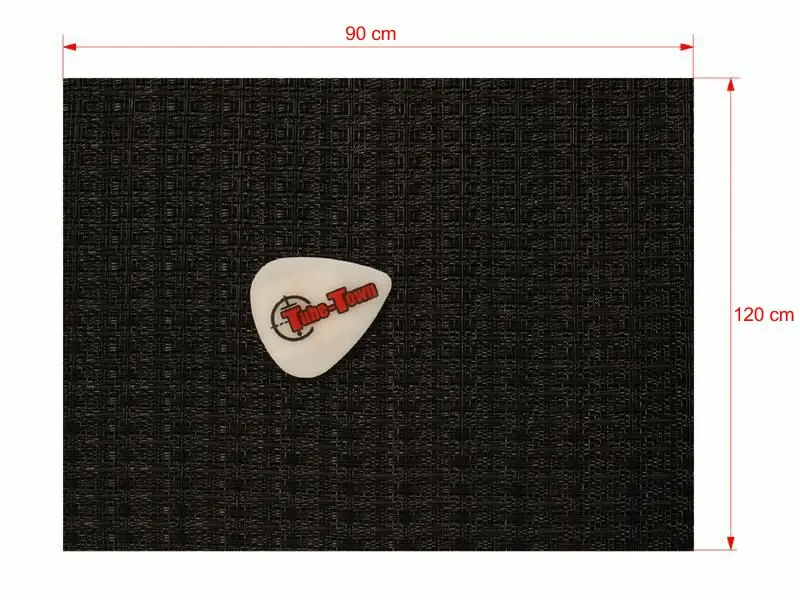

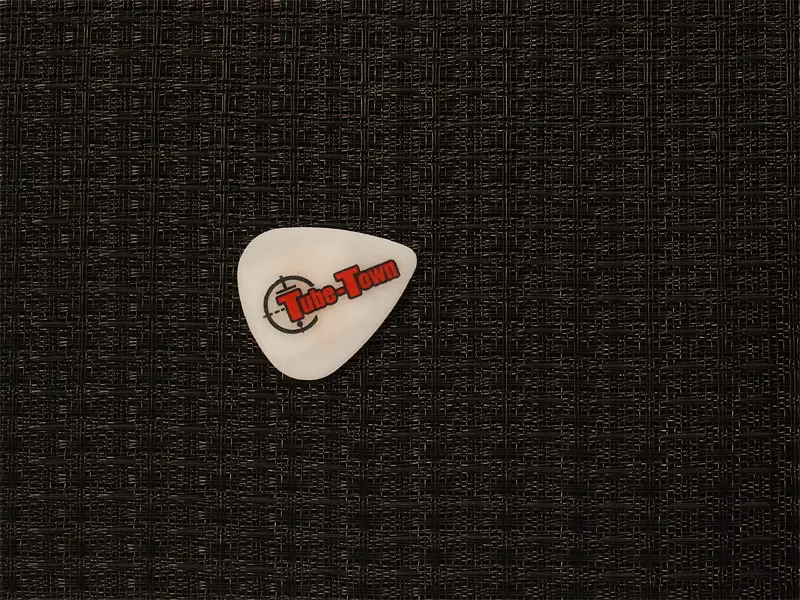

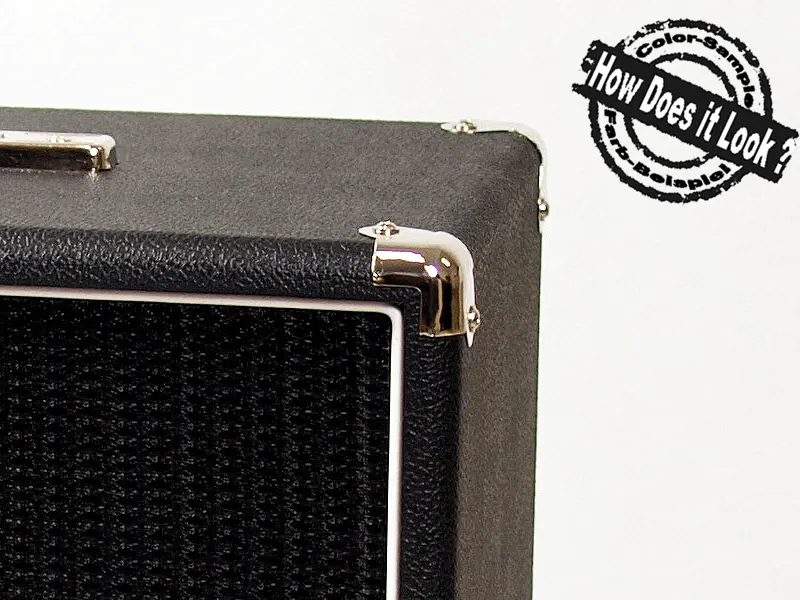

Grillcloth Fender Black - 120 x 90 cm

NL4MPXX

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.

Features & Benefits

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: >0.1 GΩ (after dampheat)
• Rated current per contact: 25 A rms continuous (audio rating signicantly higher, depending on signal)
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an AC mains or power supply connector!
• Lifetime: > 5000 mating cycles
• Termination: 3/16" (at tabs (e.g. NLFASTON)
• Locking device: Quick Lock
• Chassis shape: D
• Layout standard hole position, thru holes

Files:

• Datasheet

• Audio: 120 W (RMS)
• Pri.: 1900 CT Ohm
• Max. DC per Side: 403 mA
• Sec.: 4-8-16 Ohm

Width ca. 120 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select DHL or FedEx as method of shipping  we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

• Threading: 9/16 - 24

4 tubes, matched as quad

Very credible 6550 so far.
We recommend this 6550 for bass amps which are working with 6550 tubes, especially Ampegs.

Files:

• Datasheet

• Output Transformer 125A29A / 022889 Push-Pull
• for Dual Showman, Twin Reverb
• Pri: 2000 Ohm / CT
• Sec: 4,8,16 Ohm
• Power: 100 Watt

Files:

• Datasheet

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Type: Film trimmers
•   horizontal, 240°
• Power Rating: 0,1 W linear
• Voltage Rating: max. 200 VDC
• Ø: 10,3 mm
