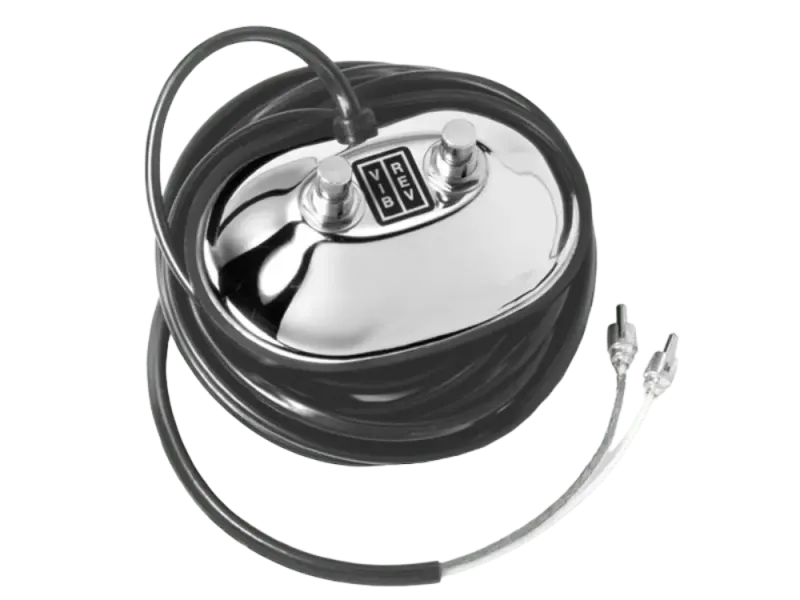

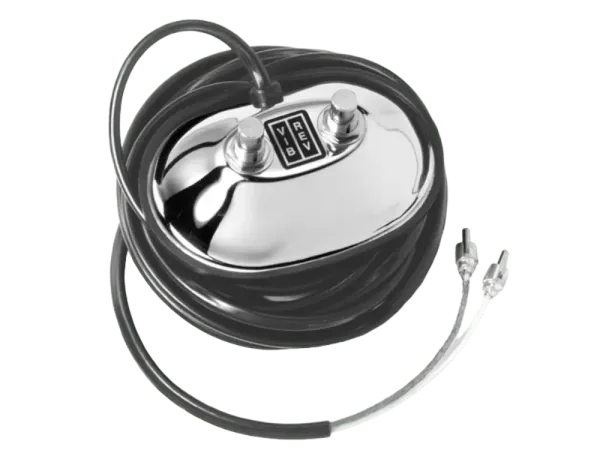

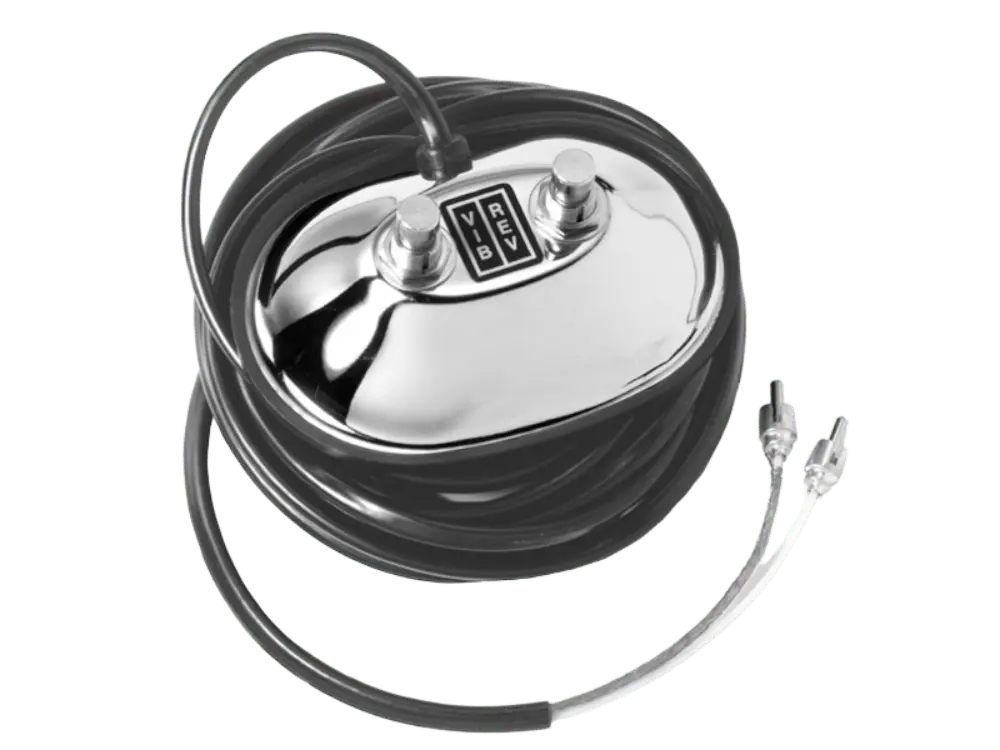

Footswitch Fender® Vintage-Style, 2-Button, chrome

• Mounting hole distance around 128 mm
• Large Chrome straps
• length around 5-5/8" (14 cm) end to end
• mounting screws included
• For Twin Reverb®, Prosonic™, Vibrosonic, Vibro-King®

• Choke for Fender 125C1A & 022699
• Bandmaster, Dual Showman, Pro Reverb, Twin Super
• 4 H

Files:

• Datasheet

4 tubes, matched as quad

Designed to the exacting specifications of the Philips 6CA7. The 6CA7EH is built to withstand today's high-gain amps while still retaining the detailed tone and component integrity of the original.

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 6,3 mm x 32 mm
• Pack of 10

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown
