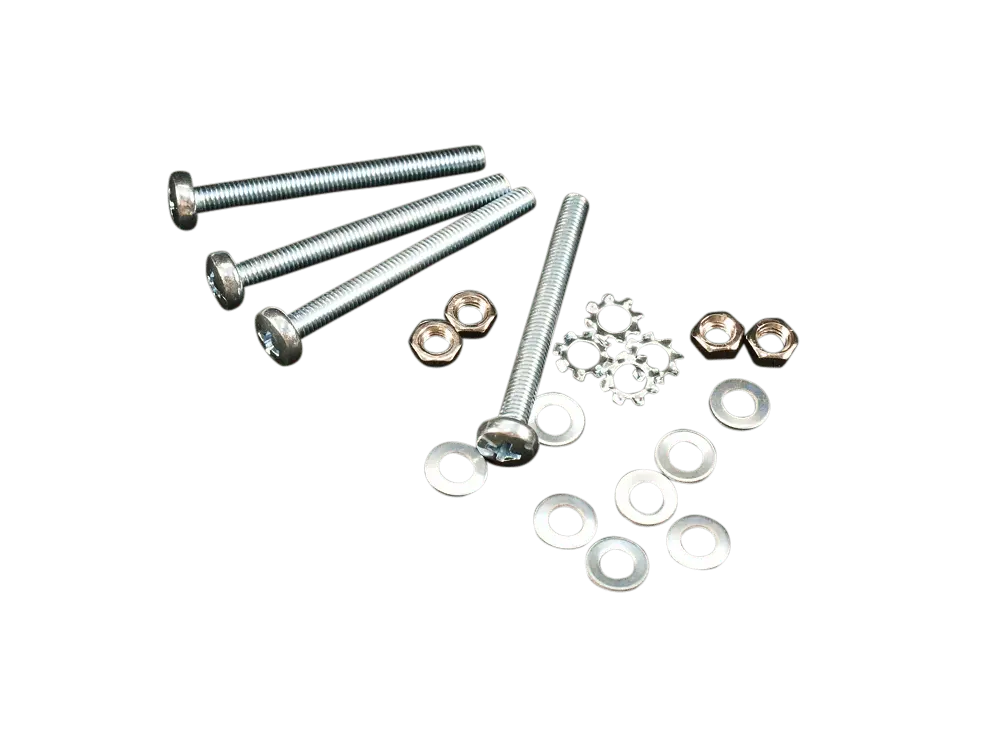

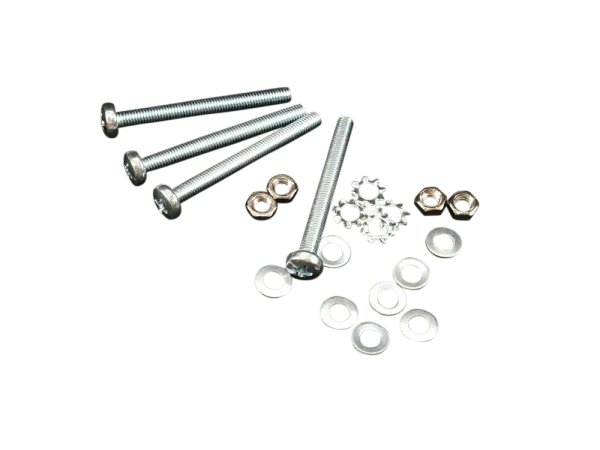

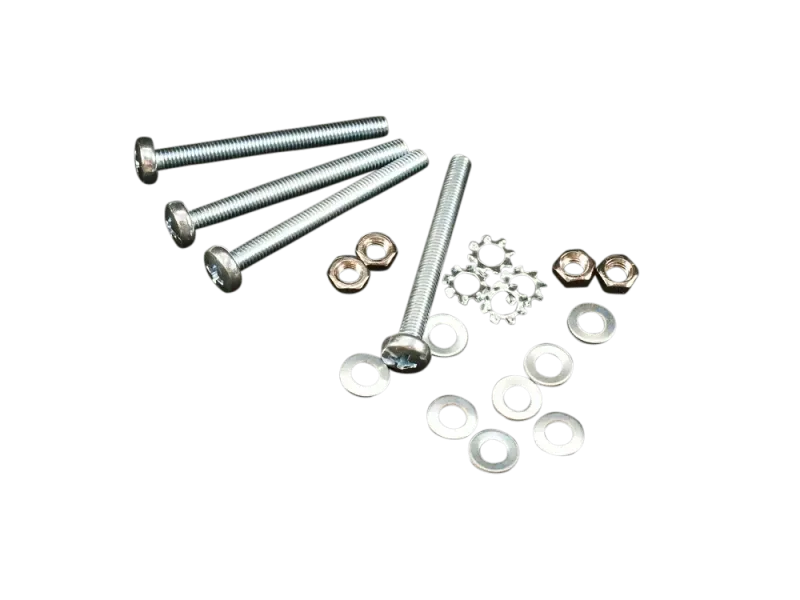

Fixing screw set for Transformers, M5*50 mm

Output-Transformer Push-Pull
for JCM900 / 50 Watt
Pri: 3400 Ohm / CT
Sec: 2, 4, 8, 16 Ohm
Power: 50 Watt

Files:

• Datasheet

Output transformer Push-Pull
for JTM30 and JTM60, drop in replacement for Drake 292-772

• Pri: 6000 Ohm / CT
• Sec: 8, 16 Ohm
• Power: 30 Watt

Files:

• Datasheet

• Powertransformer for JTM30

Files:

• Datasheet

• VOX Style Powertransformer for AC15
• Pri: 2 x 120V 50/60 Hz (120/240 V)
• Sec.1: 610 VCT @ 120mA
• Sec.2: 5.1 VCT @ 3 A
• Sec.3: 6.66 VCT @ 4.0 A

Files:

• Datasheet

• Self tap screw
• flange head
• DIN 968
• 4.5 x 19 mm, black
• Extra Flat - ideal for the mounting of the corners

• Self tap screw
• flange head
• 4.2 x 16 mm, black
• Extra Flat - ideal for the mounting of the corners
• Pack with 25 pcs.

• Self tap screw
• flange head
• DIN 968
• 3.4 x 16 mm, black
• Extra Flat - ideal for the mounting of the corners

• Length: 1 m
• Color: black
• 1st Jack: Mono, 6,3 mm Jack - Neutrik NP2X-BAG
• 2nd Jack: Mono, 6,3 mm Jack - Neutrik NP2X-BAG
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

• Length: 100 mm
• Width: 2,5 mm
• color: black
• Set of 100 pcs

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

• Powertransformer JCM 800 / JMP 50
• Pri: 120/220/240V 50/60 Hz
• Sec.1: 690 VCT @ 150 mA
• Sec.2: 6.3 VCT @ 5 A

Files:

• Datasheet
