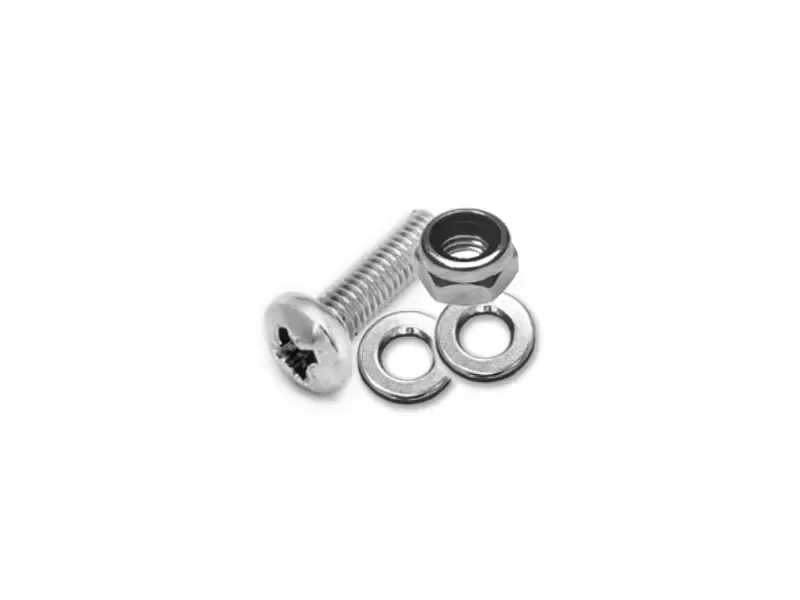

Fixing screw set for Torodial-Transformers, M6*70 mm

• Pri: 0 - 220 - 230 - 240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
• Sec 1: 350 V @ 0,4 A (rot-grün/red-green)
• Sec 2: 350 V @ 0,4 A (weiß-blau/white-blue)
• Sec 3: 50 V @ 0,1 A (schwarz-schwarz/black-black)
• Sec 4: 50 V @ 0,1 A (braun-braun/brown-brown)
• Sec 5: 6,3 V @ 4,0 A (orange-orange)
• Sec 6: 6,3 V @ 4,0 A (lila-lila/purple-purple)
•
• freie Enden / long leads ca. 200 mm
• 140 x 60  mm
•
• 50/60 Hz / EN 61558

• Pri: 230 V (blau-rot/blue-red)
• Sec 1: 330 V @ 0,5 A (rot-rot / red-red)
• Sec 2: 15 V @ 1,5 A (weiss-schwarz / white - black)
• Sec 3: 15 V @ 1,5 A ( schwarz - weiss ( black - white)
• Sec 4: 3,4 V @ 9 A ( blau - grau / blue - grey)
• Sec 5: 3,4 V @ 9,0 A (grau - blau / grey - blue)
• Sec 6: 100 V @ 0,01 A (orange - orange)
•
• freie Enden / long leads ca. 250 mm
• Restlochverguss
• 50/60Hz  EN 61558
• d = 140 mm h = 58 mm

• Pri: 0-220-230-240 V (blau-schwarz-orange-gelb / blue-black-orange-yellow)
• Sec 1: 250 V @ 0,4 A (rot-grün / red-green)
• Sec 2: 250 V @ 0,4 A (weiss-blau / white-blue)
• Sec 3: 50 V @ 0,1 A ( braun - braun / brown - brown)
• Sec 4: 50 V @ 0,1 A (schwarz-schwarz / black - black)
• Sec 5: 6,3 V @ 4,0 A (lila - lila / purple - purple)
• Sec 6: 6,3 V @ 4,0 A (orange - orange)
• Leads ca. 200 mm
• Potted
• Size: ca. d = 140 mm, h = 65 mm

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

• Pri: 0-115-220-230-240 V (schwarz-grün-gelb-lila-rot / black-green-yellow-purple-red)
• Sec1: 300 V @ 0,1 A (rot / red)
• Sec2: 6,3 V @ 2 A (grün / green)
• Sec3: 12,6 V @ 1 A (blau / blue)
• long leads ca 200 mm
• Size ca. h=38mm d=90mm
• 50/60 Hz EN 61558

Screw set for Torodial-Transformers

1 x Screw M5*30 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t27

Screw set for Torodial-Transformers

1 x Screw M5*40 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t30
tt-t50

Screw set for Torodial-Transformers

1 x Screw M5*50 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t135
tt-t139

Screw set for Torodial-Transformers

1 x Screw M5*60 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t106
tt-t107
tt-t185
tt-t244

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 30 mm x 49 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 10 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 220 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 15 mm x 20 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years
