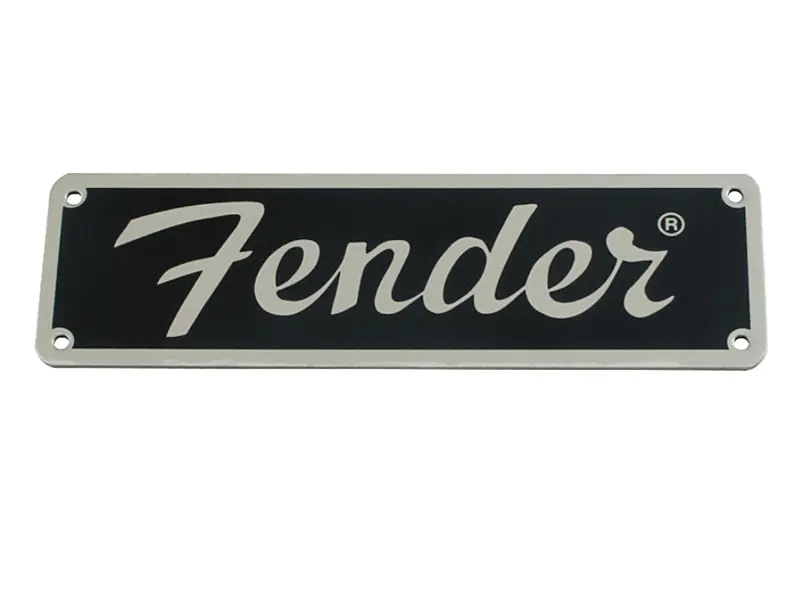

Fender Logo Tweed Amp

Faceplate for TT Chassis-039 - 5F1 - Version 2024 new Material

• Color #C14 silver brushed / black
• Material: 1,6 mm Transply

Files:

• Template

Set of componentes for building the TT 5F1 - V2020 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Chassis
• Transformers (Hammond 1760C, TT-5E3-VPO)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Headshell or Combo

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

The "Living legends" of Rock and Roll guitar sounds are back! Original designs of the late 40's and early 50's have been recreated using many of the original parts suppliers. Highly efficient AlNiCo magnets and seamed paper cones are the foundation for the famous JENSEN® Sound. JENSEN® "P" Series Vintage AlNiCo magnet speakers represent an important contribution to the paste, present and, no doubt, the future of rock and roll music. They are loved by generations of guitarists around the world.

 Technical Details:

• Size: 8"
• Impedance: 8 Ohm
• Rated Power (RMS): 25 W
• Sensitivity @ 1 W, 1 m:    92,5 dB
• Resonance Frequency  fs: 130 Hz
• Bell: No Bell

Files:

• Datasheet
