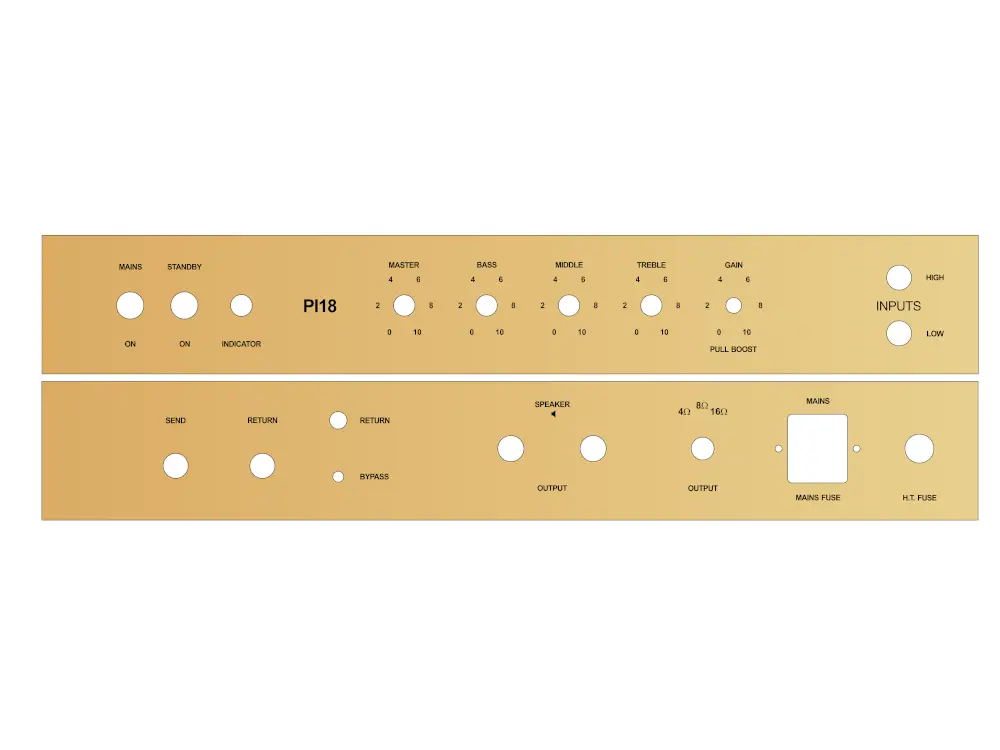

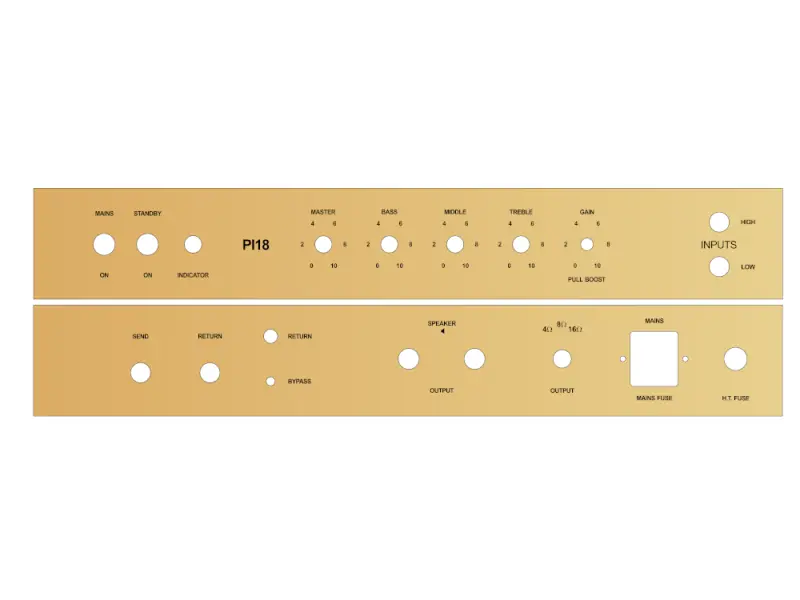

Faceplate for TT Amp-Kit PI18 - Gold GLOSSY

TT PI18 - An All-Tube 18 Watt Guitar Amp Kit, based on the Pink Taco.
Version 2020, Turretboard Version 2020, with the following additions and extensions compared to the previous version:

• The kit contains components for two different tone controls: Tight (British Voicing) and FAT (Original Voicing).
• Optimizations in the area of master potentiometers and the circuit design of the first gain stage
• Optimizations of the boost function
• Noise-Reduction for Higain & Hum Suppression
• Easier to build then the previos kit

Set of componentes for building the TT PI18 Guitar Amp.
Please visit the >>Project page for more infos about the amp.
We will send the circuit and layout plan of the kit together with the invoice by email after the delivery.

INCLUDED:

• Outputtransformer Tube-Town tt-ma18-ot
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since 25. Oct. 2019)
• FX-Loop
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis
• Turrets ( you need 4 x 25 pcs. )
• Knobs
• Faceplate
• Headshell

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Files:

• Application Notes Turret-PCB

TT PI18 - An All-Tube 18 Watt Guitar Amp Kit, based on the Pink Taco.
Version 2020, Turretboard Version 2020, with the following additions and extensions compared to the previous version:

• The kit contains components for two different tone controls: Tight (British Voicing) and FAT (Original Voicing).
• Optimizations in the area of master potentiometers and the circuit design of the first gain stage
• Optimizations of the boost function
• Noise-Reduction for Higain & Hum Suppression
• Easier to build then the previos kit

Set of componentes for building the TT PI18 Guitar Amp.
Please visit the >>Project page for more infos about the amp.
We will send the circuit and layout plan of the kit together with the invoice by email after the delivery.

INCLUDED:

• Outputtransformer Tube-Town tt-ma18-ot
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since 25. Oct. 2019)
• FX-Loop
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis
• Turrets ( you need 4 x 25 pcs. )
• Knobs
• Faceplate
• Headshell

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Files:

• Application Notes Turret-PCB

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

Files:

• Datasheet

 Pointer Knob "Classic"

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw

• Turrets
• for 2 mm Boards
• nickel-plated

TT-Chassis Aluminium - Typ 001 - Basic

• Size (Marshall Small Size):
  • Width: 430 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• WITHOUT CUTOUTS
• Made in Germany

Files

• Datasheet Drawing Version 2019 (PDF)
• Tamplate for Faceplate

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

• Type: Powerswitch, Marshall JCM Series
• Rating: 250 V AC @ 20 A
• Version: DPST, ON-OFF
• Recess: 28.5 x 23 mm, Snap-in mount
• Termination Style: solder-lugs, quick connect terminals

DC Socket, Panel Mount 5.5 x 2.1 mm

• DC female, female, panel mount
• 0.5A 30 VDC, 3 pins
• Size 5.5 x 2.1mm
• Contact Resistance: < 0.03 Ohm
• Insulation Resistance: > 100 MOhm
• Pack of 5 pcs

Connection Board for LED Footswitch

• for easy monting of the LED resistor
• LED already connected with the switch

Powerswitch for Marshall JCM Series

• lighted red
• 20 A / 125 V AC
• 16 A / 250 V AC
• DPST ON-OFF
• Recess: 28.5 x 22 mm
• solder-lugs and quick connect terminals

1/4" stereo jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet
