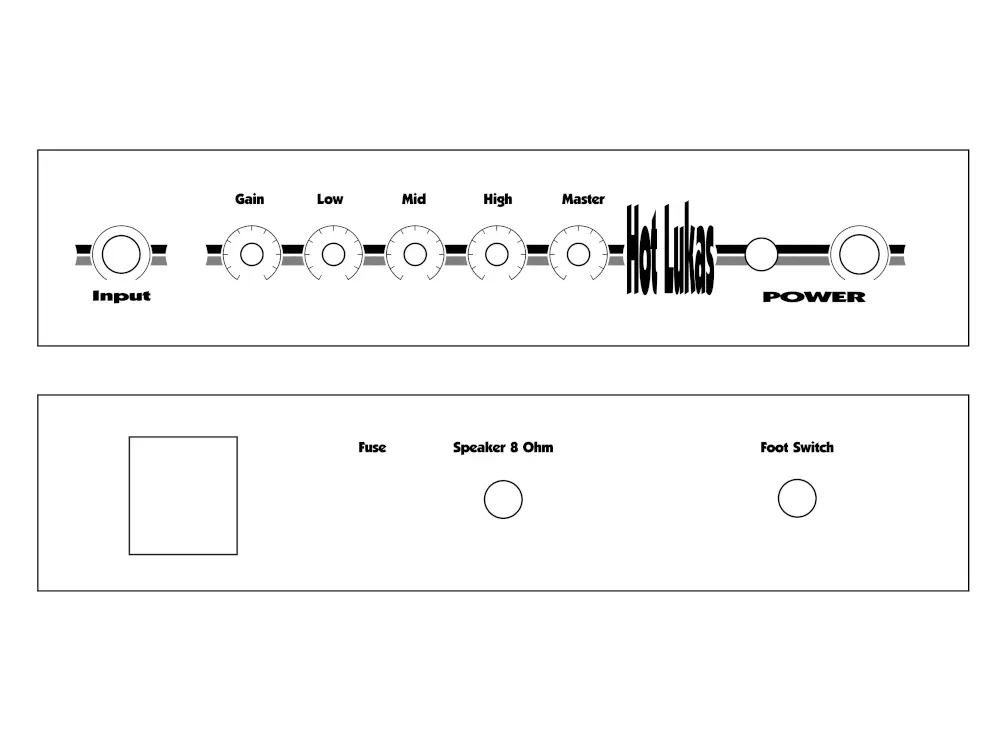

Faceplate for TT Amp-Kit HotLukas - white/black

Set of componentes for building the TT HotLukas. Please visit the >>Project page for more infos about the amp - Version 2023.

INCLUDED:

• Mains Transformer universal for 120-230-240 V mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (2 x 12AX7, 1 x ECC99)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

Set of componentes for building the TT HotLukas. Please visit the >>Project page for more infos about the amp - Version 2023.

INCLUDED:

• Mains Transformer universal for 120-230-240 V mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (2 x 12AX7, 1 x ECC99)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

Dish - Punched for 2 jacks. Material: 1.2 mm Steel, black powder coated.

Cutout 65 x 106 mm. Fixing holes Ø 5 mm. Weight: 125g

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

• Power Jack with built-infuse holders 5.0 x 20 mm
• Housing: polyamide
• for snap-on mounting
• Double-pole + protective ground 10 A / 250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

Alu chassis for TT66-Mk2 amp kit and similar amps.
2019-Version with the same size as the 18 Watts Smallhead Chassis. Fits into all of our Smallheads, 18Watt-Heads and CH001 headcabs.

• Size: 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• Protcetion Foil Outside

Cliff 1160 mono jack

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

• w/mounting bracket
• solder lugs
• for 12AX7, EL84 and similar

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size:
  • Ø: 20 mm
  • H: 12,5 mm
• Mounting: Set-Screw

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

TT-Cabs Headshell designed for the Spit F. amp kit

Specifications

• Size: ca. 510 x 220 x 210 mm
• Chassis-Cutout: 420 x 60 mm
• For Chassis-Size: 430 x 170 x 65 mm
• Tolex: Mesa-Style schwarz
• Hardware: black
• Piping: black
• Weight: ca. 4,5 kg
• Wood: 12 mm Birch
