Coloration : Nice warm, fat tone with a little top end bite and clarity. Very touch-sensitive with a hint of British flavor
Genre : American Rock, Blues, and Southern Rock
Specifications
- Nominal Diameter: 12 " / 304.8 mm
- Voice Coil: 2 " / 50.8 mm
- Overall diameter: 305.3 mm
- Pitch Circle Diameter: 295.4 mm
- Section Diameter: 278.6 mm
- Diameter of fixing holes: 6.4 mm
- Depth: 130 mm
- Nominal Impedance: 8 Ohm(s)
- Nominal Load Capacity: 150 W
- Sensitivity (1 W / 1 m): 99 dB

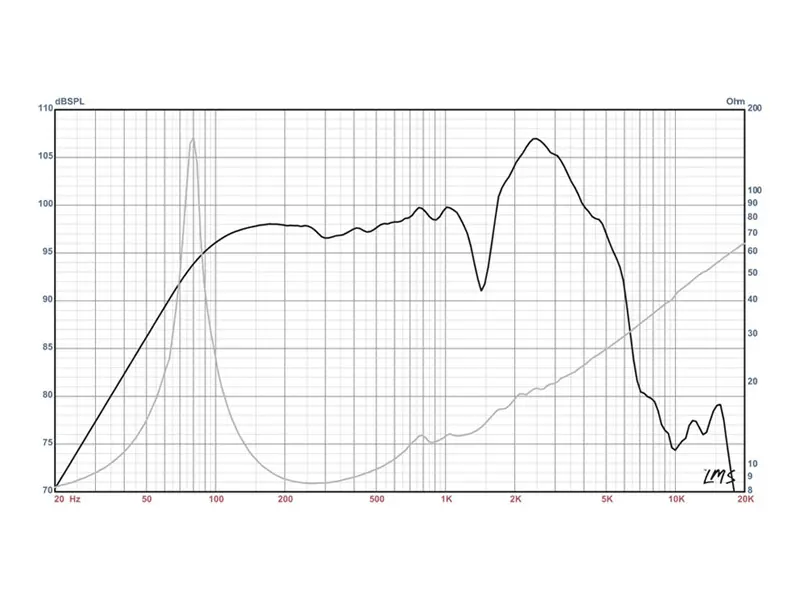

- Frequency response: 70 - 5000 Hz
- Voice Coil Material: copper
- Magnet: Ferrite
- Depth of the magnetic gap: 7.92 mm
Thiele & Small Parameter
- Fs (Resonance Frequency): 79 Hz
- Re (DC resistance): 7.3 Ohm(s)
- Qms (mechanical quality): 13.88
- Le (inductance of the voice coil): 0.54 mH
- Qes (electrical quality): 0.68
- Qts (overall quality): 0.65
- Vas (equivalent volume): 50.9
- Mms (moving mass): 31 g
- BL (power factor): 12.8 T/m
- Xmax (maximum displacement): 0.8 mm
- Cms (elasticity of the suspension): 0.13 mm/N
- Sd (membrane area): 519.5 cm²
- Weight: 4,54 kg
